AGA MRI Patient Transport Table Hydraulic with Side Guards up to 7 Tesla
MRI Patient Transport Hydraulic Table

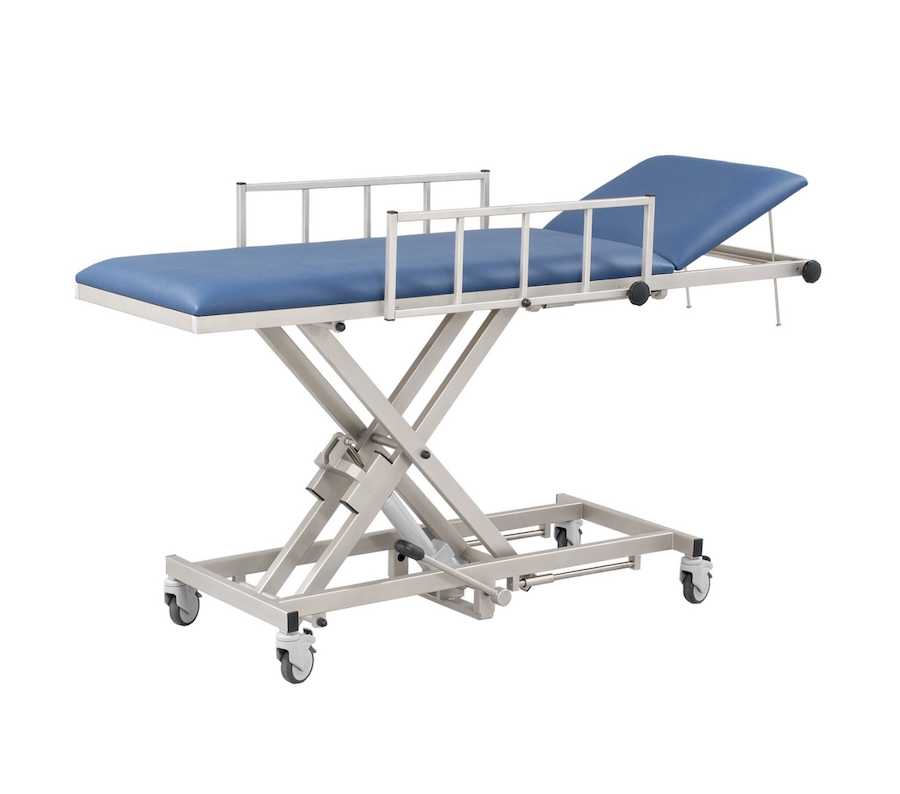

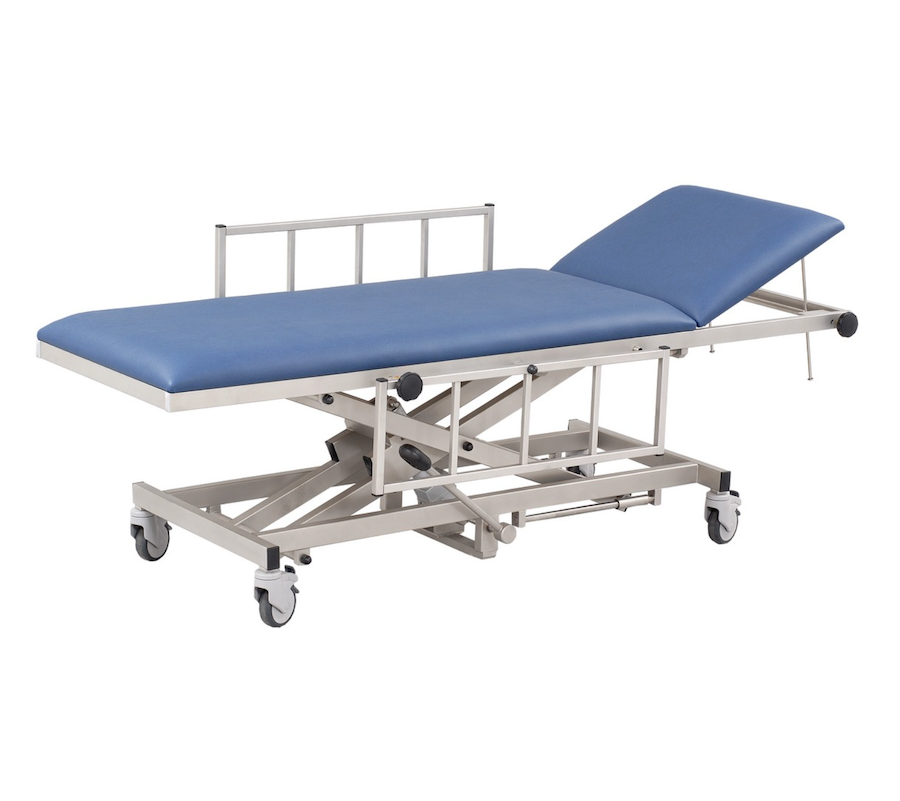

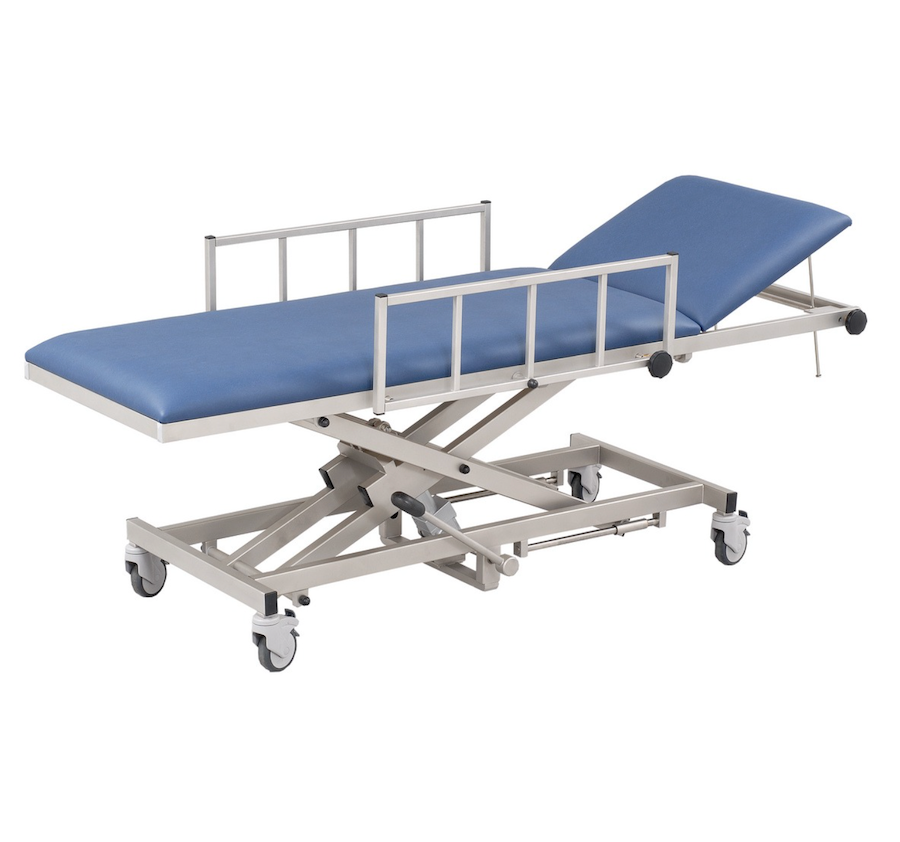

The MRI patient transport table with hydraulic height adjustment and side guards is designed for safe use in magnetic resonance environments up to 7 Tesla. It allows flexible positioning and safe transport without affecting imaging.

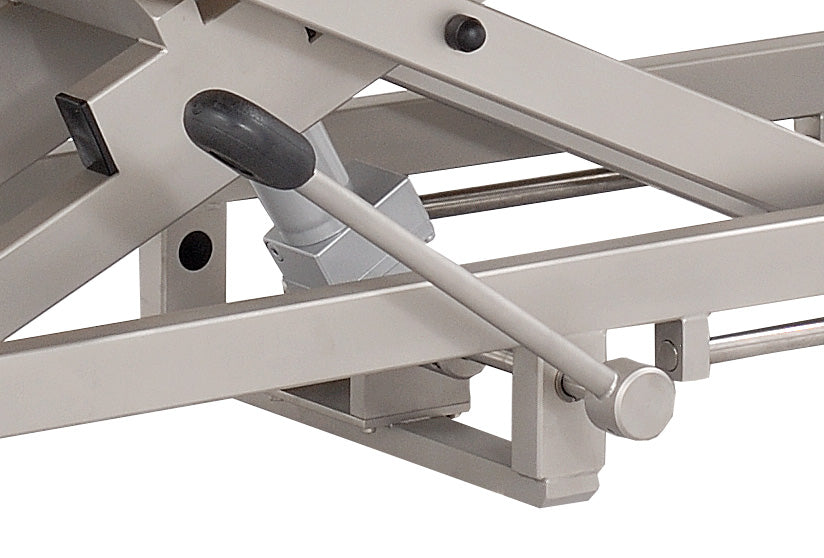

The table uses a hydraulic system operated by a foot pump, so it does not need electricity. This makes it easy to use in any area and allows smooth height adjustment to match different MRI system heights. It also helps patients get on and off more easily.
The frame is made from stainless steel with low residual magnetism, combined with aluminium and brass components. This ensures safe use near MRI systems without interference or attraction to the magnetic field.

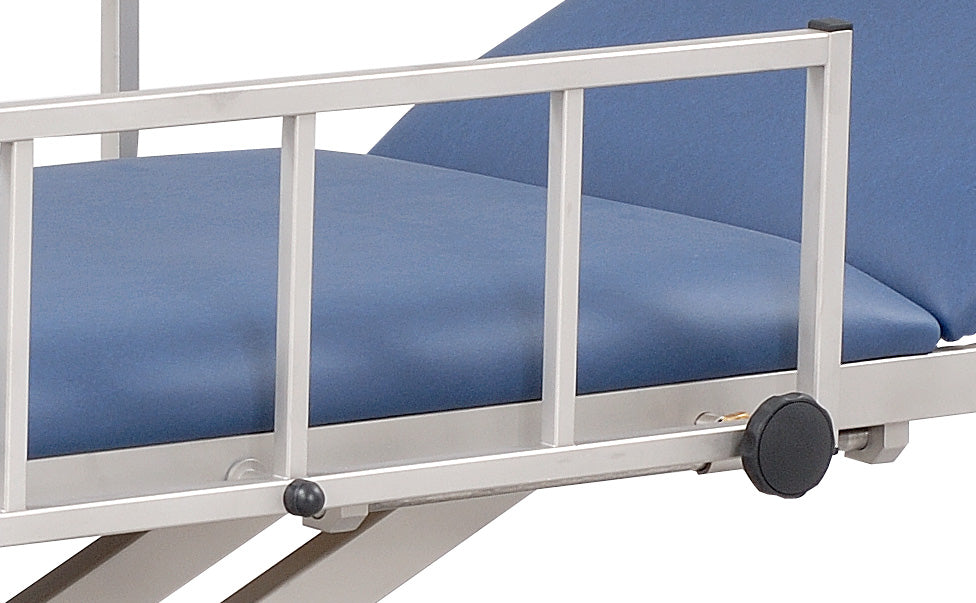

This version includes two side guards for fall protection. They can be raised or lowered using a simple pivot mechanism and locked in place, allowing safe access from both sides.
The table is stable and equipped with four swivel castors that can be fully locked. The surface has two padded sections, and the headrest can be adjusted up to 40 degrees.
Model Differences
H-AWL 3065/Y 980VA (650 mm width)
- Upholstery width: 650 mm
- Total width with side guards: 795 mm
- More compact design
H-AWL 3080/Y 980VA (800 mm width)
- Upholstery width: 800 mm
- Total width with side guards: 975 mm
- Larger patient surface
Technical Data
- MRI compatibility: up to 7 Tesla.
- Static magnetic field: ≤ 7 T.
- Maximum spatial gradient: ≤ 10 T/m.
- Length: 1,900 mm.
- Headrest / main section: 500 / 1,400 mm.
- Width: 650 mm or 800 mm.
- Total width with side guards: 795 mm or 975 mm.
- Height adjustment: 620 to 980 mm (hydraulic).
- Upholstery segments: 2 sections.
- Upholstery thickness: 64 mm.
- Headrest adjustment: up to +40°.
- Load capacity: 200 kg.
- Castors: Ø 100 mm, all lockable.
- Side guards: 800 × 250 mm, pivoting.
What is Included
- MRI patient transport table.
- 2 side guards (pivoting and lockable).
- Adjustable headrest.
- 4 swivel castors with locking function.
Important
- Table must not exceed the 10 T/m limit line when moved towards the magnet.
- Foot pump position must be specified when ordering (left or right side).
- Designed for MRI environments with low magnetic materials.
Extra
- Second foot pump available on request.
- Custom upholstery colours available on request.
- Customer supplied upholstery can be used (non returnable configuration).
See Accessories here
