KERN Motorised Test Stand - TVS 5000N240 LD - Stepper Motor - Max. force 5kN - Max. distance 210mm
KERN TVS 5000N240 LD

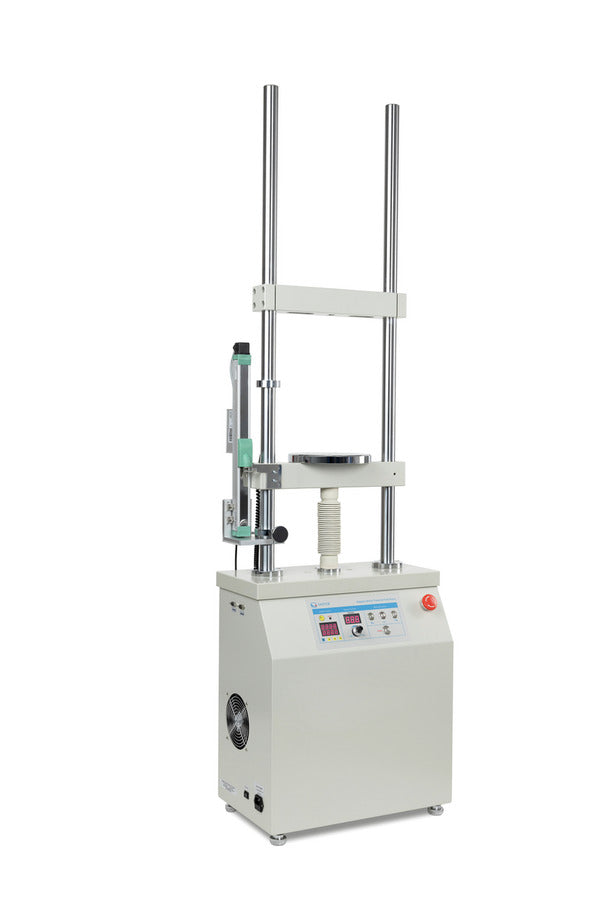

This is a high precision motorised test stand designed for both tension and compression testing. This premium model comes as a five in one package, including the stand itself, the LD length measuring system, an interface cable, AFH LD software, an AFH 12 interface converter, and mounting accessories. With this complete setup you can perform accurate testing while recording detailed force displacement diagrams directly on your PC.
The integrated LD measuring system uses a linear potentiometer, offering a maximum range of 210 mm, fine readability of 0.01 mm, and measuring accuracy of 0.5 percent of maximum load. Combined with high speed USB data transfer and the AFH software, the system delivers smooth and precise data acquisition, which is essential for laboratory work, quality control, and demanding industrial environments.
Equipped with a stepper motor, the TVS 5000N240 LD provides constant speed under any load. It allows precise testing at very low speeds with full load applied, while ensuring accurate positioning and stopping without overshoot, even at high speeds. Users can easily set and monitor displacement speed using the clear display, and electronic end switches protect the system against overtravel.
Its two column construction creates a large working area with flexible mounting options. It supports direct mounting of SAUTER devices with internal load cells up to 500 N, and external load cells from 1000 N upwards. Holders for SAUTER FH devices with external load cells are also available, making the stand adaptable to different testing needs.
Features
-
Complete five in one system with measuring device, software, and accessories.
-
Precise 210 mm measuring range with 0.01 mm readability.
-
Stepper motor ensures smooth speed control and accurate positioning.
-
Wide working area with flexible mounting options.
-
Electronic end switches for safety.
-

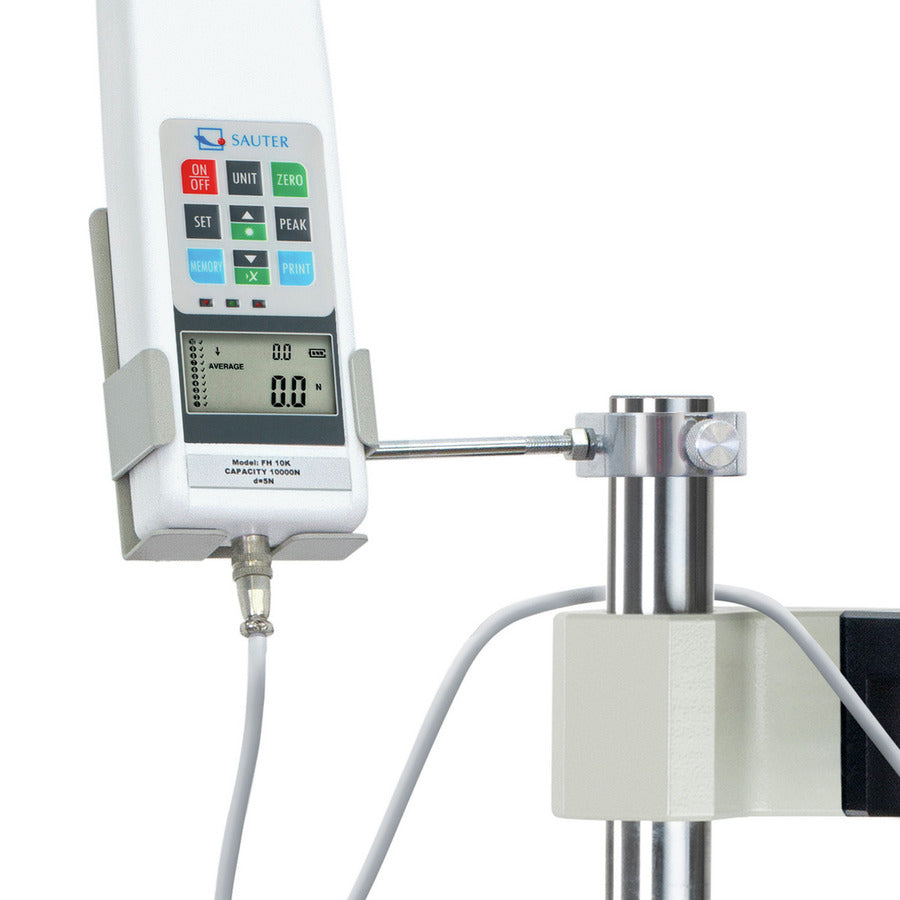

Compatible with SAUTER FC, FH, FK, and FL force measuring devices.
Technical Data
-
Maximum generated force: 5 kN.
-
Traverse distance: 210 mm.
-
Drive type: Stepper motor.
-
Length measuring device: With data interface.
-
Power supply: 230 V AC, 50 Hz.
-
Minimum transversal speed: 1 mm/min.
-
Maximum transversal speed: 240 mm/min.
-
Dimensions (W×D×H): 400×250×1550 mm.
-
Housing material: Lacquered metal.
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
