KERN Motorised Test Stand - TVO 1000N500S-LD - Electric - Max. force 1kN - Max. distance 500mm

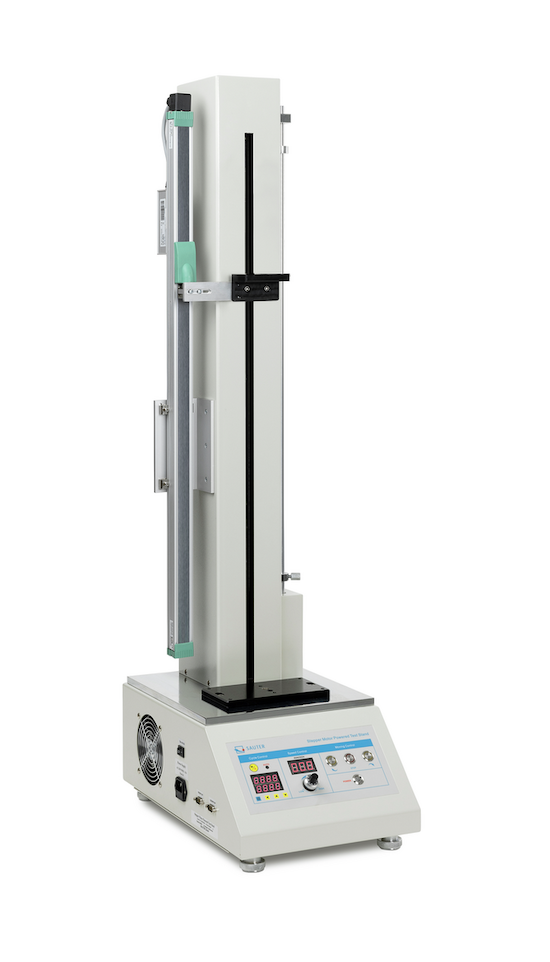

KERN TVO 1000N500S-LD
This is a compact single column motorised test stand that combines precision, reliability, and ease of use for both laboratory and industrial applications. It is designed for tension and compression force measurements up to 1 kN and provides a powerful solution for quality control, research, and training environments.
The system includes the motorised test stand, LD length measuring system, interface cable, AFH LD software, AFH 12 interface converter, and complete mounting. The LD system uses a high precision linear potentiometer that records displacement data for creating force displacement diagrams on the PC. It offers a measuring range of 500 mm with a fine readability of 0,01 mm and accuracy of 0,5 percent of maximum, ensuring reliable test documentation.
The integrated stepper motor technology gives the stand its outstanding control and flexibility. Tests can be carried out at constant speed across the full load range, even at very low speeds. The motor ensures accurate positioning, smooth acceleration, and precise stopping without overrun, which is essential for repeatable results. Speed adjustment is displayed clearly on the control panel, making operation straightforward. Both automatic and manual operating modes are available, providing flexibility depending on the type of test.
The TVO 1000N500S-LD is also equipped with a premium control panel. Users benefit from a digital speed display, a repeat function display, and the ability to control the stand via the AFH software on a PC. The robust table top design makes it comfortable to operate in daily use, while the solid construction ensures durability under demanding conditions. With the optional TVO A01 accessory, SAUTER force measuring devices up to 1 kN can be securely fixed.
This combination of hardware, software, and smart drive technology makes the KERN TVO 1000N500S-LD an ideal choice for users who need accurate, repeatable, and well documented force measurement results.
Features
-
Five in one package with LD length measuring system, software, and accessories.
-
Maximum force capacity of 1 kN.
-
Stepper motor for constant speed and accurate positioning.
-
Displacement measuring range of 500 mm with 0,01 mm readability.
-
Premium control panel with digital displays and PC software integration.
-
Automatic or manual operation modes.
-
Stable table top design with robust construction.
-
Compatible with SAUTER force gauges up to 1 kN (with TVO A01).
Technical Data
-
Maximum generated force: 1 kN.
-
Maximum traverse distance: 500 mm.
-
Drive type: Stepper motor.
-
Length measuring device: With display and data interface.
-
Power supply: 230 V AC, 50 Hz.
-
Minimum speed: 1 mm/min.
-
Maximum speed: 500 mm/min.
-
Dimensions (W×D×H): 980×405×265 mm.
-
Alignment: Vertical.
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
