KERN Motorised Test Stand - TVM 5000N230N-LB - Electric - Max. force 5kN - Max. distance 210mm

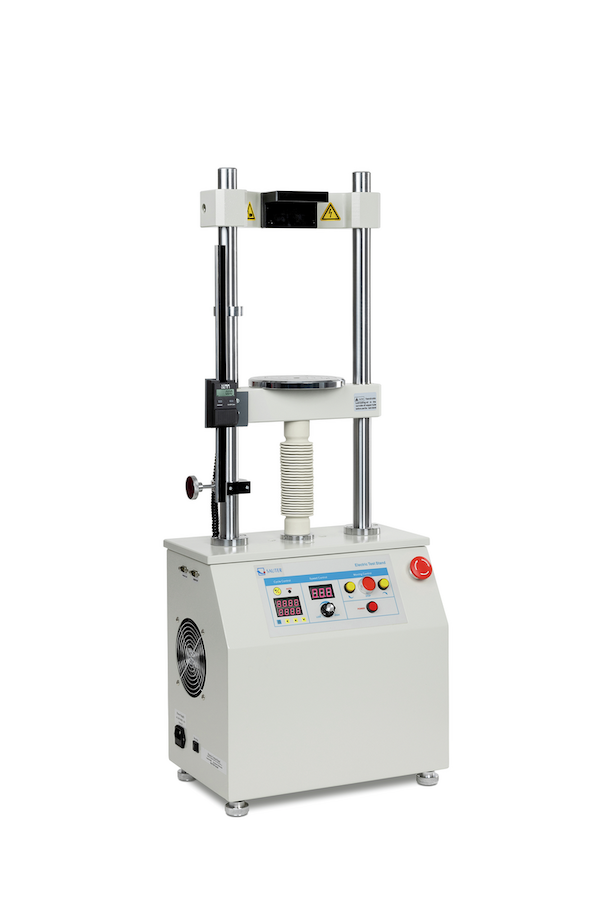

KERN TVM 5000N230N-LB
This is a two column motorised test stand designed for both tension and compression force measurements. With a capacity of up to 5 kN, this stand combines strong performance with high precision, making it ideal for laboratory use, production testing, and quality control tasks.
This model comes as a complete five in one package, including the motorised stand, a digital length measuring device (LB), an interface cable, AFH FD data transfer software, two interface converters AFH 12, and mounting hardware. The integrated digital length measuring device allows you to create force displacement diagrams directly on your PC. With a measuring range of 300 mm and readability of 0,01 mm, it provides detailed and reliable test data.
The TVM 5000N230N-LB features a force controlled automatic stop function. When connected to a SAUTER FH force gauge, the test stand will stop automatically once the set limit load is reached. This protects both the test object and the device, ensuring repeatable and accurate testing.
The electronic end switches safeguard against over travel, while the two column design ensures stability during testing. Flexibility is another strong point of this model. Measuring devices with internal load cells up to 500 N can be mounted directly, and external load cells can be attached starting from 1000 N. Holders are also available for SAUTER FH devices with external load cells, making the stand suitable for many applications.
Features
-
Maximum force capacity of 5 kN.
-
Supplied as a five in one system with LB length measuring device and AFH FD software.
-
High precision displacement measurement with 0,01 mm readability.
-
Automatic stop at set limit loads (with SAUTER FH).
-
End switches for displacement protection.
-
Flexible mounting options for SAUTER FC, FH, FK, and FL devices.
Technical Data
-
Maximum generated force: 5 kN.
-
Maximum traverse distance: 210 mm.
-
Drive type: Electric motor.
-
Length measuring device: With display and data interface.
-
Power supply: 220 V AC, 50 Hz.
-
Minimum speed: 10 mm/min.
-
Maximum speed: 230 mm/min.
-
Dimensions (W×D×H): 400×256×1035 mm.
-
Material housing: Metal, lacquered.
-
Alignment: Vertical.
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
