KERN Inverted Fluorescence Microscope - OCM 166 - Trinocular - Illumination (transmitted) Halogen - Objectives 10x,20x,40x + FREE C-mount adapter
KERN OCM 166

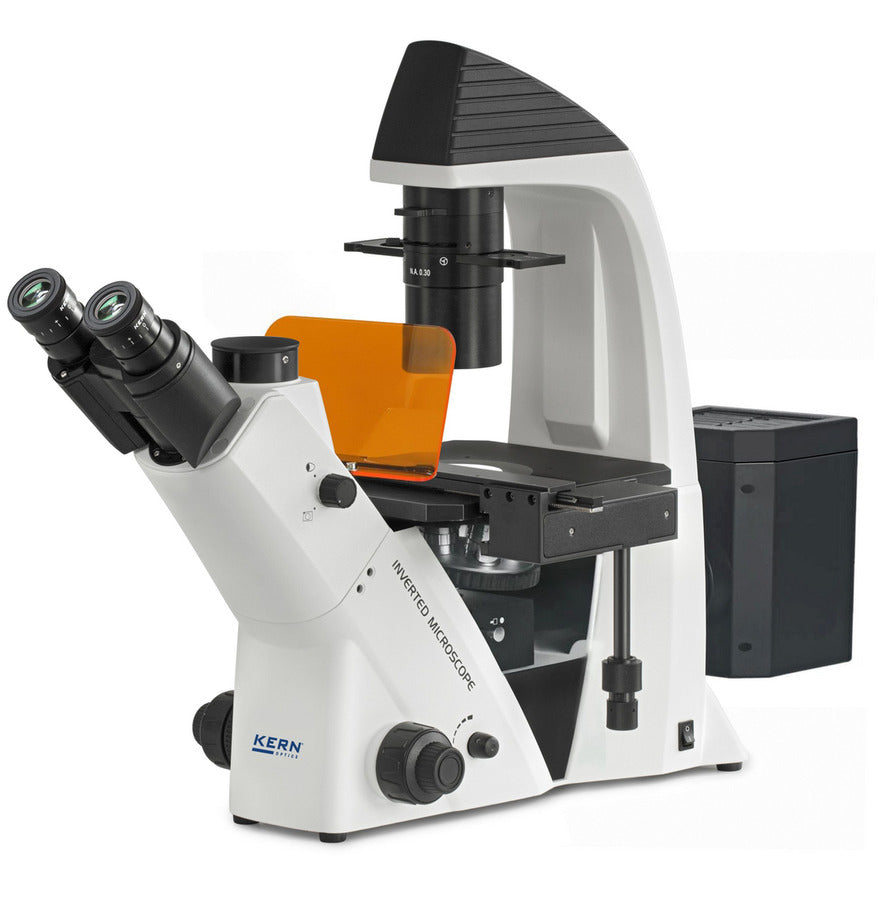

The OCM 166 is an inverted fluorescence microscope with a stable build and a large working distance. This makes it suitable for monitoring and analysing cell cultures.
It uses a strong 30 W halogen lamp for bright field illumination. For fluorescence work, it has an Osram 100 W HBO epi fluorescence unit, which provides powerful and clear light for fluorescence samples. The Abbe condenser with 0.3 aperture and a working distance of 72 mm helps direct the light correctly in both bright field and fluorescence.
A trinocular eyepiece tube is fitted as standard. The stage includes a 110 mm specimen holder, allowing smooth and effective handling of samples. Extra brackets for petri dishes are supplied or available as accessories. Other accessories, such as eyepieces, objectives, specimen holders, and phase contrast units, can also be added.
The microscope is delivered with a free OBB-A1515 camera adapter. This C-mount 0.5x adapter with adjustable focus connects a microscope camera to the trinocular tube, making it easy to capture and document images. A dust cover and user instructions are also included.
Features
-
Inverted microscope with large working distance.
-
30 W halogen light for bright field illumination.
-
Osram 100 W HBO epi fluorescence unit for fluorescence imaging.
-

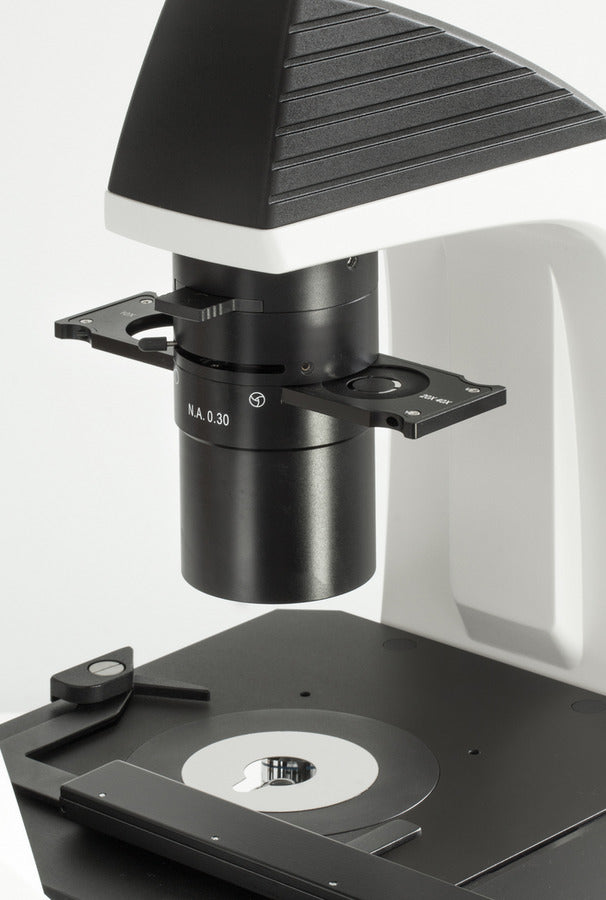

Abbe condenser with 0.3 aperture and 72 mm working distance.
-

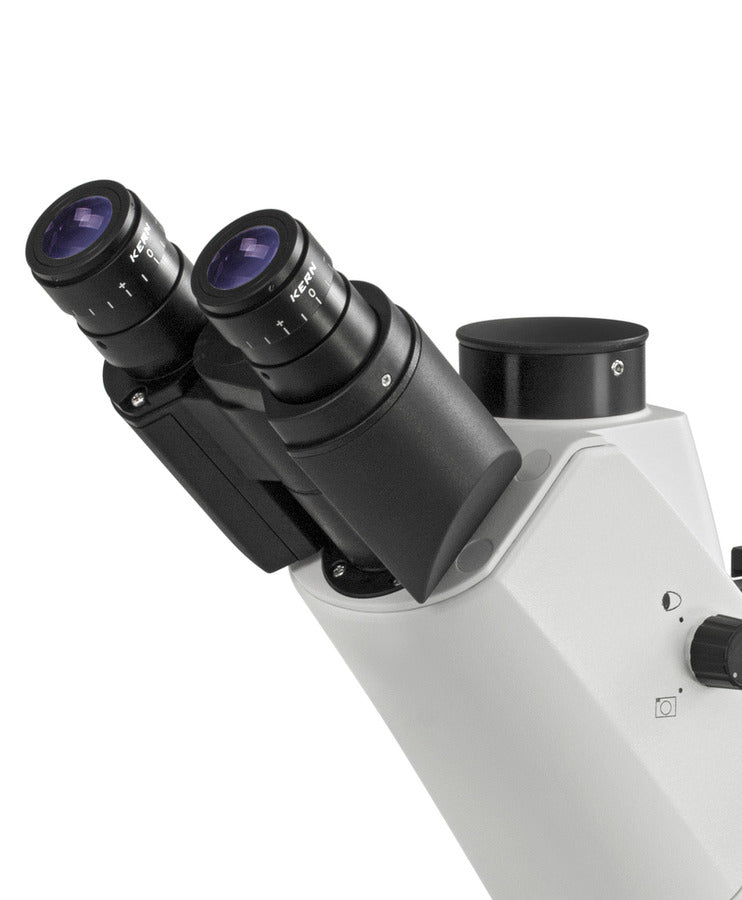

Trinocular eyepiece tube.
-

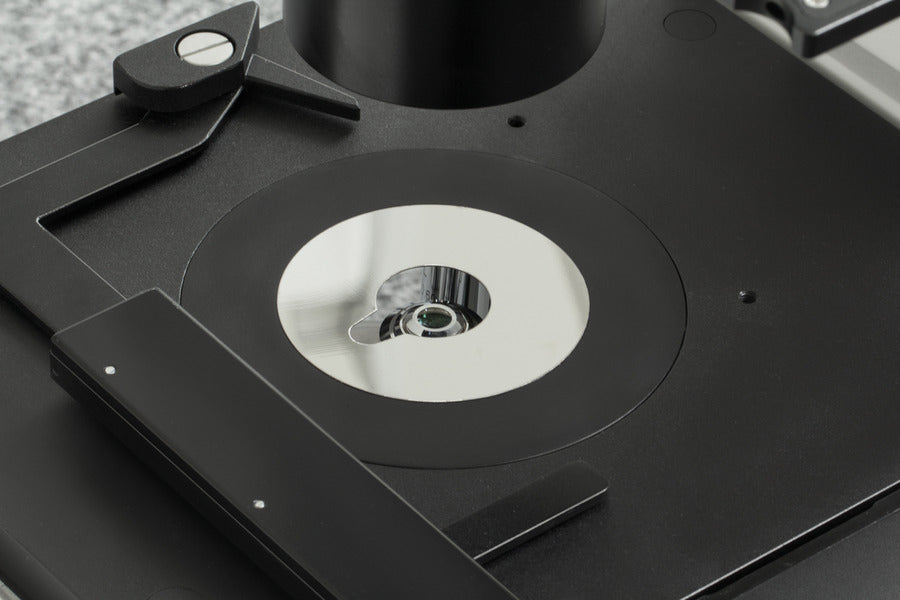

Mechanical stage with 110 mm specimen holder.
-
Petri dish brackets included or available as accessories.
-
Free OBB-A1515 camera adapter for microscope cameras.
-
Accessories available: eyepieces, objectives, specimen holders, phase contrast units.
-
Supplied with dust cover and instructions.
Applications
The OCM 166 is used for research and breeding of cell and tissue cultures. It is also used in laboratories, inpatient facilities, and by health authorities. Typical samples include cell cultures, tissue, and microorganisms, as well as fluorescence methods like immunofluorescence, FISH, and DAPI staining.
Technical Data
-
Optical system: Infinity.
-
Tube type: Trinocular.
-
Ocular magnification: 10x.
-
Ocular visual field: 22 mm.
-
Standard objectives: 10×, 20×, 40×, PH 20×.
-
Lens quality: Infinity Plan.
-

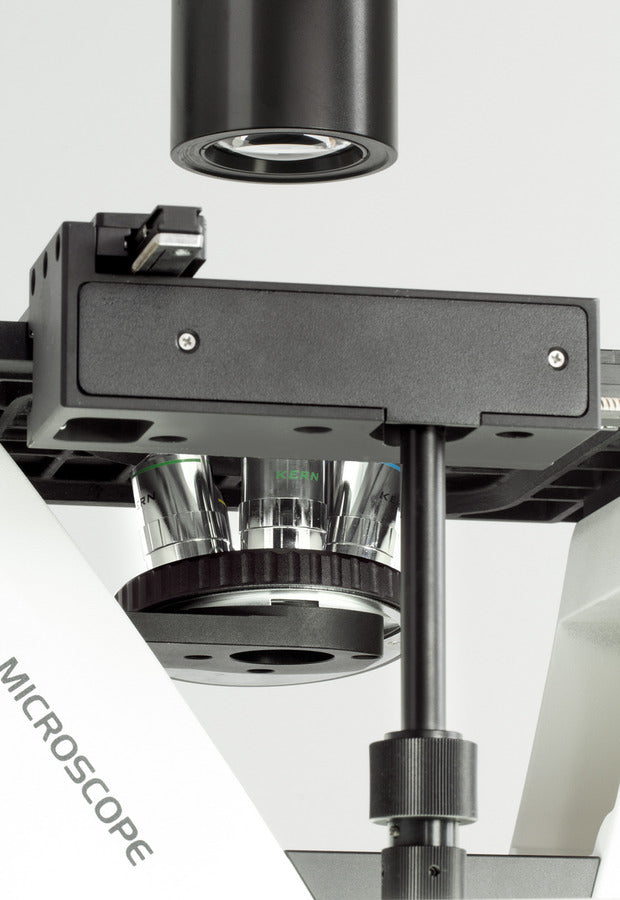

Nosepiece positions: 5.
-
Illuminance: Reflected and transmitted light.
-
Illumination type transmitted: Halogen, 30 W.
-
Illumination type incident: HBO, 100 W.
-
Fluorescent unit: Ultraviolet, Violet, Blue, Green (HBO).
-
Condenser: Abbe, 0.3, fixed.
-

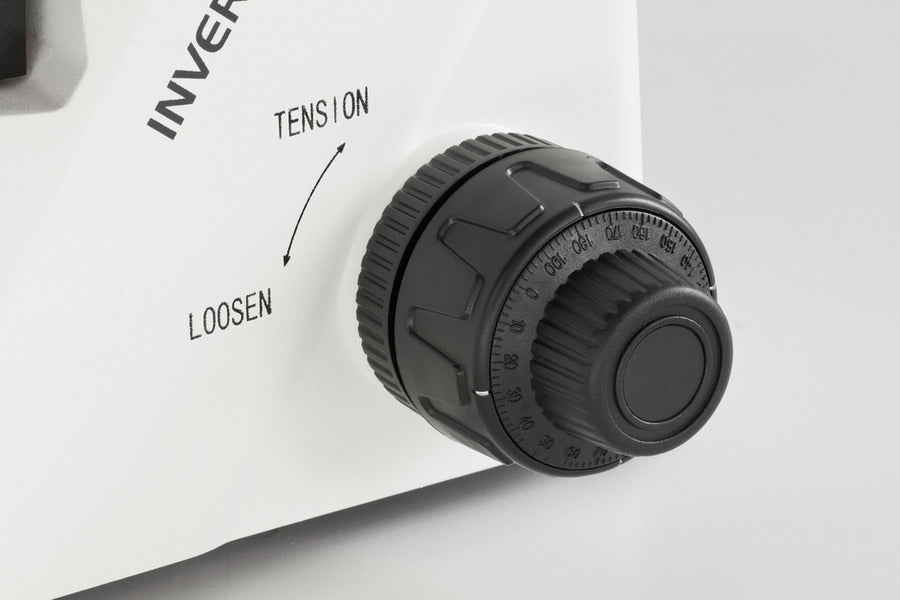

Focusing: Coaxial coarse and fine drive.
-
Fine focus step: 0.002 mm.
-
Size (W×D×H): 782 × 304 × 530 mm.
Free Included Accessory - OBB-A1515 Camera Adapter
-
Adapter type: C-Mount.
-
Magnification: 0.5x.
-
Focusable: Yes.
-
Supported camera types: Microscope cameras.
-
Net weight: approx. 0.30 kg.
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
