KERN Inverted Fluorescence Microscope - OCM 165 - Trinocular - Illumination (transmitted) Halogen - Objectives 10x,20x,40x + FREE C-mount adapter
KERN OCM 165

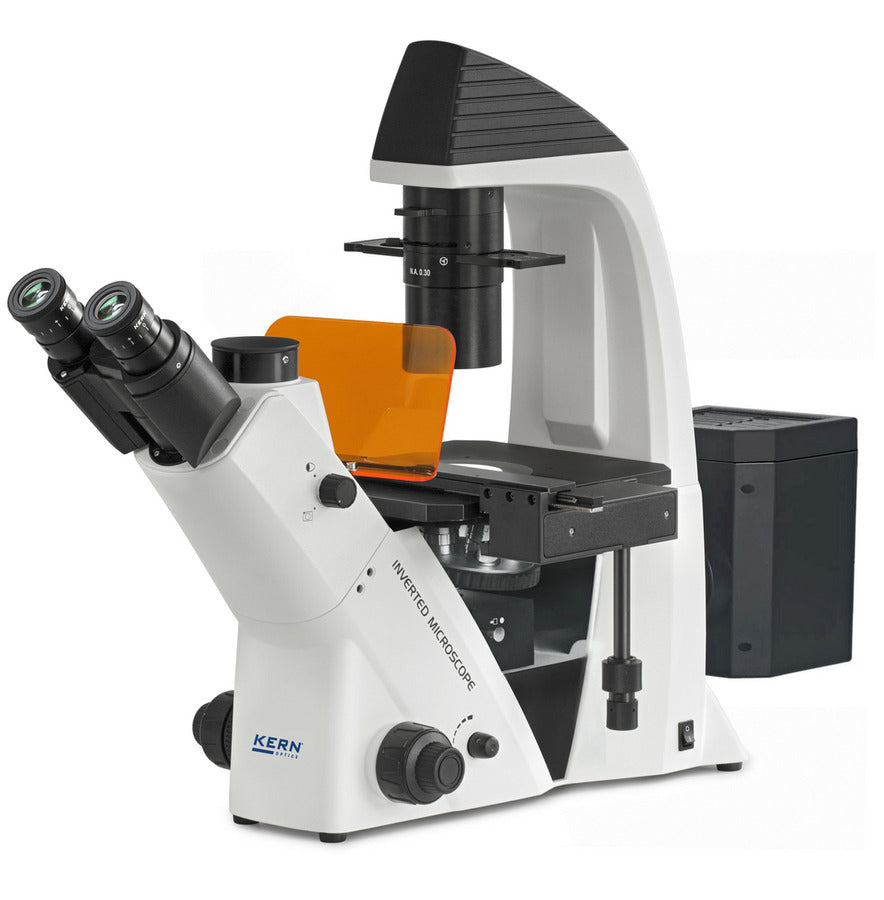

The KERN OCM 165 is an inverted fluorescence microscope with a stable design and a large working distance. This makes it suitable for observing and analysing cell cultures.
It uses a 30 W halogen lamp for bright field illumination. For fluorescence work, it has an Osram 100 W HBO epi fluorescence unit, which gives strong and clear light for fluorescence samples. The Abbe condenser with 0.3 aperture and a 72 mm working distance helps direct the light properly in both bright field and fluorescence.
A trinocular eyepiece tube is fitted as standard. The stage includes a specimen holder with 110 mm diameter and moves smoothly, making sample handling quick and effective. Extra brackets for petri dishes are included with delivery or available as accessories. Additional accessories such as eyepieces, objectives, specimen holders, and phase contrast units can also be added.
The microscope is supplied with a free OBB-A1515 camera adapter. This C-mount 0.5x adapter with adjustable focus connects a microscope camera to the trinocular tube, making it easy to capture and document images. A dust cover and user instructions are also included.
Features
-
Inverted microscope with large working distance.
-
30 W halogen lamp for bright field illumination.
-
Osram 100 W HBO epi fluorescence unit.
-

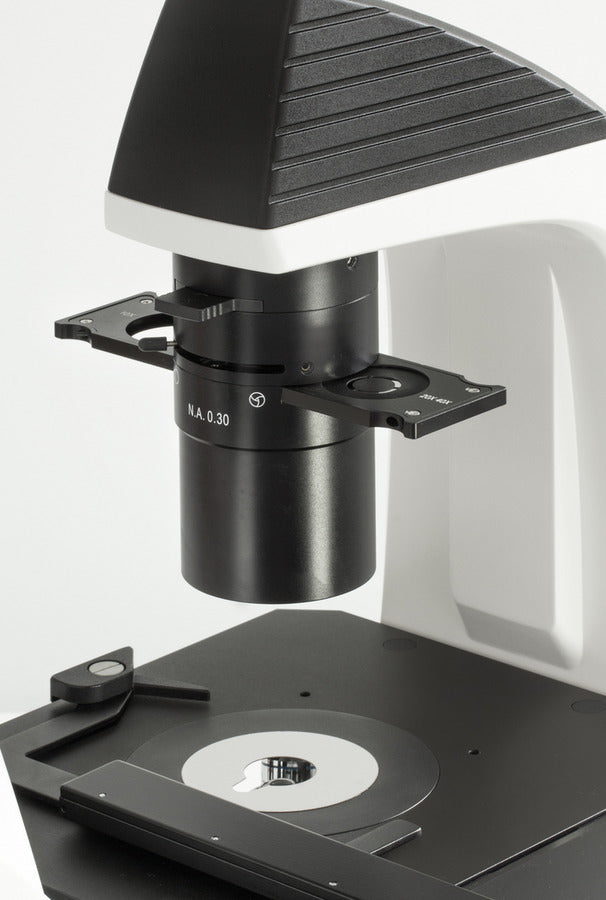

Abbe condenser with 0.3 aperture and 72 mm working distance.
-

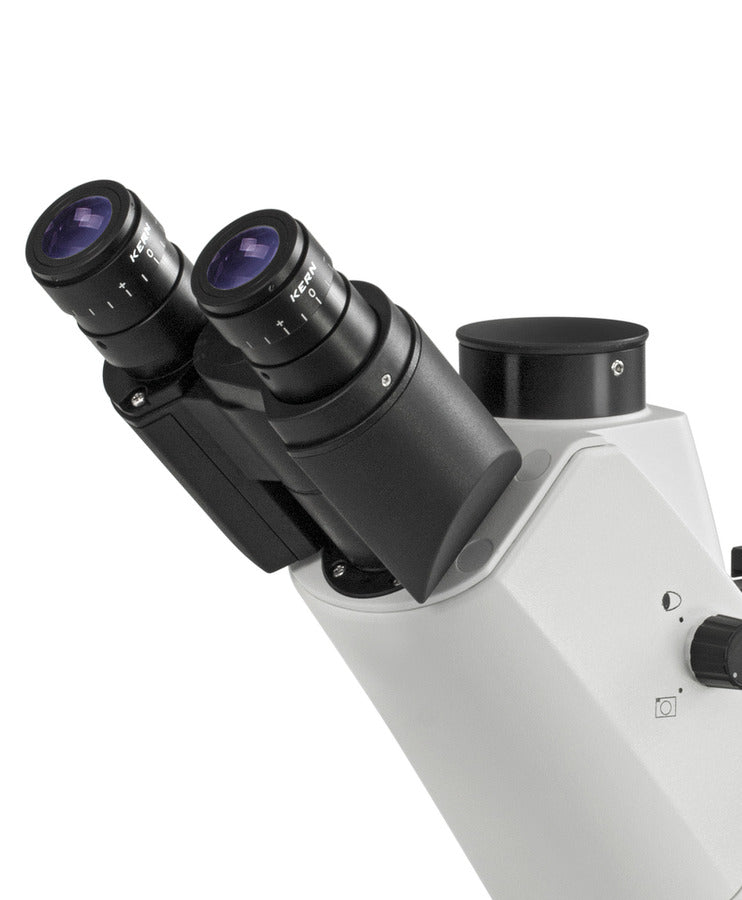

Trinocular eyepiece tube.
-

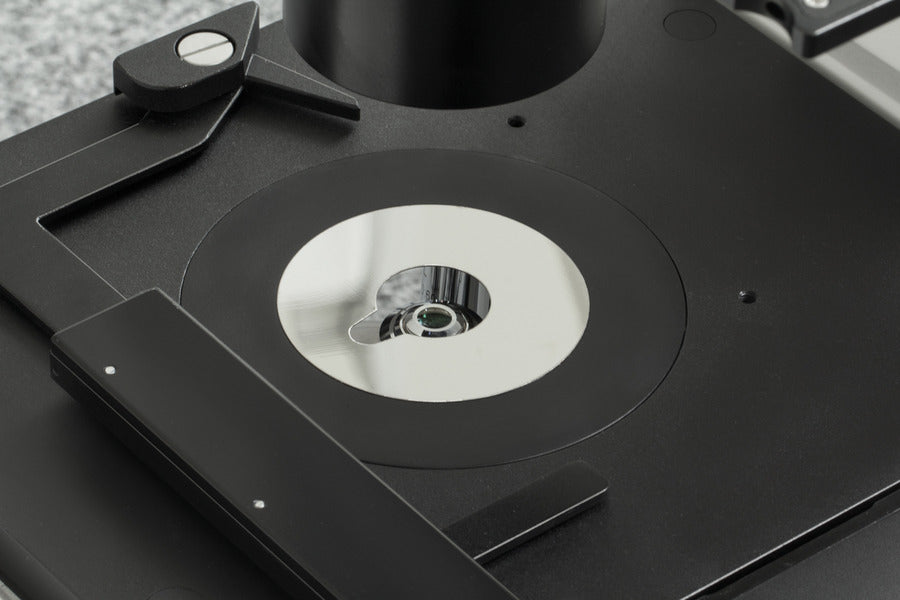

Mechanical stage with 110 mm specimen holder.
-
Petri dish brackets included or available as accessories.
-
Free OBB-A1515 camera adapter for microscope cameras.
-
Accessories available: eyepieces, objectives, specimen holders, phase contrast units.
-
Supplied with dust cover and instructions.
Applications
The OCM 165 is used for research and breeding of cell and tissue cultures. It is applied in laboratories, inpatient facilities, and by health authorities. It is suitable for samples in culture vessels such as flasks, petri dishes, and microtitre plates. It can also be used for translucent or thin samples such as living cells, tissue, and microorganisms, and for fluorescence methods like immunofluorescence, FISH, and DAPI staining.
Technical Data
-
Optical system: Infinity.
-
Tube type: Trinocular.
-
Ocular magnification: 10x.
-
Ocular visual field: 22 mm.
-
Standard objectives: 10×, 20×, 40×, PH 20×.
-
Lens quality: Infinity Plan.
-

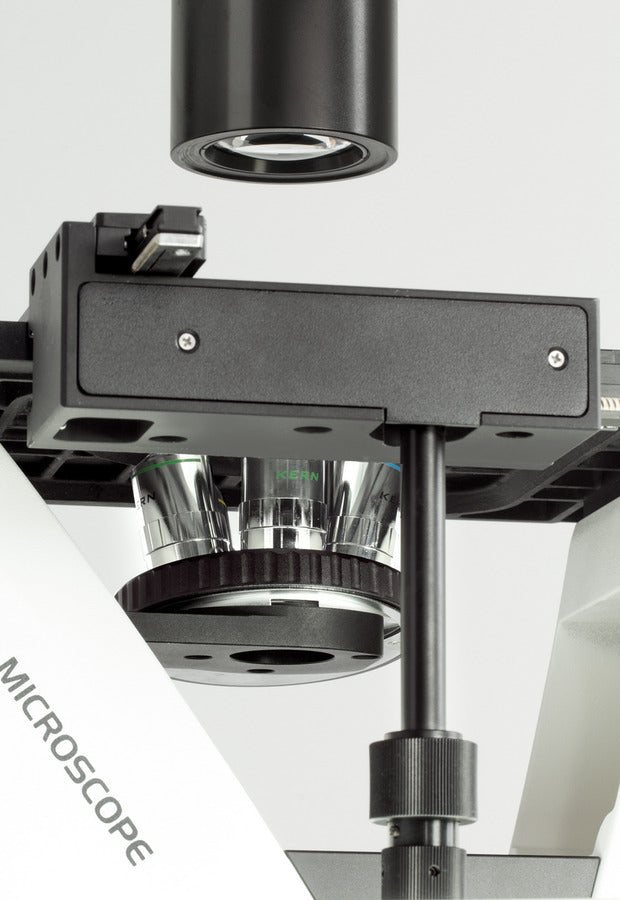

Nosepiece positions: 5.
-
Illuminance: Reflected and transmitted light.
-
Illumination type transmitted: Halogen, 30 W.
-
Illumination type incident: HBO, 100 W.
-
Fluorescent unit: Blue, Green (HBO).
-
Condenser: Abbe, 0.3, fixed.
-

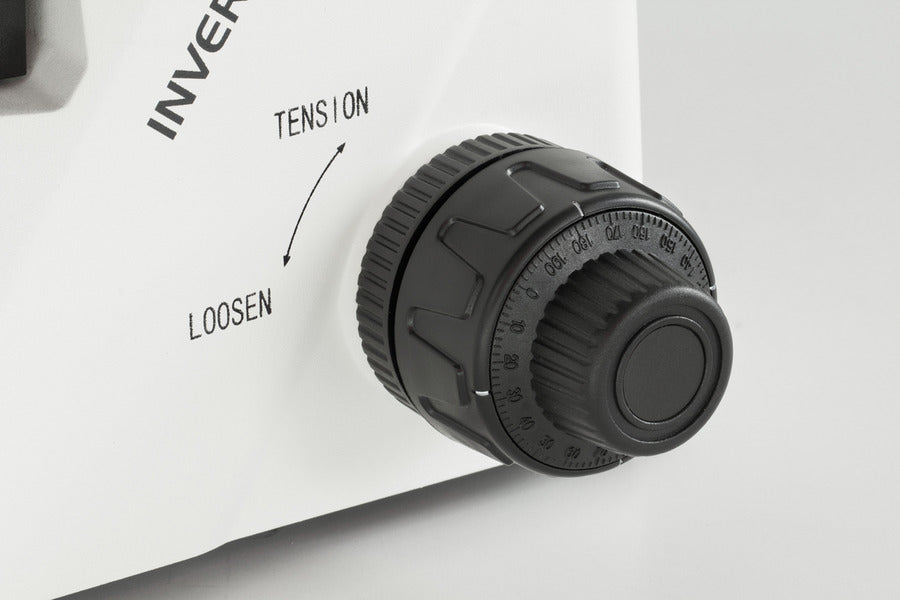

Focusing: Coaxial coarse and fine drive.
-
Fine focus step: 0.002 mm.
-
Size (W×D×H): 782 × 304 × 530 mm.

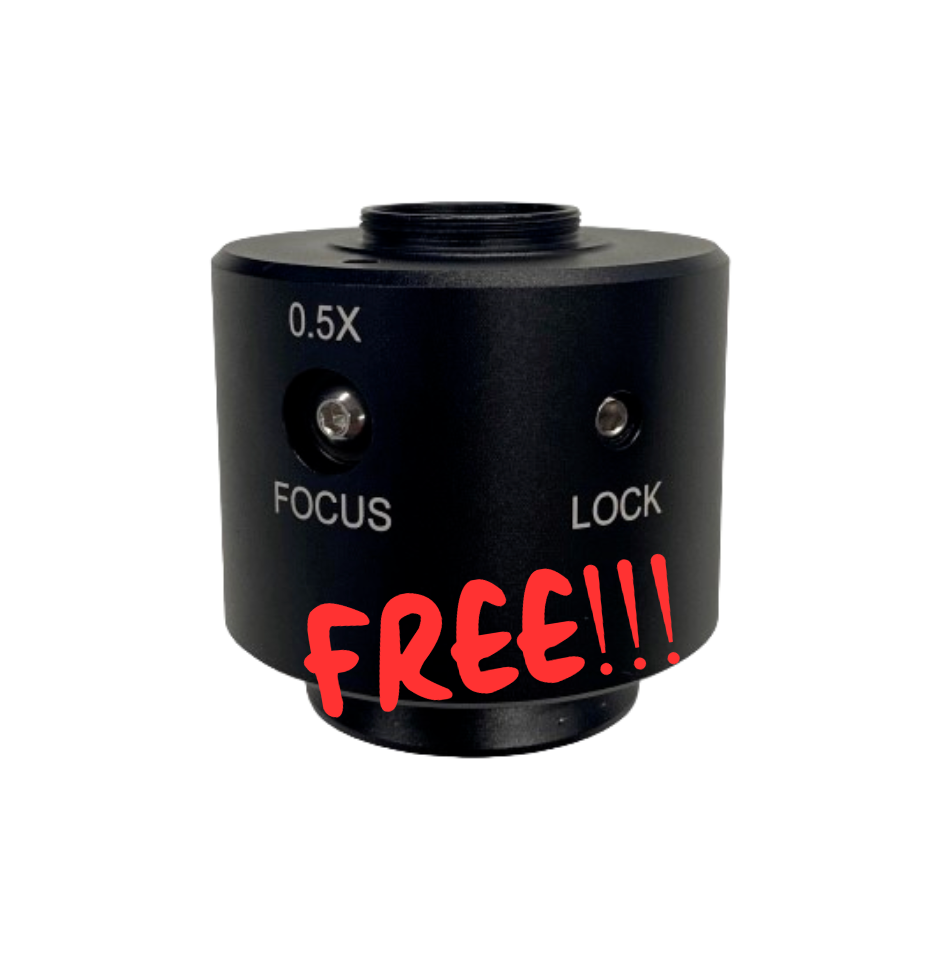

Free Included Accessory - OBB-A1515 Camera Adapter
-
Adapter type: C-Mount.
-
Magnification: 0.5x.
-
Focusable: Yes.
-
Supported camera types: Microscope cameras.
-
Net weight: approx. 0.30 kg.
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
