KERN Fluorescence Microscope - OBN 142 - Trinocular - Illumination (transmitted) LED - Objectives 4x,10x,20x,40x,100x + FREE C-mount adapter
KERN OBN 142

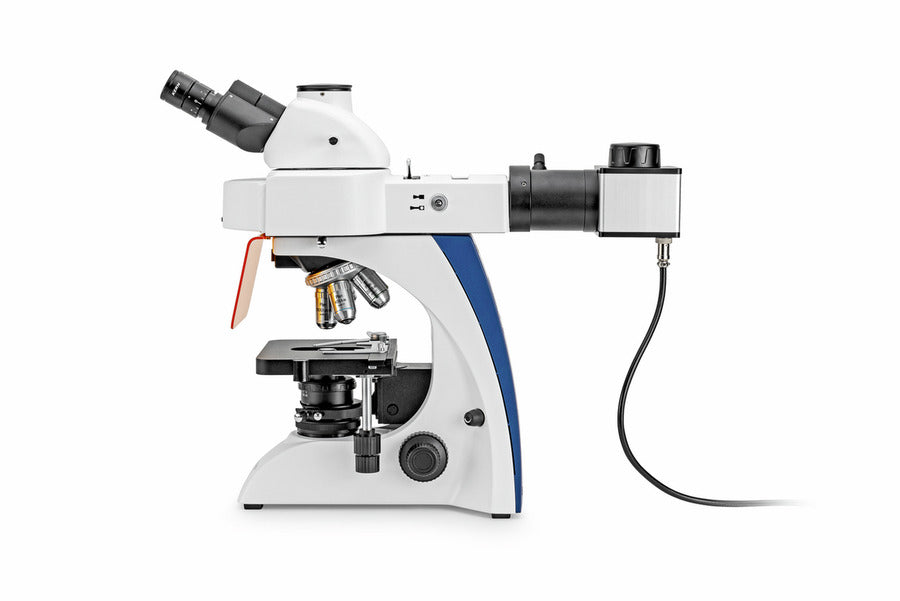

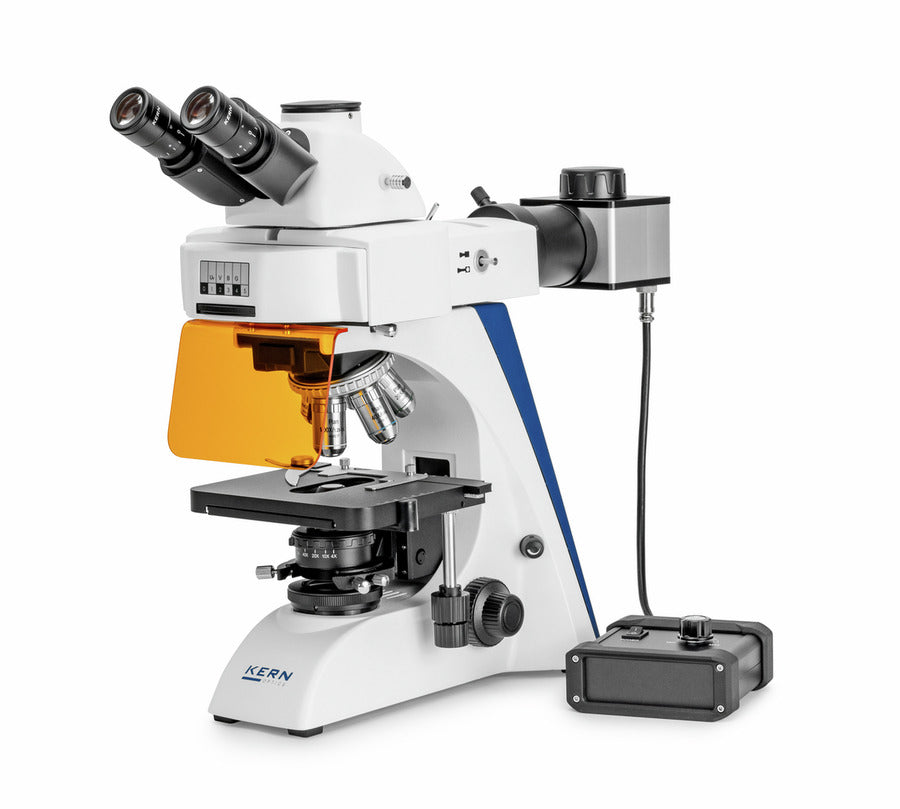

The OBN 142 is a fluorescence microscope from the 14 series. It combines a stable frame with high quality optics and is designed for demanding fluorescence applications.

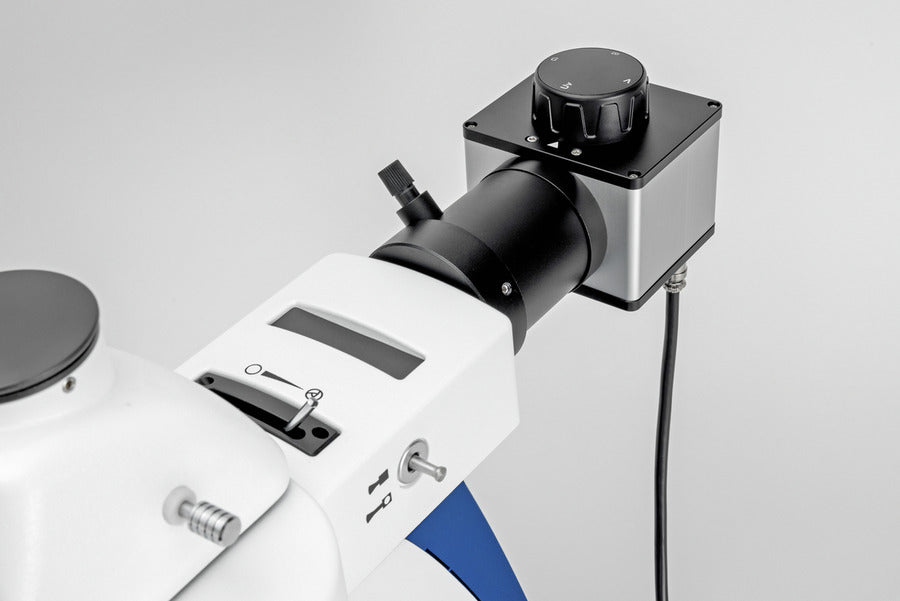

It uses a 3 W LED for transmitted light and a 5 W LED epi fluorescence unit for incident light. The Koehler illumination system has an adjustable field diaphragm and a 1.25 Abbe condenser, which can be centred and adjusted with an aperture diaphragm for precise light control.
The large mechanical stage moves smoothly and is controlled by coaxial coarse and fine focus knobs on both sides, making it simple to adjust and focus samples accurately. A filter wheel with up to six slots is fitted as standard and includes B, G, UV, and V fluorescence filters.
The modular design allows easy expansion with accessories such as eyepieces, objectives, colour filters, darkfield condensers, a butterfly tube, polarising units, and phase contrast units.
The OBN 142 is supplied with a free OBB-A1515 camera adapter. This C-mount 0.5x adapter with adjustable focus connects a microscope camera to the trinocular tube for image capture and documentation. Delivery also includes a centring objective for fluorescence adjustment, dust cover, eye cups, and multilingual instructions.
Features
-
3 W LED transmitted light and 5 W LED epi fluorescence illumination.
-
Koehler illumination with field diaphragm and 1.25 Abbe condenser (centring and adjustable).
-
Large mechanical stage with smooth coaxial drive.
-
Coarse and fine focus knobs on both sides.
-
Filter wheel with B, G, UV, V fluorescence filters.
-
Modular system for accessories: eyepieces, objectives, colour filters, darkfield, polarisation, phase contrast.
-
Free OBB-A1515 camera adapter for microscope cameras.
-
Supplied with centring objective, dust cover, eye cups, and instructions.
Applications
The OBN 142 is used in many fields, including haematology, urology, gynaecology, dermatology, pathology, microbiology and parasitology, immunology, sewage treatment, oncology, entomology, veterinary practices, water analysis, and breweries.
It is specially designed for translucent, thin, low-contrast, and challenging samples such as immunofluorescence, FISH, and DAPI staining.
Technical Data
-
Optical system: Infinity.
-
Tube type: Trinocular.
-
Ocular magnification: 10x.
-
Ocular visual field: 20 mm.
-
Standard objectives: 4×, 10×, 20×, 40×, 100×.
-
Lens quality: Infinity Plan.
-
Nosepiece positions: 5.
-
Illuminance: Reflected and transmitted light.
-
Illumination type transmitted: LED, 3 W.
-
Illumination type incident: LED, 5 W.
-
Fluorescent unit: Ultraviolet, Violet, Blue, Green (LED).
-
Condenser: Abbe, 1.25, centreable.
-
Focusing: Coaxial coarse and fine drive.
-
Fine focus step: 0.002 mm.
-
Size (W×D×H): 530 × 220 × 490 mm.
Free Included Accessory - OBB-A1515 Camera Adapter
-
Adapter type: C-Mount.
-
Magnification: 0.5x.
-
Focusable: Yes.
-
Supported camera types: Microscope cameras.
-
Net weight: approx. 0.30 kg.
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
