KERN Digital Microscope Set - OBL 137T241 - Objectives 4x,10x,40x,100x - Illumination (transmitted) LED - USB 2.0, Wifi, HDMI, MicroSD card slot
KERN OBL 137T241

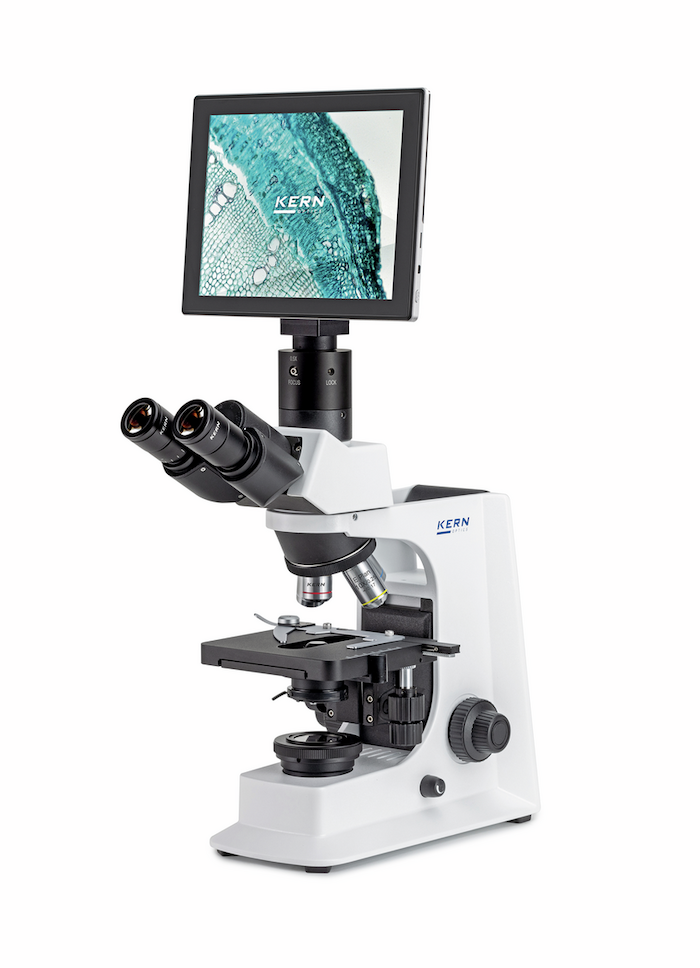

The OBL 137T241 is a laboratory microscope supplied as a complete digital set with a mounted tablet camera and matching C-mount adapter. It allows direct live investigation on the screen and includes all accessories for immediate use such as dust cover, eyecups, multilingual instructions, and pre installed software on the tablet.
The OBL series uses an infinity optical system, making it well suited for demanding transmitted light applications in laboratories, training, and routine analysis. The stable stand with ergonomic design provides a secure and comfortable working environment. Illumination is delivered by a strong 3 W LED unit, continuously dimmable for precise brightness control.
This model is fitted with a fixed, pre-centred, and focusable 1.25 Abbe condenser equipped with both aperture and field diaphragms. This provides simplified Koehler illumination without the need for frequent adjustments. The mechanical stage is generously sized and fitted with a specimen holder that can secure up to two samples simultaneously. Coaxial coarse and fine focusing knobs on both sides ensure quick and accurate adjustments.
The set includes the ODC 241 tablet camera, offering live transfer of images to a 9.7" LCD touch screen with 2048×1536 resolution. The integrated 5 MP Sony CMOS sensor records images and videos in sharp detail. Measuring functions such as distance, area, angle, and manual counting are supported. Automatic white balance and contrast adjustment allow efficient workflows. Data can be saved to USB or MicroSD, transferred to an external screen via HDMI, or connected to a PC for documentation.
This complete solution makes the OBL 137T241 a reliable digital microscope for laboratories, teaching environments, and quality control applications.
Technical Data
-
Optical system: Infinity
-
Tube type: Trinocular
-
Ocular magnifications: 10x
-
Ocular visual field: 20 mm
-
Standard objectives: 4×, 10×, 40×, 100×
-
Lens quality: Infinity E-Plan
-
Nosepiece screw-in locations: 4
-
Illumination: Transmitted light, LED 3 W
-
Condenser: Abbe 1.25, fixed
-
Focusing: Coaxial coarse and fine drive, 0.002 mm fine step
-
Display: 9.7" LCD touch, 2048×1536
-
Camera: Sony CMOS, 5 MP, 30 fps
-
Interfaces: WiFi, USB 2.0, HDMI, MicroSD
-
C-Mount magnification: 0.5x
-
Dimensions (W×D×H): 394×235×600 mm
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
