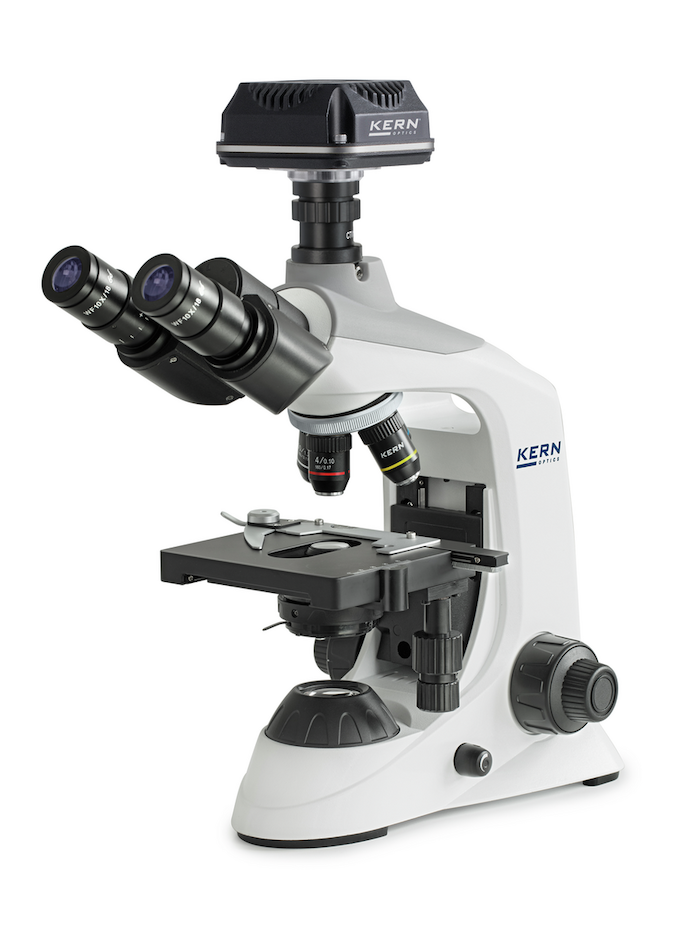

KERN Digital Microscope Set - OBE 124C832 - Objectives 4x,10x,40x - Illumination (transmitted) LED - USB 3.0
KERN OBE 124C832
The OBE 124C832 is a laboratory microscope set offered as a complete digital solution with a mounted C-mount camera and the appropriate C-mount adapter included. It is designed for live investigations and can be used in education, training, or laboratory work. A protective dust cover, eye cups, and multi-lingual user instructions are supplied.
The OBE 124 combines stable construction with ergonomic handling. A built-in storage compartment at the back provides quick and practical storage for the power cable, and the USB connection also allows operation with an external power bank. The infinitely dimmable 3 W LED delivers bright illumination of samples. The integrated Butterfly tube provides flexible viewing angles, while the height-adjustable and focusable 1.25 Abbe condenser with aperture diaphragm ensures precise light control. The large mechanical stage allows two samples to be placed at the same time and is adjusted using coaxial coarse and fine focusing knobs on both sides.
The ODC 832 camera uses CMOS technology and USB 3.0 for fast, clear image transfer. It supports demanding applications such as darkfield, phase contrast, and fluorescence. With high frame rates, synchronisation, and stable image quality, it ensures efficient operation together with the KERN Microscope VIS software included in delivery. Power is supplied directly via USB, so no external power unit is required.
Technical Data
-
Optical system: Finite.
-
Tube type: Trinocular.
-
Ocular magnifications: 10x.
-
Ocular visual field: 18 mm.
-
Standard objectives: 4×, 10×, 40×.
-
Lens quality: Achromatic.
-
Nosepiece screw-in locations: 4.
-
Illuminance: Transmitted light.
-
Illumination intensity transmitted light: 3 W.
-
Illumination type transmitted light: LED.
-
Condenser type: Abbe.
-
Condenser aperture: 1.25.
-
Condenser mount: Fixed.
-
Focusing mechanism: Coaxial coarse and fine drive.
-
Fine drive minimum: 0.002 mm.
-
Camera sensor type: CMOS.
-
Camera colour depth: Colour.
-
Camera sensor size: 1/2.5".
-
Camera resolution: 5.1 MP.
-
Camera framerate: 14.2–101.2 fps.
-
Interfaces: USB 3.0.
-
Dimension (W×D×H): 360×150×390 mm.
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
