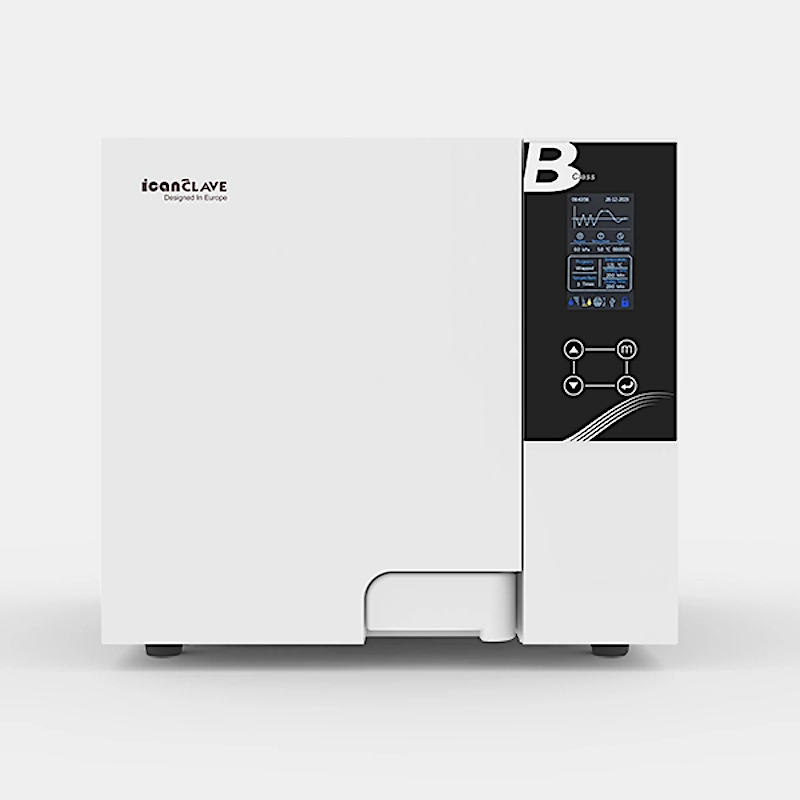

IcanClave D Pro - Autoclave
IcanClave D Pro
8D Pro | 12D Pro | 18D Pro | 23D Pro | 29D Pro
ICANCLAVE model D Pro steam sterilizers continues the thorough, stable and durable performance characteristics of ICANCLAVE model D, and at the same time upgrade the original normal LCD screen and traditional button membrane to a 4.3-inch color LCD screen and glass backlight touch buttons, which are more simple and fashionable in appearance and more in line with the contemporary aesthetic requirements.
Model D Pro adds "Delay Start" and "Descale" new function on the basis of the Model D sterilizer, which brings a richer application to the user experience of the sterilizer for medical and health practitioners.
✅ Available sizes: 8, 12, 18, 23, and 29 liters
Technical Specifications
| Specifications | 8D Pro | 12D Pro | 18D Pro | 23D Pro | 29D Pro |
|---|---|---|---|---|---|
| Order Code | IcanClave 8D Pro | IcanClave 12D Pro | IcanClave 18D Pro | IcanClave 23D Pro | IcanClave 29D Pro |
| Model Number | STE-8-D Pro | STE-12-D Pro | STE-18-D Pro | STE-23-D Pro | STE-29-D Pro |
| Chamber Dimension | Ø170×320 mm | Ø200×360 mm | Ø250×350 mm | Ø250×450 mm | Ø250×570 mm |
| Chamber Volume | approx. 8L | approx. 12L | approx. 18L | approx. 23L | approx. 29L |
| Number of Trays | 2 / Max. 3 | 2 / Max. 3 | 3 / Max. 5 | 3 / Max. 5 | 4 / Max. 6 |
| Material of Trays | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Size of Trays (W×H) | 130×265 mm | 160×315 mm | 192×285 mm | 192×380 mm | 192×485 mm |
| Voltage / Frequency | 220/110V, 50/60Hz | 220/110V, 50/60Hz | 220/110V, 50/60Hz | 220/110V, 50/60Hz | 220/110V, 50/60Hz |
| Power | 2300W | 2300W | 2300W | 2300W | 2300W |
| Overall Dimension (W×H×D) | 420×370×525 mm | 420×370×595 mm | 490×455×600 mm | 490×455×690 mm | 490×455×780 mm |
| Weight | 37kg | 40kg | 50kg | 53kg | 58kg |
Program Cycles
| Program | Temperature / Pressure | Sterilization Time | Total Time (minutes) |
|---|---|---|---|
| QUICK 134 | 134℃ / 210Kpa | 3.5 min | 15–30 |
| WRAPPED 134 | 134℃ / 210Kpa | 4 min | 38–57 |
| WRAPPED 121 | 121℃ / 110Kpa | 20 min | 46–62 |
| PRION 134 | 134℃ / 210Kpa | 18 min | 45–60 |
| B&D TEST | 134℃ | 3.5 min | 28–35 |
| HELIX TEST | 134℃ | 3.5 min | 28–35 |
| VACUUM TEST | – | – | 20–25 |
Key Features
- Standard pre-programmed cycles: Quick 134℃, Wrapped 134℃, Wrapped 121℃, Prion 134℃, B&D Test, Helix Test, Vacuum Test
- Other cycles: Delay start (reserve the cycle), Descale (cleaning steam generator and tube)
- Steam generator: Built-in steam generator with 2300W rated power
- Water Reservoir: One distilled water reservoir 2.5L and one wastewater reservoir
- Water Quality monitoring: Cycle is not available to start if the water quality worse than the value be set
- Colored LCD Display: Displaying for cycle process, time, temperature, pressure, process alert and error codes
- Touch Pad: Glass touch button with back light, fashionable in appearance
- User friendly interface: Easy to operate
- Warning system: Warning of not enough water in distiller water reservoir, wastewater tank be full, bad water quality, door unlock, printer out of paper
- Atmospheric pressure identification system: It can automatically identify the local atmospheric pressure
- Safety system: Over pressure safety valve, over temperature switch, safety lock system preventing improper door lock, circuit breakers protecting the machine when it has short-circuited or over current, automatic warning for maintenance
- Extra functions: Option to be connected directly with Water Demineralizer Listo-23
Documentation & Data Management
- Printer (option): An internal printer is optional for all ICANCLAVE D autoclaves
- USB port: Used for connecting a USB disc, all sterilization data are automatically output in the USB disc and can be ready directly in any PC and stored electronically
- Internal Memory: The last 10000+ cycles can be automatically stored in the autoclave system, which can be printed out at any time
- Barcode label printer port (option): Used for connecting an optional barcode printer that prints barcode labels containing information related to the sterilization cycle
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
See manual and certifications here
