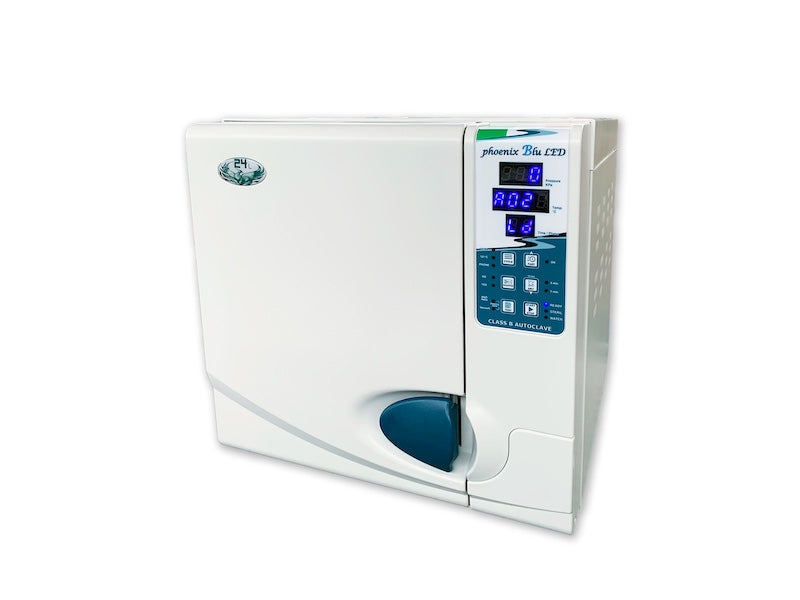

Guarisco Autoclave - Phoenix Blu LED Standard 18L/24L + Free Water Distiller

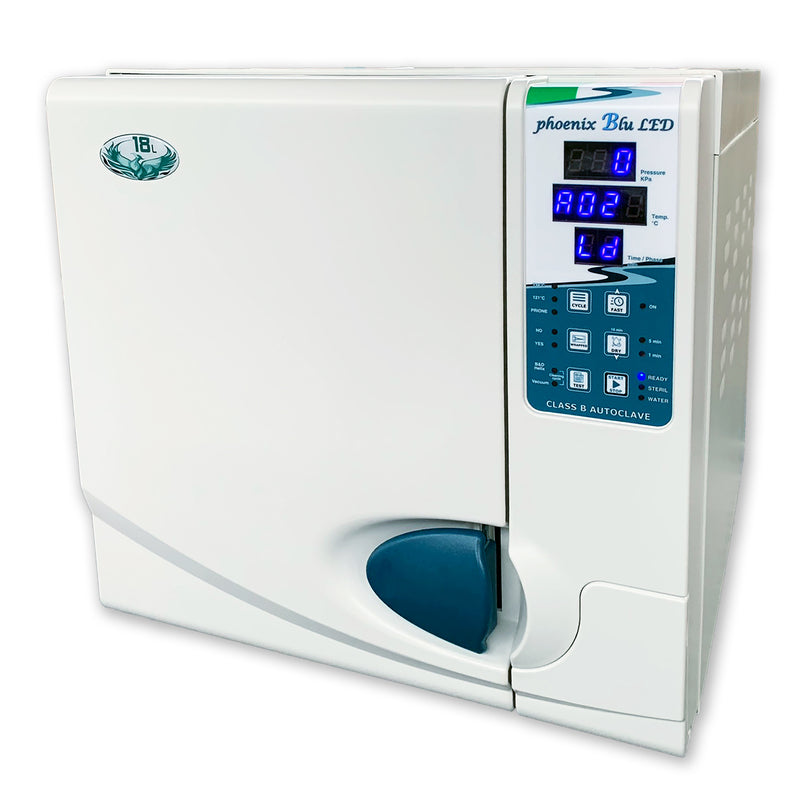

Phoenix Blu LED Standard
Class B autoclave available in 18 and 24 liter capacity. This autoclave is equipped with 3 LED displays that show in real time temperature, pressure, and time phase of the sterilisation cycle. This version is available with USB port for automatic saving of the sterilisation cycle data on a USB key.
While other sterilisers overwhelm you with complicated displays and confusing buttons, the Phoenix Blu LED Standard speaks your language with three simple LED screens that show you exactly what you need to know: Temperature, Pressure, and Time. That's it. Simple. Clear. Perfect.
Features:
-
Three LED Display System: Crystal clear temperature, pressure, and time readings (no confusing menus).
-
14 Sterilization Cycles: Perfect flexibility for all your instruments and materials.
-
Smart Stand-by Function: Chamber stays warm to save 10-15 minutes per cycle.
-
Automatic USB Data Storage: Every cycle automatically saved (USB drive included).
-
Advanced Water Quality Control: Automatic monitoring and alerts.
-
Quick Water Connection System: Easy loading and unloading from the front.
-
Two Independent Water Tanks: 4.6L clean water, 5.0L waste water capacity.
-
Built-in Safety Systems: Audio alarms and error messages keep you informed.
-
3 Stainless Steel Trays Included: Ready to use right out of the box.
Your Investment is Protected: Backed by 2 Years Warranty on defective spare parts (not subject to wear)
MAIN FUNCTIONS:
USB PORT
Every Phoenix Blu autoclave comes with a built-in USB port, no matter the version. Simply insert the supplied USB stick to save and archive all sterilization data—forever.
STAND-BY FUNCTION
The stand-by function keeps the sterilization chamber warm between uses. This saves 10–15 minutes on the next cycle and helps prevent moisture buildup during overnight standby.
DRYING
With Phoenix Blu, you’re in control.
Forget preset cycles choose your drying time for every sterilization:
1, 5, or 10 minutes depending on your needs.
12 STERILIZATION CYCLES
Includes 4 sterilization cycles at either 134 °C or 121 °C, all in Class B.
By adjusting the drying time (1, 5, or 10 minutes) with the DRY button, you can achieve up to 12 custom cycle combinations.
Every cycle can also be used as a rapid cycle.
3 TEST CYCLES
Built-in safety and performance test cycles:
-
Helix Test
-
Bowie & Dick Test
-
Vacuum Test
ULTRA-FAST STEAM GENERATOR
Phoenix Blu uses a latest-generation external steam generator an ULTRA-RAPID version.
Key benefits:
-
Reduces chamber fill time
-
Speeds up the entire sterilization process
-
Transforms water into steam almost instantly
-
Prevents limescale buildup in internal parts
QUALITY AND SPEED
Every clinic wants reliability and efficiency. Phoenix Blu delivers both.
-
Built with only high-quality components
-
Every element and its position is carefully designed
-
Makes maintenance fast and simple whether routine or special
DOUBLE-HEAD VACUUM PUMP
The vacuum pump is the heart of Class B sterilization.
Phoenix Blu uses only high-efficiency, double-head vacuum pumps with three fractionated vacuum phases, ensuring deep sterilization of every instrument.
INDEPENDENT AND INSPECTABLE TANKS
Equipped with two separate tanks one for distilled water, the other for used water.
-
Easily accessed by unscrewing the top cover
-
Quick and straightforward maintenance
-
Built-in water quality control system: checks water conductivity and alerts if levels exceed 15 μS
AIR / WATER SEPARATOR
Inside the autoclave are two condensers:
-
One converts steam back into water
-
The other separates air from water
This feature helps protect internal parts from steam or corrosive liquids, preventing damage to key components like the vacuum pump.
QUICK DRAIN PIPE
All Phoenix Blu models feature a quick coupling system for water loading and draining.
-
Positioned at the front for easy access
-
Optional rear exhaust available by request (standard on some models)
| Specification | Phoenix Blu 18 | Phoenix Blu 24 |
|---|---|---|
| General Information | ||
| Sterilization System | Steam Sterilizer (Autoclave) | Steam Sterilizer (Autoclave) |
| Medical Device Class | Class IIb | Class IIb |
| Class (UNI EN 13060) | Class B | Class B |
| Physical Specifications | ||
| External Dimensions | 462 × 445 × 600 mm (W × H × D) | 462 × 445 × 600 mm (W × H × D) |
| Weight | Net: 54 kg | Gross: 56 kg | Net: 56 kg | Gross: 59 kg |
| Sterilization Chamber | 255 × 360 mm (ø × D) | 255 × 460 mm (ø × D) |
| Trays (3 included) | 285 × 190 mm | 385 × 190 mm |
| Power & Installation | ||
| Power Consumption | 1800 W | 1800 W |
| Voltage | 220 V | 220 V |
| Min. Support Surface Depth | 500 mm | 500 mm |
| Min. Support Surface Width | 460 mm | 460 mm |
| Min. Space for Water Loading | 165 mm | 165 mm |
| Operating Parameters | ||
| Sterilization Temperature | 121°C - 134°C | 121°C - 134°C |
| Maximum Temperature | 138°C | 138°C |
| Working Pressure | 121°C: 1.0-1.3 bar (STP) 134°C: 2.0-2.4 bar (STP) |
121°C: 1.0-1.3 bar (STP) 134°C: 2.0-2.4 bar (STP) |
| Max Working Empty | -0.9 bar (STP) | -0.9 bar (STP) |
| Maximum Pressure | 2.5 bar | 2.5 bar |
| Water System | ||
| Water Tank Capacity | Distilled: 4.6 L | Used: 5.0 L | Distilled: 4.6 L | Used: 5.0 L |
| Water Consumption per Cycle | 0.30-0.55 L (15 cycles) | 0.40-0.60 L (11 cycles) |
| Filtration | ||
| Bacteriological Filter (Air) | ø 56 mm | 0.3 μm capacity | ø 56 mm | 0.3 μm capacity |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
See manual and certifications here
