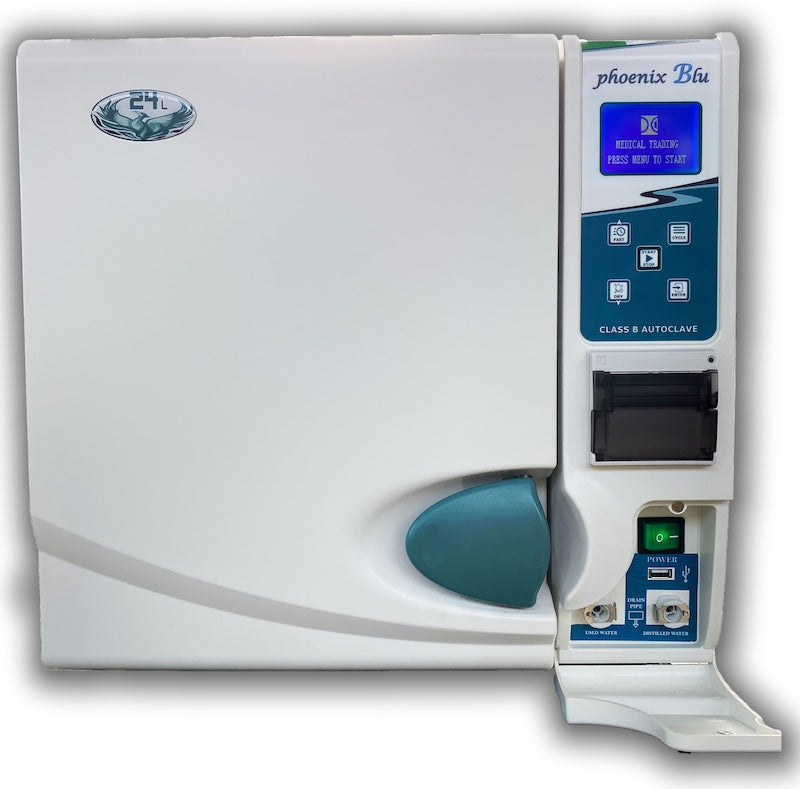

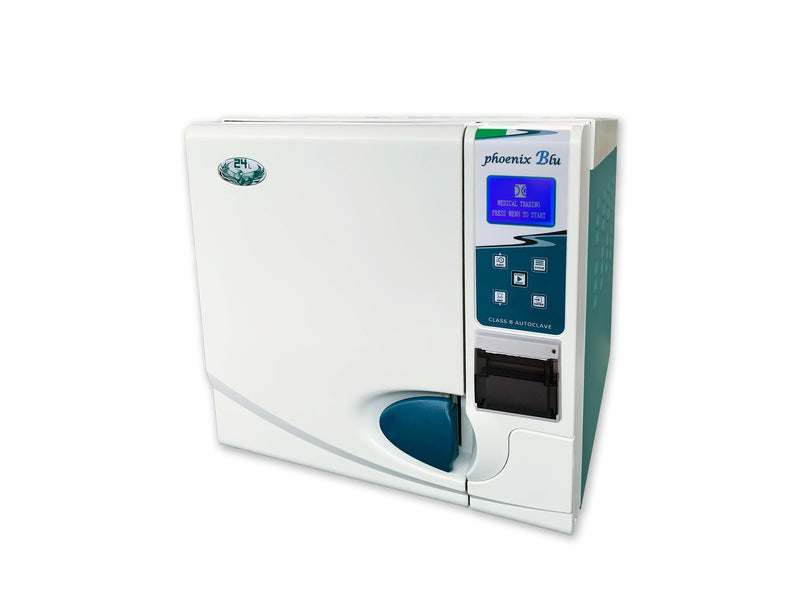

Guarisco Autoclave - Phoenix Blu Pinter 18L/24L LCD With Printer + Free Water Distiller
Phoenix Blu LCD With Pinter
This autoclave is equipped with a 4" high resolution LCD DISPLAY that allows you to view the graph of the sterilization cycle and the sterilization parameters in real time. This version is available with a USB port for automatic saving of the sterilization cycle data on a USB key and with INTEGRATED PRINTER as optional.
Your instruments are perfectly sterilised. A printed record slides out automatically showing:
-
Exact temperature reached.
-
Exact pressure used.
-
Exact time of cycle.
-
Date and time completed.
-
Full proof everything worked perfectly.
No writing. No guessing. No missing records.
This Changes Everything:
✓ Never Lose Another Record
The printer works automatically. Every cycle gets recorded. No more hunting for missing paperwork during inspections.
✓ Save 15 Minutes Every Day
No more writing down numbers. No more filling out forms. The machine does it all while you do other work.
✓ Pass Every Inspection
Hand inspectors a neat, printed record showing exactly what happened in every sterilization cycle. They'll be impressed.
✓ Hospital-Level Cleaning Power
Class B sterilization means it can clean ANY instrument perfectly – from simple tools to complex hollow instruments.
✓ Works With Any Practice
Perfect for dental offices, veterinary clinics, beauty salons, tattoo studios, medical practices – anywhere you need clean instruments.
✓ 2 Years Warranty on defective spare parts (not subject to wear)
Features:
Large LCD Screen: Shows you exactly what's happening in real-time. No guessing if it's working.
Stand-By Mode: Keeps warm between uses. Saves 10-15 minutes on your next cycle.
USB Port: Also saves digital records if you want backup files.
Quality Water Check: Warns you if water quality isn't perfect for sterilization.
Simple Controls: Just press one button. The machine does the rest.
Quiet Operation: Won't disturb patients or disrupt your work.
MAIN FUNCTIONS:
LCD DISPLAY
The multilingual display shows the graph of the cycle in use and provides the operator with instant data, on the pressure or temperature inside the chamber or on the function in progress. In addition, the screen shows warning / error messages supported by an audible alarm.
USB PORT
Every Phoenix Blu autoclave comes with a built-in USB port, no matter the version. Simply insert the supplied USB stick to save and archive all sterilization data forever.
The Phoenix Blu PRINTER version includes both a USB port and an integrated thermal printer. It automatically prints sterilization results on thermal paper, so you can file physical receipts as proof of completed and successful sterilization cycles.
STAND-BY FUNCTION
The stand-by function keeps the sterilization chamber warm between uses. This saves 10–15 minutes on the next cycle and helps prevent moisture buildup during overnight standby.
DRYING
With Phoenix Blu, you’re in control.
Forget preset cycles choose your drying time for every sterilization:
1, 5, or 10 minutes depending on your needs.
12 STERILIZATION CYCLES
Includes 4 sterilization cycles at either 134 °C or 121 °C, all in Class B.
By adjusting the drying time (1, 5, or 10 minutes) with the DRY button, you can achieve up to 12 custom cycle combinations.
Every cycle can also be used as a rapid cycle.
3 TEST CYCLES
Built-in safety and performance test cycles:
-
Helix Test
-
Bowie & Dick Test
-
Vacuum Test
ULTRA-FAST STEAM GENERATOR
Phoenix Blu uses a latest-generation external steam generator an ULTRA-RAPID version.
Key benefits:
-
Reduces chamber fill time
-
Speeds up the entire sterilization process
-
Transforms water into steam almost instantly
-
Prevents limescale buildup in internal parts
QUALITY AND SPEED
Every clinic wants reliability and efficiency. Phoenix Blu delivers both.
-
Built with only high-quality components
-
Every element and its position is carefully designed
-
Makes maintenance fast and simple whether routine or special
DOUBLE-HEAD VACUUM PUMP
The vacuum pump is the heart of Class B sterilization.
Phoenix Blu uses only high-efficiency, double-head vacuum pumps with three fractionated vacuum phases, ensuring deep sterilization of every instrument.
INDEPENDENT AND INSPECTABLE TANKS
Equipped with two separate tanks one for distilled water, the other for used water.
-
Easily accessed by unscrewing the top cover
-
Quick and straightforward maintenance
-
Built-in water quality control system: checks water conductivity and alerts if levels exceed 15 μS
AIR / WATER SEPARATOR
Inside the autoclave are two condensers:
-
One converts steam back into water
-
The other separates air from water
This feature helps protect internal parts from steam or corrosive liquids, preventing damage to key components like the vacuum pump.
QUICK DRAIN PIPE
All Phoenix Blu models feature a quick coupling system for water loading and draining.
-
Positioned at the front for easy access
-
Optional rear exhaust available by request (standard on some models)
| Specification | Phoenix Blu 18 | Phoenix Blu 24 |
|---|---|---|
| General Information | ||
| Sterilization System | Steam Sterilizer (Autoclave) | Steam Sterilizer (Autoclave) |
| Medical Device Class | Class IIb | Class IIb |
| Class (UNI EN 13060) | Class B | Class B |
| Physical Specifications | ||
| External Dimensions | 462 × 445 × 600 mm (W × H × D) | 462 × 445 × 600 mm (W × H × D) |
| Weight | Net: 54 kg | Gross: 56 kg | Net: 56 kg | Gross: 59 kg |
| Sterilization Chamber | 255 × 360 mm (ø × D) | 255 × 460 mm (ø × D) |
| Trays (3 included) | 285 × 190 mm | 385 × 190 mm |
| Power & Installation | ||
| Power Consumption | 1800 W | 1800 W |
| Voltage | 220 V | 220 V |
| Min. Support Surface Depth | 500 mm | 500 mm |
| Min. Support Surface Width | 460 mm | 460 mm |
| Min. Space for Water Loading | 165 mm | 165 mm |
| Operating Parameters | ||
| Sterilization Temperature | 121°C - 134°C | 121°C - 134°C |
| Maximum Temperature | 138°C | 138°C |
| Working Pressure | 121°C: 1.0-1.3 bar (STP) 134°C: 2.0-2.4 bar (STP) |
121°C: 1.0-1.3 bar (STP) 134°C: 2.0-2.4 bar (STP) |
| Max Working Empty | -0.9 bar (STP) | -0.9 bar (STP) |
| Maximum Pressure | 2.5 bar | 2.5 bar |
| Water System | ||
| Water Tank Capacity | Distilled: 4.6 L | Used: 5.0 L | Distilled: 4.6 L | Used: 5.0 L |
| Water Consumption per Cycle | 0.30-0.55 L (15 cycles) | 0.40-0.60 L (11 cycles) |
| Filtration | ||
| Bacteriological Filter (Air) | ø 56 mm | 0.3 μm capacity | ø 56 mm | 0.3 μm capacity |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
See manual and certifications here
