Guarisco Autoclave - Phoenix Blu 12L Standard + Free Water Distiller

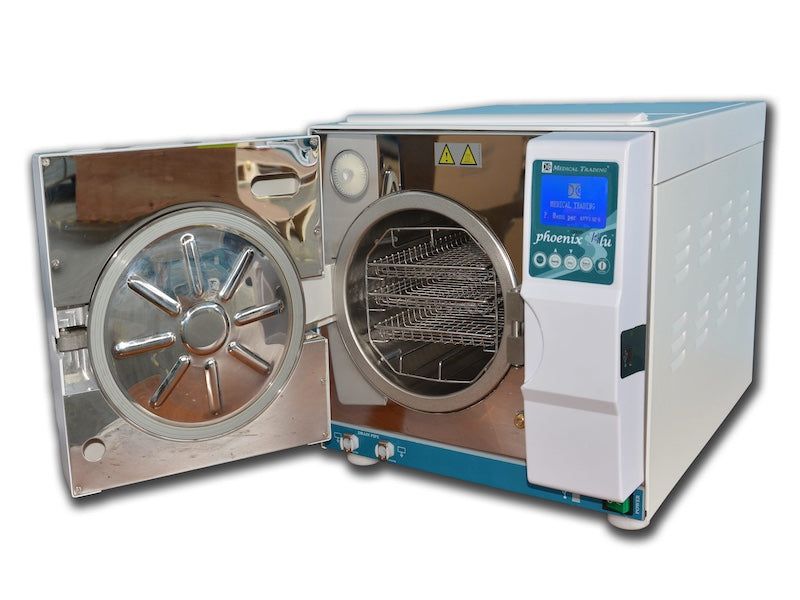

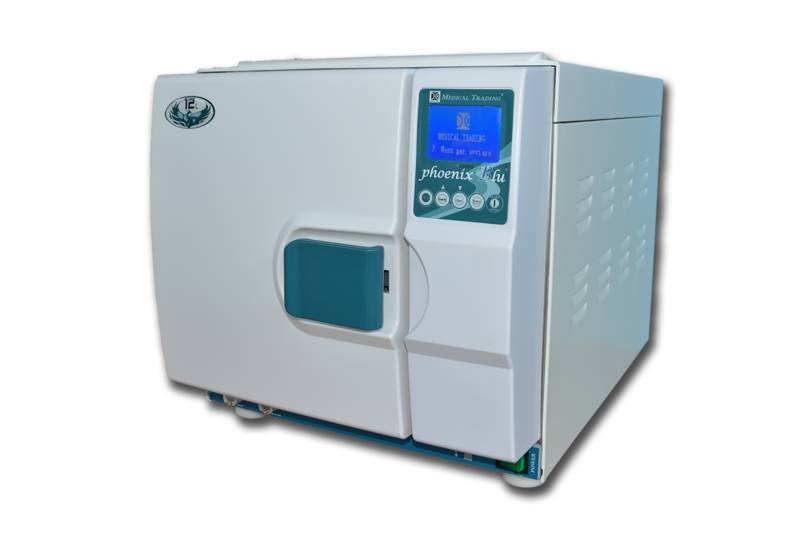

Phoenix Blu 12L Standard
This is a class B autoclave with 12 Liter chamber capacity. This autoclave is equipped with all components and functions of 18 and 24 liter autoclaves, but with a reduced external dimensions. Even if smaller externally it contains all the functions of the major autoclaves and is suitable for small medical, dental, podiatrists and veterinarians, for the beauty and hairdressing sector.
This Autoclave:
-
Fills itself with water, so you don’t have to mess with hoses or heavy jugs.
-
Heats quickly and finishes cycles fast no long waiting.
-
Shows clear info on its screen, so you always know exactly what’s happening.
-
Saves energy and water, making your practice kinder to the planet and your wallet.
Features:
-
Automatic Water Filling (AWF): Just plug in an external tank Phoenix does the rest.
-
Multilingual Graphical LCD: Easy-to-understand display shows real-time cycle info.
-
Class B Sterilization: Deep, safe cleaning even for tricky tools like drills or hollow instruments.
-
Ultra-Fast Steam Generator: Fast heat-up and short cycle time means tools ready in just minutes.
-
Strong Vacuum Pump: Three-phase vacuum ensures no air remains in your tools louder safety.
-
Adjustable Drying Time: Choose 1, 5, or 10 minutes so instruments come out perfectly dry.
-
USB Data Storage: Save your cycle logs instantly on the included pendrive easy to keep records.
-
Water Quality Control: A built-in sensor warns you if the water is too impure.
Your Investment is Protected: Backed by 2 Years Warranty on defective spare parts (not subject to wear)
MAIN FUNCTIONS:
LCD DISPLAY
The multilingual display shows a real-time graph of the cycle in use and provides the operator with instant data on pressure, temperature inside the chamber, and the current function. The screen also shows warning and error messages, supported by an audible alarm.
STAND-BY
With the Stand-by function, the sterilization chamber stays heated. This removes the need for a new heating cycle, saving about 10–15 minutes on the next sterilization and preventing humidity build-up during overnight cycles.
DRYING
With the Phoenix Blu autoclave, you decide how long each cycle lasts. No more fixed settings—choose your drying time freely for every cycle (1, 5, or 10 minutes).
12 STERILIZATION CYCLES
The unit offers 4 sterilization cycles at 134 °C or 121 °C in Class B. With the DRY button, you can set drying time (1, 5, or 10 minutes), giving you a total of up to 12 sterilization cycle combinations.
A QUICK CYCLE + 3 TEST CYCLES
Includes 3 important testing programs:
-
Helix Test
-
Bowie & Dick Test
-
Vacuum Test
USB PORT & BUILT-IN PRINTER
The Phoenix Blu 12 autoclave is available in 3 versions:
-
Phoenix Blu 12
-
Phoenix Blu 12 USB
-
Phoenix Blu PRINTER 12
The USB version includes a built-in USB port. Just insert the included USB stick to automatically save and archive sterilisation data. This helps reduce paper use and supports eco friendly practices.
The PRINTER version includes both a USB port and a built-in thermal printer. It automatically prints sterilisation records for filing and proof of completed cycles.
ULTRA-RAPID STEAM GENERATOR
Phoenix Blu is equipped with a next-generation external steam generator. This ULTRA-RAPID generator speeds up chamber filling and transforms water into steam quickly. This helps prevent limescale buildup. The integrated cleaning cycle removes impurities, extending the life of the generator.
QUALITY AND SPEED
The two most requested features—quality and speed—are at the heart of Phoenix Blu's design. Only high-quality components are used. Each part is carefully placed to reduce both routine and advanced maintenance time.
DOUBLE-HEAD VACUUM PUMP
The vacuum pump is one of the most important parts of any autoclave. It powers the vacuum stage essential for Class B sterilisation. Phoenix Blu uses only high-efficiency, double-head pumps with three fractionated vacuum phases for maximum performance.
INDEPENDENT AND INSPECTABLE TANKS
Two separate tanks—for distilled water and used water—are located under the top cover and are easy to access by removing simple screws. This allows fast and easy maintenance. The autoclave is also equipped with a water quality control system that checks the conductivity of distilled water and displays an error if it exceeds 15 μS.
ADVANCED WATER SYSTEM
The autoclave includes two condensers:
-
One recondenses steam into water
-
The other separates water from air
This is a key feature. It prevents steam or corrosive liquids from entering the internal pipes, helping avoid damage to critical parts like the vacuum pump.
RAPID WATER HANDLING
All Phoenix Blu autoclaves come with a quick-coupling system for water loading and unloading, located at the front for fast, easy operation. Rear exhaust options are available upon request and come standard on some models.
| Medical Device Type | CLASS IIb |
| External Dimensions L x W x H | 462 x 445 x 600 mm |
| Weight | Net 54 Kg - Gross 56 Kg |
| Minimum Support Surface Depth | 460 mm |
| Minimum Support Surface Width | 460 mm |
| Sterilization Chamber Capacity | 18 liters |
| Sterilization Chamber Dimensions | Ø 255 x 360 mm Stainless Steel AISI 316 |
| Tray Dimensions | 285 x 190 mm |
| Sterilization Temperature | 134°C - 121°C |
| Maximum Temperature | 138°C |
| Sterilization Pressure | 121°C Cycles: 1.0 - 1.3 bar 134°C Cycles: 2.0 - 2.4 bar |
| Maximum Working Vacuum | -0.9 bar |
| Maximum Pressure | 2.4 bar |
| Power Supply Voltage | 220 V |
| Power Consumption | 1800 W |
| Tank Capacity (Inspectable Tanks) | Distilled water: 4.6 L Used water: 5.0 L |
| Water Consumption per Sterilization Cycle | 0.8 - 1.2 L |
| Bacterial Filter (Air Filter) | Diameter: ø 56 mm Filtration capacity: 0.3 μm |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
See manual and certifications here
