GENTILIN - Smart 4.90 - Dry Air Compressor 230-50V-Hz

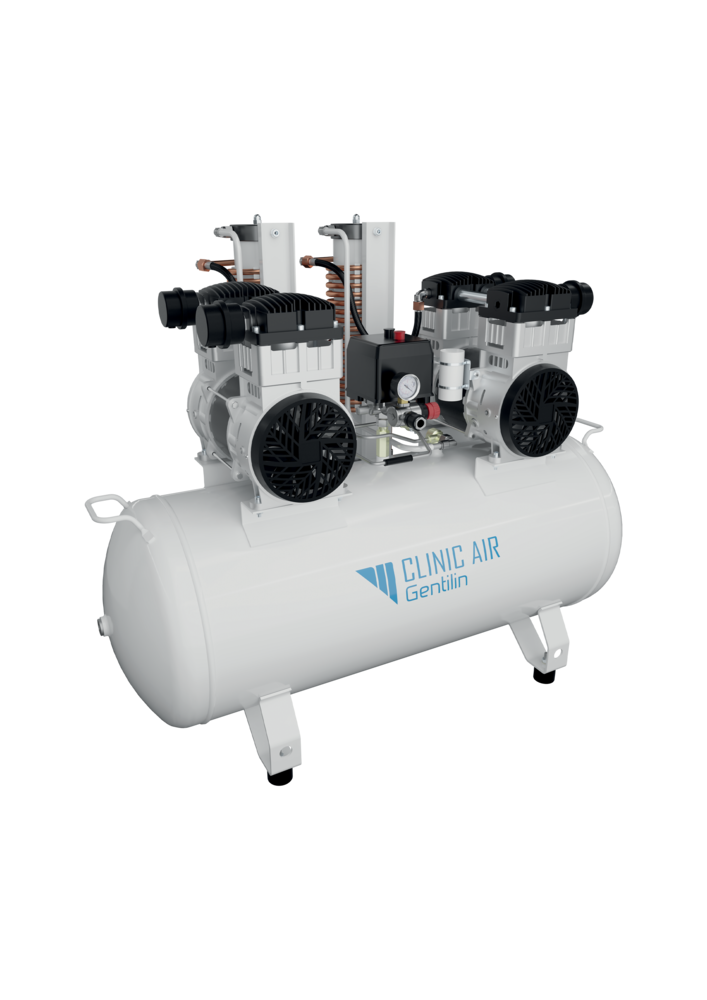

Gentilin Smart 4.90 Dry - Quiet Oil-Free Compressor with Adsorption Dryer (90L Tank)
The Gentilin Smart 4.90 Dry is a powerful professional air compressor designed for applications that require clean, dry, and reliable compressed air. Built in Italy, it combines high airflow, advanced drying technology, and quiet operation, making it ideal for laboratories, dental and medical facilities, food production, and industrial use.
Strong performance
This model is powered by a 3.0 kW (4 HP) motor with four cylinders, running at 1,400 rpm. It provides an air intake of 440 L/min, with 280 L/min delivered at 5 bar and 220 L/min at 8 bar, while reaching a maximum pressure of 8 bar. With its high airflow and robust design, the Smart 4.90 Dry is perfect for demanding tasks that require constant compressed air.
Built-in adsorption dryer
The standout feature of this version is its adsorption dryer, which lowers the dew point to -20 °C. This guarantees dry, moisture-free compressed air that prevents equipment damage and contamination. The unit meets ISO 8573-1 Class 4-3-0 standards, ensuring high-purity air for sensitive environments such as healthcare and food processing.
Large and durable tank
The compressor includes a 90-liter epoxy-coated tank, protected both inside and outside against corrosion. This large capacity allows for longer operating cycles and fewer interruptions. The solid build ensures durability and reliability over years of use.
Quiet and reliable operation
Despite its power, the Smart 4.90 Dry runs quietly at 68 dB measured at 3 meters and 5 bar - about the level of normal conversation. It operates with an S3 duty cycle (70% on / 30% off), providing consistent performance during intensive use.
Technical highlights
-
Voltage: 230 V, 50 Hz - Absorption: 14 A
-
Motor: 3.0 kW (4 HP), 4 cylinders
-
Air intake: 440 L/min
-
Air delivery: 280 L/min at 5 bar, 220 L/min at 8 bar
-
Max pressure: 8 bar
-
Tank: 90 L, epoxy coated
-
Noise level: 68 dB
-
Dimensions: 990 × 530 × 830 mm
-
Weight: 86 kg (106 kg packaged)
-
Options: Hour meter, automatic tank drain valve
The Gentilin Smart 4.90 Dry is the right choice if you need a quiet, oil-free compressor with advanced drying technology and a large tank for intensive professional use.
Manual Download
Catalog Download
Certifications Download
| Condensate Treatment | Adsorption Dryer | Dew Point -20°C |
|---|---|
| Particulate Treatment | - |
| Air purity class (ISO 8573-1) | 4-3-0 |
| Voltage (V) | 230,00 |
| Frequency (Hz) | 50,00 |
| Nominal rating (kW) | 3,00 |
| Nominal rating (HP) | 4,00 |
| Rotation speed (rpm) | 1.400,00 |
| Absorption (A) | 14,00 |
| Number of cylinders | 4 |
| Air intake (L/min) | 440,00 |
| Air Delivery (L/min @5 bar) | 280,00 |
| Air Delivery (L/min @8 bar) | 220,00 |
| Maximum pressure (bar) | 8,00 |
| Noise level (3,00m @ 5,00 bar) (dB(A)) | 68,00 |
| Duty cycle | S3 70% |
| Tank Coating | Epoxy (interior/exterior) |
| Tank capacity (lt) | 90,00 |
| First Maintenance (hours) | - |
| Hour Meter | Optional |
| Tank Automatic Drain Valve | Optional |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 990,00 | 530,00 | 830,00 | 86,00 |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 1100,00 | 600,00 | 970,00 | 106,00 |
| Dimensions (cm) - LxWxH | Weight (Kg) | Pieces |
|---|---|---|
| - | - | - |
