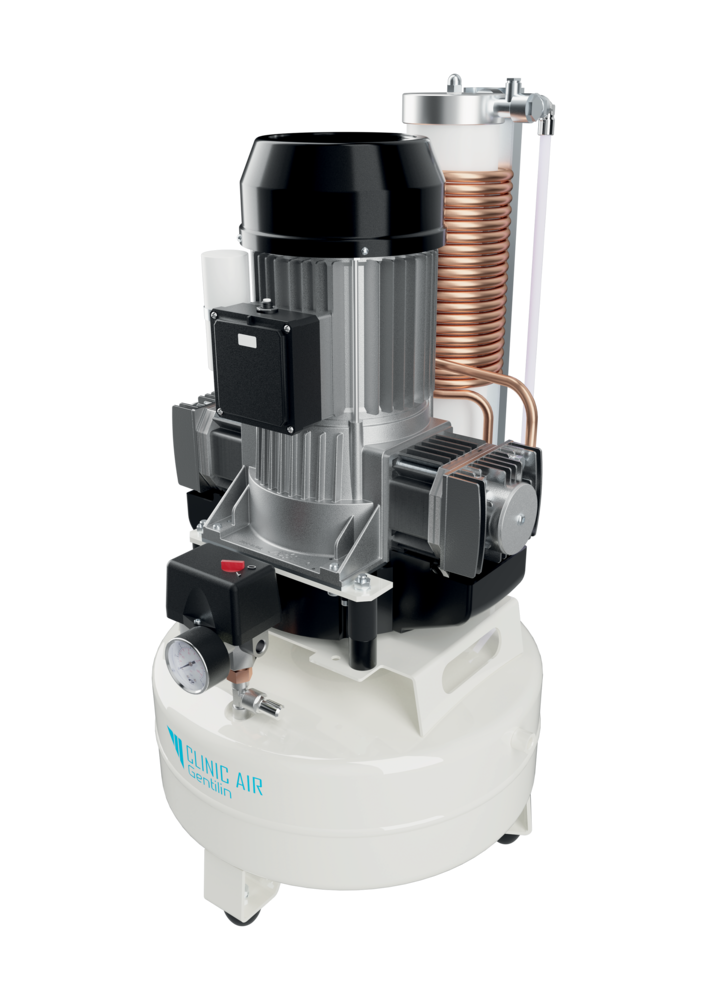

GENTILIN - Smart 3.25 S Dry Air Compressor 230-50V-Hz
Gentilin Smart 3.25 S Dry - Quiet Oil-Free Compressor with Adsorption Dryer (24L Tank, 10 Bar)
The Gentilin Smart 3.25 S Dry is a powerful air compressor designed for professionals who need clean, dry, and reliable compressed air. Made in Italy, it delivers strong performance, advanced drying technology, and low noise, making it perfect for dental and medical facilities, laboratories, food processing, workshops, and other industries where air quality is critical.
Strong performance
This model is powered by a 1.8 kW (2.4 HP) motor with two cylinders, running at 1,400 rpm. It provides an air intake of 240 L/min, with 155 L/min delivered at 5 bar and 120 L/min at 8 bar, while reaching a maximum pressure of 10 bar. With this higher pressure capacity, the Smart 3.25 S Dry is suitable for demanding tasks that require steady and powerful airflow.
Built-in adsorption dryer
The main advantage of the Smart 3.25 S Dry is its adsorption dryer, which reduces the dew point to -20 °C. This ensures that the compressed air is extremely dry and safe for sensitive use. The unit meets ISO 8573-1 Class 4-3-0 standards, providing clean air that prevents moisture, corrosion, and contamination in equipment and products.
Durable and quiet design
The compressor features a 24-liter epoxy-coated tank, treated inside and outside for long-lasting durability. Despite its higher performance, it remains quiet, producing only 67 dB at 3 meters and 5 bar - about the same as normal office noise. Its compact design makes it easy to place in smaller spaces.
Technical highlights
-
Voltage: 230 V, 50 Hz - Absorption: 8.5 A
-
Motor: 1.8 kW (2.4 HP), 2 cylinders
-
Air intake: 240 L/min
-
Air delivery: 155 L/min at 5 bar, 120 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 24 L, epoxy coated
-
Noise level: 67 dB
-
Dimensions: 420 × 500 × 830 mm
-
Weight: 43 kg (45 kg packaged)
-
Options: Hour meter, automatic tank drain valve
The Gentilin Smart 3.25 S Dry is the right choice if you need a compact, quiet, and oil-free compressor with advanced drying for consistent, moisture-free air.
Manual Download
Catalog Download
Certifications Download
| Technical Data | |
|---|---|
| Condensate Treatment | Adsorption Dryer | Dew Point -20°C |
| Particulate Treatment | - |
| Air purity class (ISO 8573-1) | 4-3-0 |
| Voltage (V) | 230,00 |
| Frequency (Hz) | 50,00 |
| Nominal rating (kW) | 1,80 |
| Nominal rating (HP) | 2,40 |
| Rotation speed (rpm) | 1.400,00 |
| Absorption (A) | 8,50 |
| Number of cylinders | 2 |
| Air intake (L/min) | 240,00 |
| Air Delivery (L/min @5 bar) | 155,00 |
| Air Delivery (L/min @8 bar) | 120,00 |
| Maximum pressure (bar) | 10,00 |
| Noise level (3,00m @ 5,00 bar) (dB(A)) | 67,00 |
| Duty cycle | S3 70% |
| Tank Coating | Epoxy (interior/exterior) |
| Tank capacity (lt) | 24,00 |
| First Maintenance (hours) | - |
| Hour Meter | Optional |
| Tank Automatic Drain Valve | Optional |
| Product Dimensions | |||
|---|---|---|---|
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
| 420,00 | 500,00 | 830,00 | 43,00 |
| Single Piece Packaging Dimensions | |||
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
| 570,00 | 680,00 | 950,00 | 45,00 |
| Full Pallet Packaging | |||
| Dimensions (cm) - LxWxH | Weight (Kg) | Pieces | |
| 1140x680x1900 | 200,00 | 4 | |

**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
