GENTILIN - SCR750/TP - Air Compressor 400-50V-Hz PREMIUM

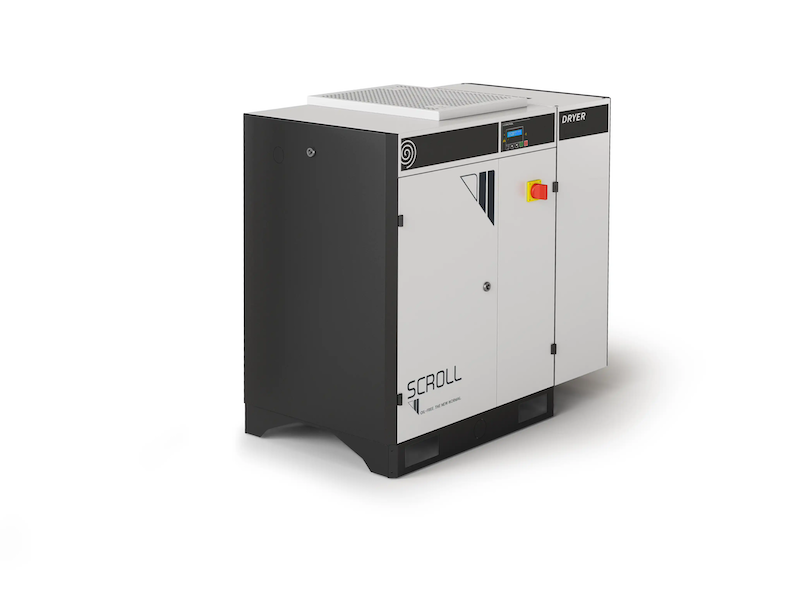

Gentilin SCR750/TP – Quiet Oil-Free Scroll Compressor with Refrigerant Dryer + PLC (270L Tank)
The Gentilin SCR750/TP is a premium oil-free scroll compressor built for demanding users who need very high airflow, dry compressed air, and quiet operation. With a powerful 7.5 HP motor, a built-in refrigerant dryer, and PLC management with star/delta start, it ensures reliable performance for clinics, laboratories, and industries that require clean, dry, and steady air.
Very powerful and continuous performance
Powered by a 5.5 kW (7.5 HP) motor running at 3,180 rpm, the compressor delivers up to 630 L/min at 8 bar with a maximum pressure of 10 bar. Its S1 duty cycle (100% continuous operation) makes it capable of running all day without interruption, making it the right choice for heavy workloads.
Built-in refrigerant dryer
The integrated refrigerant dryer ensures a dew point of around +5 °C, keeping compressed air dry and preventing moisture buildup in sensitive systems. Optional particle filters can also be added for applications that demand even higher air purity.
PLC control and star/delta start
The star/delta start system guarantees smooth motor startup, reducing electrical stress and extending lifespan. The advanced PLC (Programmable Logic Controller) allows easy monitoring, diagnostics, and operation control, ensuring stable and safe performance.
Oil-free Class 0 air
The SCR750/TP supplies ISO 8573-1 Class 0 oil-free compressed air, guaranteeing no oil contamination. Combined with the refrigerant dryer, it delivers dry and clean air suitable for medical facilities, dental clinics, pharmaceutical production, laboratories, and food industries.
270L protected tank
The compressor is equipped with a 270-liter tank, treated with epoxy on the outside and Teflon on the inside. This dual protection ensures resistance against corrosion and extends service life under continuous operation.
Quiet and efficient operation
Despite its high power, the compressor produces only 67 dB, much quieter than traditional piston compressors of the same size. It comes with an hour meter as standard, and maintenance is simple with the first service required only after 8,000 hours.
Technical highlights
-
Voltage: 400 V, 50 Hz
-
Motor: 5.5 kW (7.5 HP)
-
Air delivery: 630 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 270 L, epoxy (external) + Teflon (internal)
-
Duty cycle: S1 100% continuous duty
-
Noise level: 67 dB
-
First maintenance: 8,000 hours
-
Built-in refrigerant dryer (+5 °C dew point)
-
Air quality: ISO 8573-1 Class X-4-0
-
Dimensions: 1184 × 606 × 1474 mm
-
Weight: 230 kg
-
Star/Delta start + PLC control
The Gentilin SCR750/TP is the perfect choice for professionals who need a very powerful, quiet, and oil-free scroll compressor with a built-in refrigerant dryer, advanced PLC management, and a corrosion-protected 270L tank, delivering dry and clean air all day long.
Catalog Download
Certifications Download
| Condensate Treatment | Refrigerant dryer included |
|---|---|
| Particulate Treatment | Optional |
| Air purity class (ISO 8573-1) | X-4-0 |
| Voltage (V) | 400.00 |
| Frequency (Hz) | 50.00 |
| Nominal rating (kW) | 5.50 |
| Nominal rating (HP) | 7.50 |
| Rotation speed (rpm) | 3,180.00 |
| Absorption (A) | - |
| Number of cylinders | - |
| Air intake (L/min) | - |
| Air Delivery (L/min @5 bar) | - |
| Air Delivery (L/min @8 bar) | 630.00 |
| Maximum pressure (bar) | 10.00 |
| Noise level (3.00m @ 5.00 bar) (dB(A)) | 67.00 |
| Duty cycle | S1 100% |
| Tank Coating | Epoxy (external) - Teflon (internal) |
| Tank capacity (lt) | - |
| First Maintenance (hours) | 8000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | - |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
