GENTILIN - SCR300/TP - Air Compressor 400-50V-Hz PREMIUM

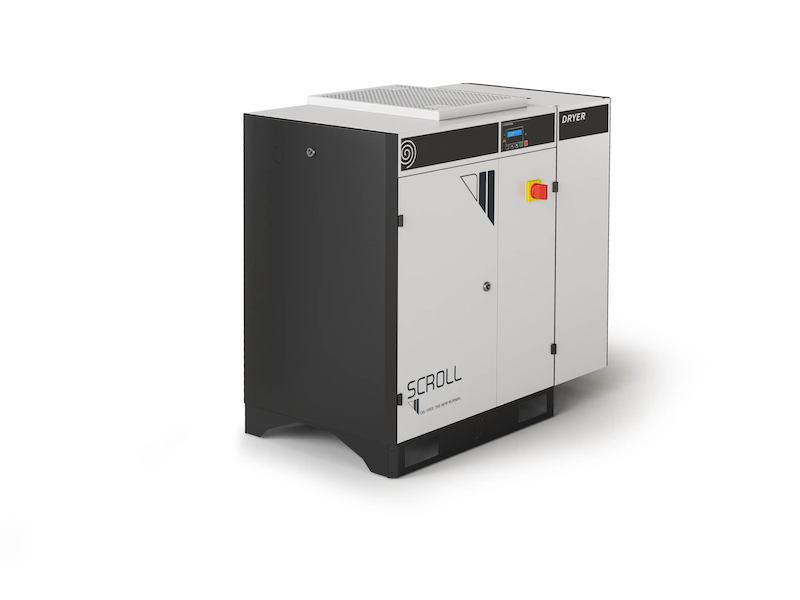

Gentilin SCR300/TP Scroll - Quiet Oil-Free Compressor with Refrigerant Dryer + PLC (270L Tank)
The Gentilin SCR300/TP is a premium oil-free scroll compressor designed for professionals who need dry, clean, and reliable compressed air every day. Built in Italy, it combines advanced scroll technology, a built-in refrigerant dryer, and PLC management with star/delta start, ensuring smooth, efficient, and continuous operation.
Steady and reliable performance
Powered by a 2.2 kW (3 HP) motor running at 3,250 rpm, this compressor delivers 240 L/min at 8 bar and can reach a maximum pressure of 10 bar. Thanks to its S1 duty cycle (100% continuous use), it can operate all day without interruption, making it perfect for clinics, laboratories, and industrial applications.
Built-in refrigerant dryer for dry air
The integrated refrigerant dryer lowers the dew point to around +5 °C, ensuring consistently dry air and preventing moisture damage in sensitive systems. Optional particle treatment can also be added to further improve air purity when required.
PLC management and star/delta start
The star/delta start system reduces electrical stress during startup, protecting the motor and extending lifespan. The integrated PLC (Programmable Logic Controller) allows simple monitoring, diagnostics, and operational control, providing maximum efficiency and reliability.
Oil-free Class 0 air quality
The SCR300/TP supplies ISO 8573-1 Class 0 oil-free air, meaning no oil contamination risk. This makes it ideal for environments that demand pure air, such as medical centers, dental clinics, laboratories, pharmaceutical plants, and food processing facilities.
270L epoxy + Teflon protected tank
The unit is equipped with a 270-liter tank, coated with epoxy on the outside and Teflon on the inside. This dual protection prevents corrosion and extends durability, ensuring reliable operation for many years.
Quiet and low-maintenance
Despite its strong output, the compressor produces only 64 dB, making it one of the quietest in its class. It comes with an hour meter, and thanks to its design, the first maintenance is required only after 8,000 hours, reducing downtime and costs.
Technical highlights
-
Voltage: 400 V, 50 Hz
-
Motor: 2.2 kW (3 HP)
-
Air delivery: 240 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 270 L, epoxy (external) + Teflon (internal)
-
Duty cycle: S1 100% continuous duty
-
Noise level: 64 dB
-
First maintenance: 8,000 hours
-
Built-in refrigerant dryer (+5 °C dew point)
-
Air quality: ISO 8573-1 Class X-4-0
-
Dimensions: 1184 × 606 × 1474 mm
-
Weight: 228 kg
-
Star/Delta start + PLC control
The Gentilin SCR300/TP is the best choice for professionals who need a quiet, oil-free scroll compressor with a built-in refrigerant dryer, advanced PLC management, and a durable 270L tank, providing steady and dry compressed air every day.
Catalog Download
Certifications Download
| Condensate Treatment | Refrigerant dryer included |
|---|---|
| Particulate Treatment | Optional |
| Air purity class (ISO 8573-1) | X-4-0 |
| Voltage (V) | 400.00 |
| Frequency (Hz) | 50.00 |
| Nominal rating (kW) | 2.20 |
| Nominal rating (HP) | 3.00 |
| Rotation speed (rpm) | 3,250.00 |
| Absorption (A) | - |
| Number of cylinders | - |
| Air intake (L/min) | - |
| Air Delivery (L/min @5 bar) | - |
| Air Delivery (L/min @8 bar) | 240.00 |
| Maximum pressure (bar) | 10.00 |
| Noise level (3.00m @ 5.00 bar) (dB(A)) | 64.00 |
| Duty cycle | S1 100% |
| Tank Coating | Epoxy (external) - Teflon (internal) |
| Tank capacity (lt) | - |
| First Maintenance (hours) | 8000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | - |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
