GENTILIN - SCR300/SP - Air Compressor 230-50V-Hz PREMIUM

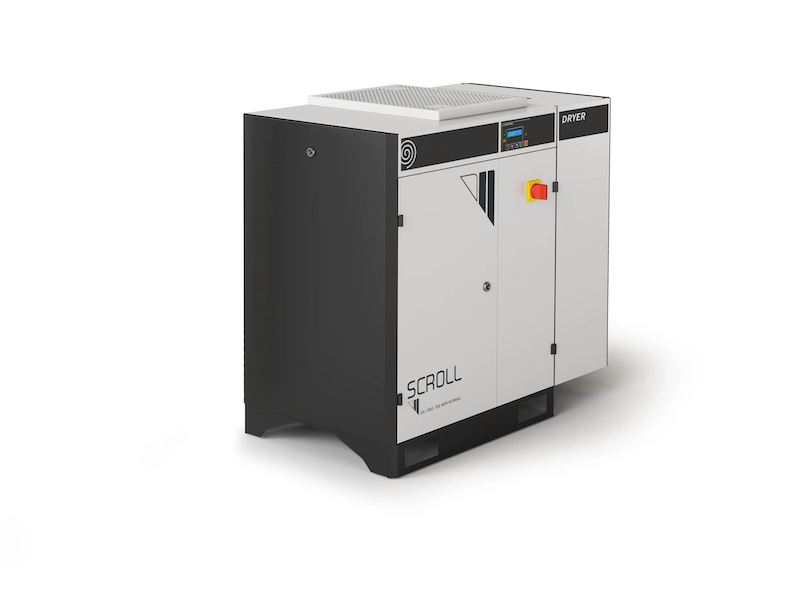

Gentilin SCR300/SP Scroll - Quiet Oil-Free Compressor with Refrigerant Dryer + PLC (270L Tank)
The Gentilin SCR300/SP is a premium oil-free scroll compressor that combines quiet performance, advanced PLC control, and a built-in refrigerant dryer to deliver dry and clean compressed air. Designed for professionals who need reliable, oil-free air supply, it is ideal for clinics, laboratories, and industrial environments where air purity and low noise are essential.
Steady and powerful performance
This compressor runs on a 2.2 kW (3 HP) motor at 3,250 rpm, delivering 240 L/min at 8 bar, with a maximum pressure of 10 bar. Its S1 duty cycle (100% continuous operation) allows it to run all day without interruption, making it highly reliable for steady workflows.
Refrigerant dryer for dry air
Unlike standard scroll compressors, the SCR300/SP comes with a built-in refrigerant dryer, reducing the dew point to around +5 °C. This ensures consistent dry air, preventing moisture from damaging sensitive equipment. Optional particle filters can be added for applications requiring extra air purity.
Premium control with PLC and star/delta start
The star/delta start system ensures smooth motor startup with reduced electrical stress, while the integrated PLC (Programmable Logic Controller) provides easy monitoring, diagnostics, and reliable management of the compressor’s operation.
Oil-free Class 0 air quality
The compressor produces ISO 8573-1 Class 0 oil-free compressed air, ensuring no oil contamination. Combined with the dryer, it provides clean and dry air, suitable for medical, dental, laboratory, pharmaceutical, and food industry applications.
Large 270L corrosion-resistant tank
The compressor is fitted with a 270-liter receiver tank, coated with epoxy on the outside and Teflon on the inside, preventing corrosion and ensuring durability. This makes it suitable for long-term, heavy-duty use.
Quiet and low-maintenance
Despite its strength, the SCR300/SP operates at only 64 dB, making it one of the quietest compressors in its category. It includes an hour meter for tracking operation, and its first maintenance is required only after 8,000 hours, lowering service costs.
Technical highlights
-
Voltage: 230 V, 50 Hz
-
Motor: 2.2 kW (3 HP)
-
Air delivery: 240 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 270 L, epoxy (external) + Teflon (internal)
-
Duty cycle: S1 100% continuous duty
-
Noise level: 64 dB
-
First maintenance: 8,000 hours
-
Built-in refrigerant dryer (+5 °C dew point)
-
Air quality: ISO 8573-1 Class X-4-0
-
Dimensions: 1184 × 606 × 1474 mm
-
Weight: 228 kg
The Gentilin SCR300/SP is the ideal solution for professionals who need a quiet, oil-free scroll compressor with a built-in refrigerant dryer, PLC control, and a durable 270L tank, ensuring steady, dry, and clean air every day.
Catalog Download
Certifications Download
| Condensate Treatment | Refrigerant dryer included |
|---|---|
| Particulate Treatment | Optional |
| Air purity class (ISO 8573-1) | X-4-0 |
| Voltage (V) | 230.00 |
| Frequency (Hz) | 50.00 |
| Nominal rating (kW) | 2.20 |
| Nominal rating (HP) | 3.00 |
| Rotation speed (rpm) | 3,250.00 |
| Absorption (A) | - |
| Number of cylinders | - |
| Air intake (L/min) | - |
| Air Delivery (L/min @5 bar) | - |
| Air Delivery (L/min @8 bar) | 240.00 |
| Maximum pressure (bar) | 10.00 |
| Noise level (3.00m @ 5.00 bar) (dB(A)) | 64.00 |
| Duty cycle | S1 100% |
| Tank Coating | Epoxy (external) - Teflon (internal) |
| Tank capacity (lt) | - |
| First Maintenance (hours) | 8000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | - |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
