GENTILIN - SCA300/T - Compressor 400-50V-Hz

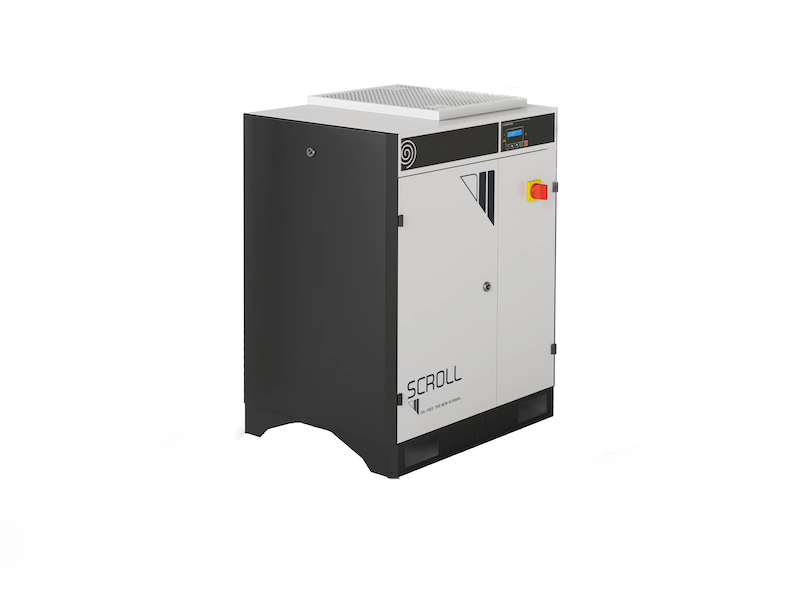

Gentilin SCA300/T Scroll- Quiet Oil-Free Compressor with 270L Tank
The Gentilin SCA300/T is a powerful and reliable oil-free scroll compressor designed for clinics, laboratories, and industries that need a steady and contamination-free air supply. Built in Italy, it combines advanced scroll technology, continuous-duty operation, and a large 270-liter tank for long-lasting performance.
Strong and continuous performance
This compressor is powered by a 2.2 kW (3 HP) motor operating at 3,250 rpm. It delivers 240 L/min at 8 bar, with a maximum pressure of 10 bar. Thanks to its S1 duty cycle (100% on), the SCA300/T is designed for uninterrupted use, ensuring a reliable and steady airflow all day.
Oil-free Class 0 air quality
The scroll system produces ISO Class 0 oil-free air, meaning no oil contamination risk. This makes it ideal for sensitive environments such as medical centers, dental clinics, laboratories, pharmaceutical production, and food or beverage processing.
Large 270L protected tank
Equipped with a 270-liter tank, the unit provides a strong air reserve for steady operation during demanding applications. The tank is coated with epoxy on the outside and Teflon on the inside, ensuring maximum protection against corrosion and extending its service life.
Quiet operation
Despite its power, the SCA300/T runs at just 64 dB, much quieter than traditional compressors. This makes it suitable for installation in noise-sensitive environments such as clinics and labs.
Reliable and low-maintenance
The compressor comes with an hour meter as standard. Optional condensate treatment and particle filters can be added if needed. With a first maintenance interval of 8,000 hours, it offers excellent reliability and low running costs.
Technical highlights
-
Voltage: 400 V, 50 Hz
-
Motor: 2.2 kW (3 HP)
-
Air delivery: 240 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 270 L, epoxy (external) + Teflon (internal)
-
Duty cycle: S1 100% continuous duty
-
Noise level: 64 dB
-
First maintenance: 8,000 hours
-
Dimensions: 1184 × 606 × 1474 mm
-
Weight: 198 kg
The Gentilin SCA300/T is the ideal solution for professionals who need a quiet, oil-free scroll compressor with a large 270L tank for reliable and continuous clean air.
Catalog Download
Certifications Download
| Condensate Treatment | Optional |
|---|---|
| Particulate Treatment | Optional |
| Air purity class (ISO 8573-1) | X-X-0 |
| Voltage (V) | 400.00 |
| Frequency (Hz) | 50.00 |
| Nominal rating (kW) | 2.20 |
| Nominal rating (HP) | 3.00 |
| Rotation speed (rpm) | 3,250.00 |
| Absorption (A) | - |
| Number of cylinders | - |
| Air intake (L/min) | - |
| Air Delivery (L/min @5 bar) | - |
| Air Delivery (L/min @8 bar) | 240.00 |
| Maximum pressure (bar) | 10.00 |
| Noise level (3.00m @ 5.00 bar) (dB(A)) | 64.00 |
| Duty cycle | S1 100% |
| Tank Coating | Epoxy (external) - Teflon (internal) |
| Tank capacity (lt) | - |
| First Maintenance (hours) | 8000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | - |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
