GENTILIN - SCA300/S - Air Compressor 230-50V-Hz

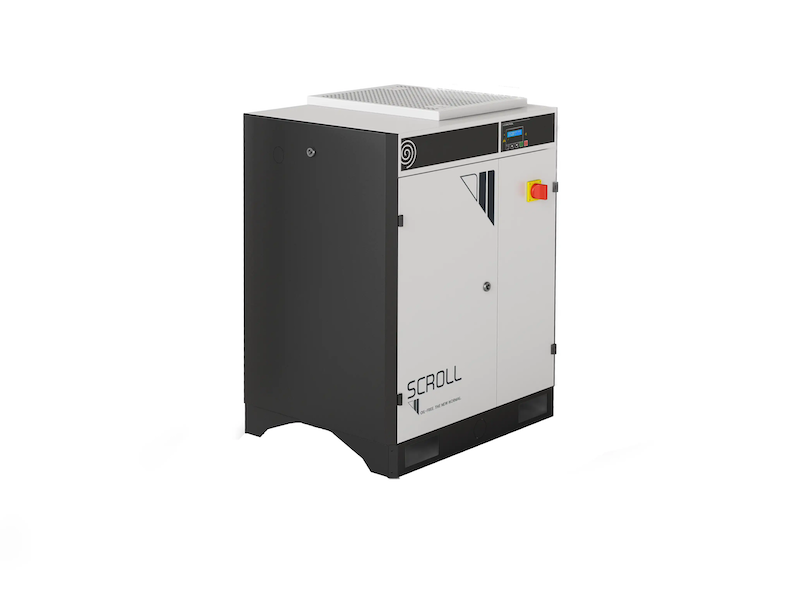

Gentilin SCA300/S Scroll- Quiet Oil-Free Compressor (with Coated Tank)
The Gentilin SCA300/S is a high-performance oil-free scroll compressor designed for users who need a steady, quiet, and contamination-free air supply. Built in Italy, it combines modern scroll technology with durable tank protection and continuous-duty performance, making it suitable for medical, laboratory, and industrial applications.
Strong and reliable performance
Equipped with a 2.2 kW (3 HP) motor, the compressor delivers up to 240 L/min at 8 bar and can reach a maximum pressure of 10 bar. Thanks to its S1 duty cycle (100% on), it is capable of running continuously, ensuring a reliable supply of compressed air all day.
Oil-free Class 0 air
Using scroll technology, the SCA300/S produces ISO Class 0 oil-free air, ensuring no risk of oil contamination. This makes it ideal for medical, food, and laboratory applications where clean air is critical.
Durable coated tank
The tank is treated with epoxy coating on the outside and Teflon coating inside, giving long-lasting protection against rust and corrosion. This ensures safe use in environments where hygiene and durability are essential.
Quiet operation
Despite its strength, the compressor runs at only 64 dB, which is much quieter than traditional piston models. This makes it suitable for installation in noise-sensitive environments such as clinics, labs, or workplaces where quiet operation is required.
Options and maintenance
The SCA300/S comes with an hour meter as standard, while condensate treatment and particle filtration can be added if needed. With the first maintenance required after 8,000 hours, the unit offers long service intervals and low operating costs.
Technical highlights
-
Voltage: 230 V, 50 Hz
-
Motor: 2.2 kW (3 HP)
-
Air delivery: 240 L/min at 8 bar
-
Max pressure: 10 bar
-
Noise level: 64 dB
-
Duty cycle: S1 100% continuous duty
-
Tank coating: Epoxy (external) + Teflon (internal)
-
First maintenance: 8,000 hours
The Gentilin SCA300/S is the ideal choice for professionals who need a quiet, reliable, and oil-free scroll compressor with a durable coated tank for continuous operation.
Catalog Download
Certifications Download
| Condensate Treatment | Optional |
|---|---|
| Particulate Treatment | Optional |
| Air purity class (ISO 8573-1) | X-X-0 |
| Voltage (V) | 230.00 |
| Frequency (Hz) | 50.00 |
| Nominal rating (kW) | 2.20 |
| Nominal rating (HP) | 3.00 |
| Rotation speed (rpm) | 3,250.00 |
| Absorption (A) | - |
| Number of cylinders | - |
| Air intake (L/min) | - |
| Air Delivery (L/min @5 bar) | - |
| Air Delivery (L/min @8 bar) | 240.00 |
| Maximum pressure (bar) | 10.00 |
| Noise level (3.00m @ 5.00 bar) (dB(A)) | 64.00 |
| Duty cycle | S1 100% |
| Tank Coating | Epoxy (external) - Teflon (internal) |
| Tank capacity (lt) | - |
| First Maintenance (hours) | 8000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | - |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
