GENTILIN - Qube 550/270 R - Air Compressor With Refrigerant Dryer 400-50V-Hz

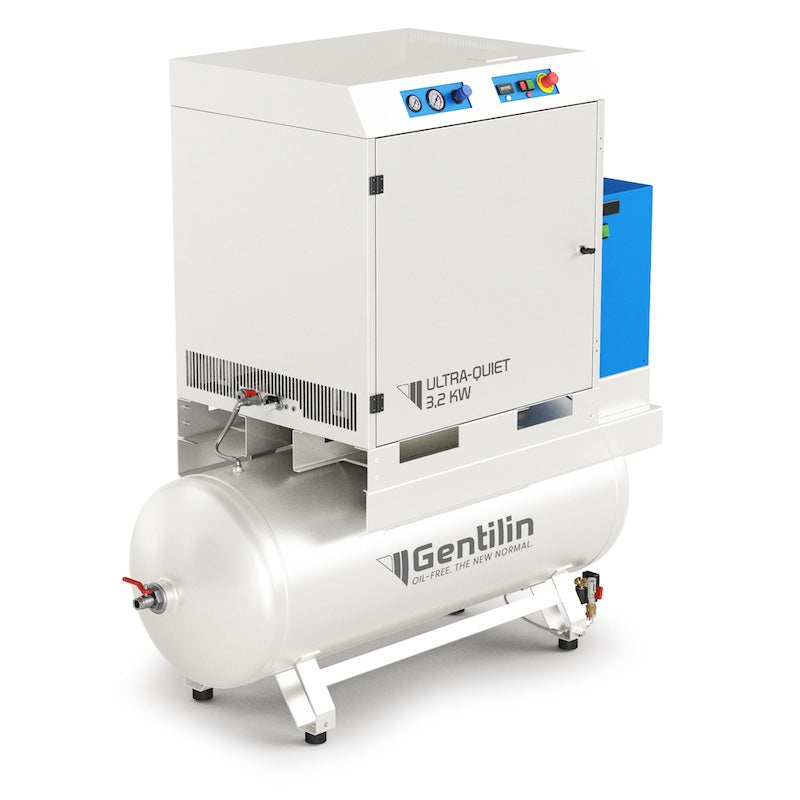

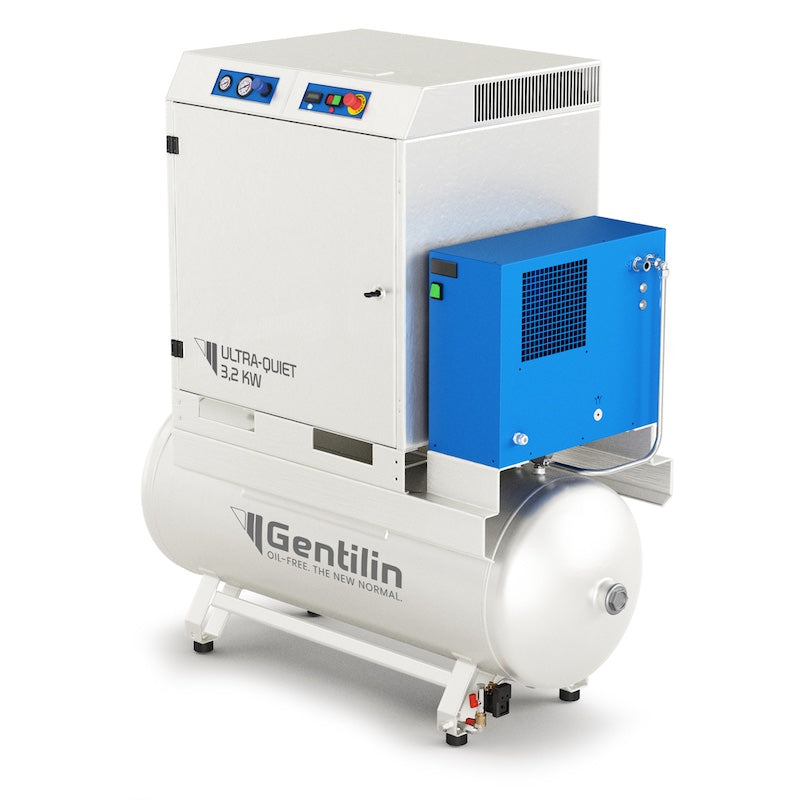

Gentilin Qube 550/270 R - Ultra-Quiet Oil-Free Compressor with Refrigerant Dryer (270L Tank)
The Gentilin Qube 550/270 R is a powerful, quiet compressor designed for professionals who need a steady supply of dry, oil-free air with low noise. Built in Italy, it combines a high-output motor, a built-in refrigerant dryer, and a large 270-liter tank, making it ideal for clinics, laboratories, workshops, and industrial environments.
Strong and continuous performance
This compressor is powered by a 4.0 kW (5.5 HP) motor with four cylinders, running at 1,400 rpm. It delivers an air intake of 660 L/min, with 430 L/min at 5 bar and 380 L/min at 8 bar, reaching a maximum pressure of 10 bar. With its S1 duty cycle (100% on), the Qube 550/270 R is built for continuous operation, ensuring a reliable flow of compressed air during long workdays.
Built-in refrigerant dryer
The integrated refrigerant dryer reduces the dew point to +5 °C, removing moisture from compressed air. This protects equipment, tools, and processes from water damage. The unit delivers air quality in line with ISO 8573-1 Class X-5-0, which is perfect for applications that require dry, oil-free air but do not need the extremely low dew points of membrane or adsorption dryers.
Large 270L tank with epoxy coating
The Qube 550/270 R includes a 270-liter epoxy-coated tank, protected inside and outside against corrosion. This large air reserve ensures stable performance and reduces compressor cycling, supporting efficiency during demanding use.
Extremely low noise
Despite its power and airflow, the Qube 550/270 R operates at just 52 dB measured at 3 meters and 5 bar. This ultra-low noise makes it suitable for installation in clinics, laboratories, and offices where silence is important.
Standard features
The compressor comes with an hour meter for workload monitoring. An automatic condensate drain valve is available as an option. With a first maintenance interval of 10,000 hours, this model ensures long-term reliability with minimal upkeep.
Technical highlights
-
Voltage: 400 V, 50 Hz - Absorption: 16 A
-
Motor: 4.0 kW (5.5 HP), 4 cylinders
-
Air intake: 660 L/min
-
Air delivery: 430 L/min at 5 bar, 380 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 270 L, epoxy coated
-
Duty cycle: S1 100% continuous duty
-
Noise level: 52 dB
-
Dimensions: 1590 × 660 × 1550 mm
-
Weight: 275 kg (305 kg packaged)
The Gentilin Qube 550/270 R is the right choice for professionals who need a quiet, oil-free compressor with a refrigerant dryer and a large tank for continuous daily use.
Catalog Download
Certifications Download
| Condensate Treatment | Refrigerant | +5°C |
|---|---|
| Particulate Treatment | - |
| Air purity class (ISO 8573-1) | X-5-0 |
| Voltage (V) | 400.00 |
| Frequency (Hz) | 50.00 |
| Nominal rating (kW) | 4.00 |
| Nominal rating (HP) | 5.50 |
| Rotation speed (rpm) | 1,400.00 |
| Absorption (A) | 16.00 |
| Number of cylinders | 4 |
| Air intake (L/min) | 660.00 |
| Air Delivery (L/min @5 bar) | 430.00 |
| Air Delivery (L/min @8 bar) | 380.00 |
| Maximum pressure (bar) | 10.00 |
| Noise level (3.00m @ 5.00 bar) (dB(A)) | 52.00 |
| Duty cycle | S1 100% |
| Tank Coating | Epoxy (internal/external) |
| Tank capacity (lt) | 270.00 |
| First Maintenance (hours) | 10000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | Optional |
