GENTILIN - Qube 550/270 H - Dry Air Compressor 400-50V-Hz

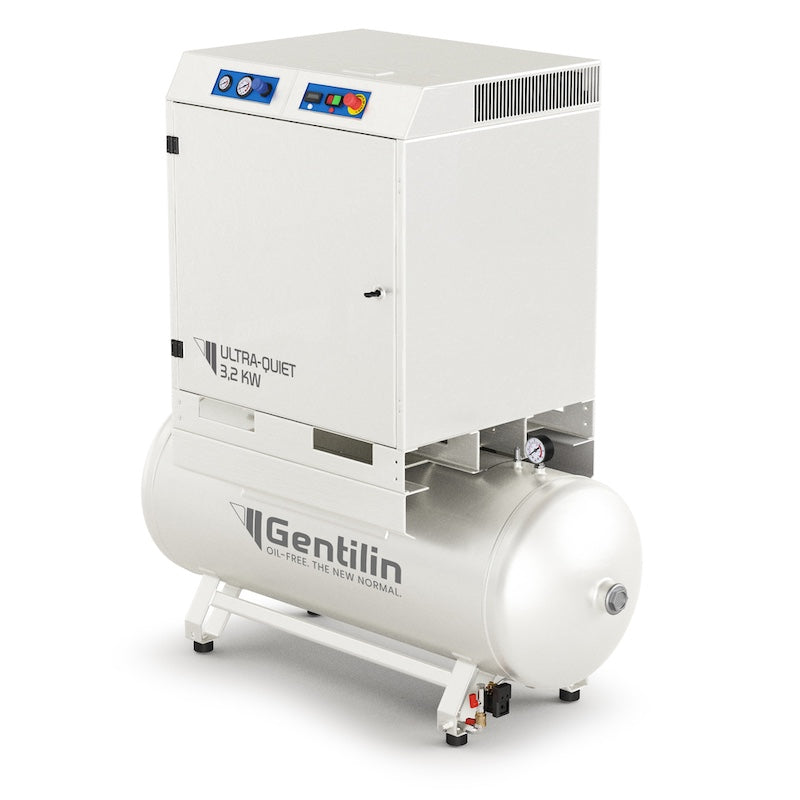

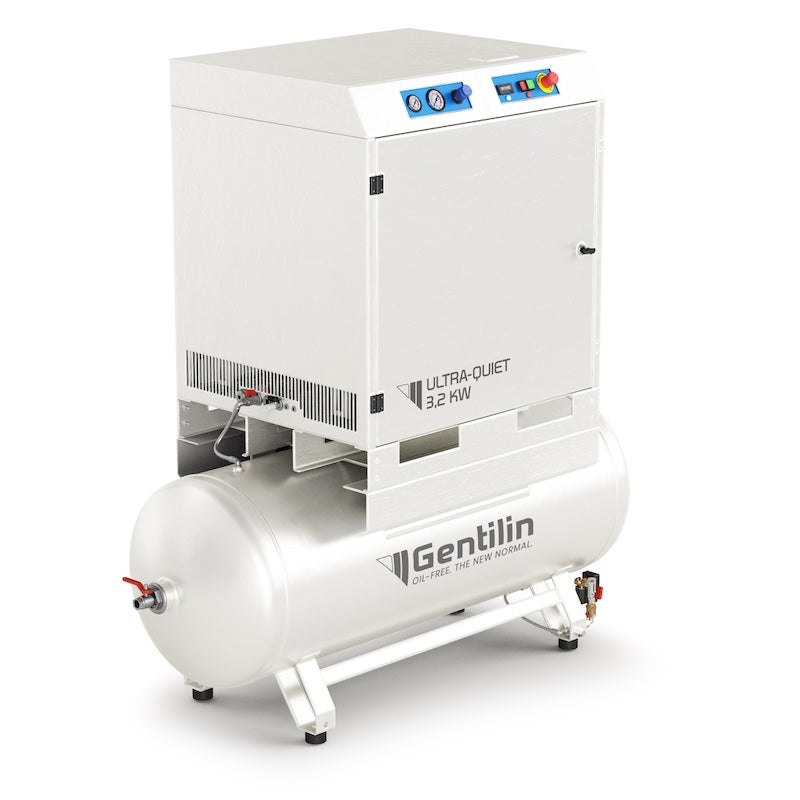

Gentilin Qube 550/270 H Dry - Ultra-Quiet Oil-Free Compressor with Membrane Dryer (270L Tank)
The Gentilin Qube 550/270 H Dry is a high-performance compressor designed for professionals who need very dry and oil-free air with low noise. Built in Italy, it combines continuous-duty operation, advanced membrane drying technology, and a large 270-liter tank, making it ideal for clinics, laboratories, and industries where both reliability and air quality are essential.
Strong and continuous performance
This compressor is powered by a 4.0 kW (5.5 HP) motor with four cylinders, operating at 1,400 rpm. It delivers an air intake of 660 L/min, with 360 L/min at 5 bar and 300 L/min at 8 bar, while reaching a maximum pressure of 10 bar. With its S1 duty cycle (100% on), the Qube 550/270 H Dry can run non-stop all day, providing a stable and reliable air supply for demanding applications.
Advanced membrane dryer
The integrated membrane dryer lowers the dew point to -40 °C and removes particles down to 0.3 µm, delivering compressed air that meets ISO 8573-1 Class 3-2-0 standards. This ensures dry, clean air that prevents moisture-related issues and protects sensitive equipment and processes.
Large 270L tank with epoxy coating
The compressor is fitted with a 270-liter tank, coated internally and externally with epoxy for corrosion protection and long-lasting durability. The large air storage capacity provides a stable reserve, reducing start-stop cycles and improving efficiency during extended use.
Ultra-quiet operation
Despite its power and airflow, the Qube 550/270 H Dry operates at only 52 dB measured at 3 meters and 5 bar. This makes it suitable for installation in clinics, labs, or offices where silence is required.
Reliable and low-maintenance
The compressor includes an hour meter to monitor usage. An automatic condensate drain valve is available as an option. Maintenance is minimal, with the first service required only after 10,000 hours, ensuring long-term reliability and low operating costs.
Technical highlights
-
Voltage: 400 V, 50 Hz - Absorption: 16 A
-
Motor: 4.0 kW (5.5 HP), 4 cylinders
-
Air intake: 660 L/min
-
Air delivery: 360 L/min at 5 bar, 300 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 270 L, epoxy coated
-
Duty cycle: S1 100% continuous duty
-
Noise level: 52 dB
-
Dimensions: 1590 × 660 × 1550 mm
-
Weight: 275 kg (305 kg packaged)
The Gentilin Qube 550/270 H Dry is the perfect choice for professionals who need a quiet, oil-free compressor with membrane drying technology and a large tank for constant, reliable use.
Catalog Download
Certifications Download
| Condensate Treatment | Membrane dryer | Dew Point -40°C |
|---|---|
| Particulate Treatment | 0.3 µm |
| Air purity class (ISO 8573-1) | 3-2-0 |
| Voltage (V) | 400.00 |
| Frequency (Hz) | 50.00 |
| Nominal rating (kW) | 4.00 |
| Nominal rating (HP) | 5.50 |
| Rotation speed (rpm) | 1,400.00 |
| Absorption (A) | 16.00 |
| Number of cylinders | 4 |
| Air intake (L/min) | 660.00 |
| Air Delivery (L/min @5 bar) | 360.00 |
| Air Delivery (L/min @8 bar) | 300.00 |
| Maximum pressure (bar) | 10.00 |
| Noise level (3.00m @ 5.00 bar) (dB(A)) | 52.00 |
| Duty cycle | S1 100% |
| Tank Coating | Epoxy (internal/external) |
| Tank capacity (lt) | 270.00 |
| First Maintenance (hours) | 10000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | Optional |
