GENTILIN - Qube 300/270 R - Air Compressor With Refrigerant Dryer 230-50V-Hz

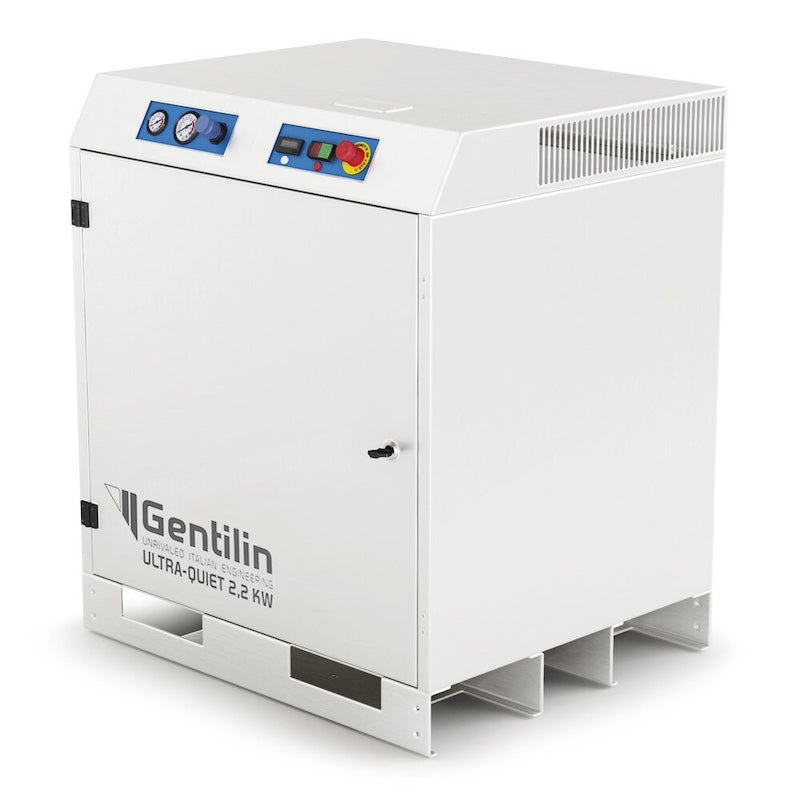

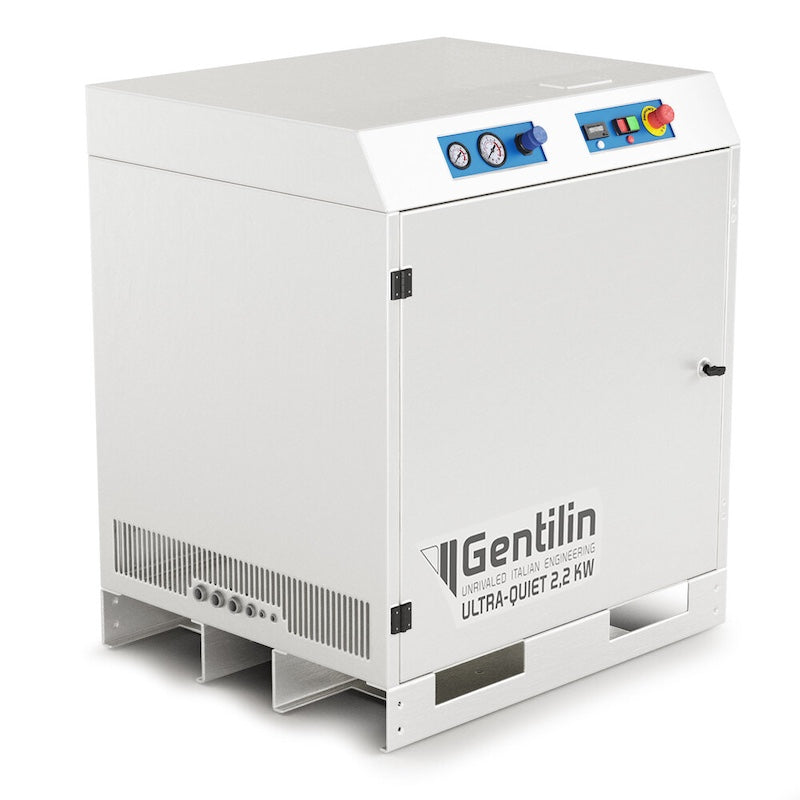

Gentilin Qube 300/270 R - Ultra Quiet Oil-Free Compressor with Refrigerant Dryer (270L Tank)
The Gentilin Qube 300/270 R is a quiet and reliable compressor designed to deliver dry, oil-free air with long-lasting performance. Built in Italy, it combines a refrigerant dryer, a large 270-liter tank, and continuous-duty operation, making it ideal for clinics, laboratories, workshops, and industrial environments that require a steady supply of dry compressed air without noise.
Strong and continuous performance
This model is powered by a 2.2 kW (3 HP) motor with two cylinders, operating at 1,400 rpm. It provides an air intake of 330 L/min, with 180 L/min at 5 bar and 160 L/min at 8 bar, reaching a maximum pressure of 10 bar. With its S1 duty cycle (100% on), the Qube 300/270 R can run all day without interruption, ensuring reliable airflow for demanding tasks.
Built-in refrigerant dryer
The standout feature of this version is its integrated refrigerant dryer, which lowers the dew point to +5 °C. This ensures moisture is removed from the compressed air, protecting tools, equipment, and processes from water damage. With air purity class ISO 8573-1 X-5-0, the Qube 300/270 R is suitable for applications that require dry, oil-free air but do not need the ultra-low dew point of membrane or adsorption dryers.
Large 270L tank with epoxy coating
The compressor is equipped with a 270-liter tank, coated inside and outside with epoxy for corrosion resistance and extended durability. This large tank provides a stable reserve of compressed air, reducing start-stop cycles and ensuring efficiency during long work periods.
Ultra-quiet operation
Despite its size, the Qube 300/270 R operates at just 47 dB measured at 3 meters and 5 bar, making it one of the quietest compressors in its category. It can be installed directly in clinics, labs, or offices without disturbing the environment.
Standard features
The compressor includes an hour meter for monitoring operation and scheduling maintenance. An automatic condensate drain valve is also available as an option. The first maintenance interval is only after 10,000 hours, ensuring long-term reliability with low running costs.
Technical highlights
-
Voltage: 230 V, 50 Hz - Absorption: 15 A
-
Motor: 2.2 kW (3 HP), 2 cylinders
-
Air intake: 330 L/min
-
Air delivery: 180 L/min at 5 bar, 160 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 270 L, epoxy coated
-
Duty cycle: S1 100% continuous duty
-
Noise level: 47 dB
-
Dimensions: 1590 × 660 × 1550 mm
-
Weight: 275 kg (305 kg packaged)
The Gentilin Qube 300/270 R is the perfect choice for professionals who need a quiet, oil-free compressor with a built-in refrigerant dryer and a large tank for reliable daily use.
Catalog Download
Certifications Download
| Condensate Treatment | Refrigerant | +5°C |
|---|---|
| Particulate Treatment | - |
| Air purity class (ISO 8573-1) | X-5-0 |
| Voltage (V) | 230.00 |
| Frequency (Hz) | 50.00 |
| Nominal rating (kW) | 2.20 |
| Nominal rating (HP) | 3.00 |
| Rotation speed (rpm) | 1,400.00 |
| Absorption (A) | 15.00 |
| Number of cylinders | 2 |
| Air intake (L/min) | 330.00 |
| Air Delivery (L/min @5 bar) | 180.00 |
| Air Delivery (L/min @8 bar) | 160.00 |
| Maximum pressure (bar) | 10.00 |
| Noise level (3.00m @ 5.00 bar) (dB(A)) | 47.00 |
| Duty cycle | S1 100% |
| Tank Coating | Epoxy (internal/external) |
| Tank capacity (lt) | 270.00 |
| First Maintenance (hours) | 10000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | Optional |
