GENTILIN - Qube 300/270 H - Dry Air Compressor 230-50V-Hz

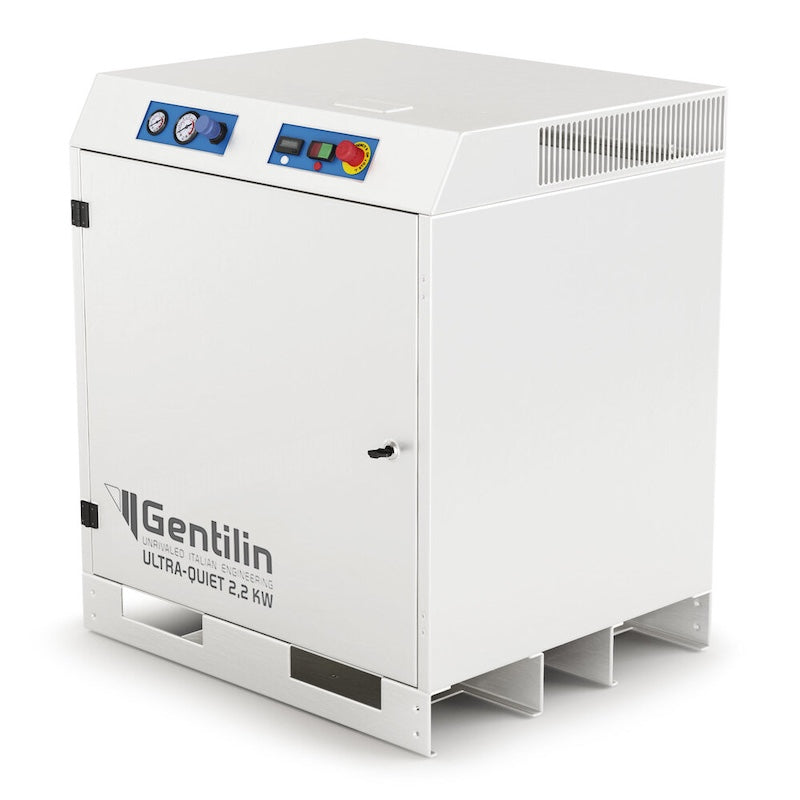

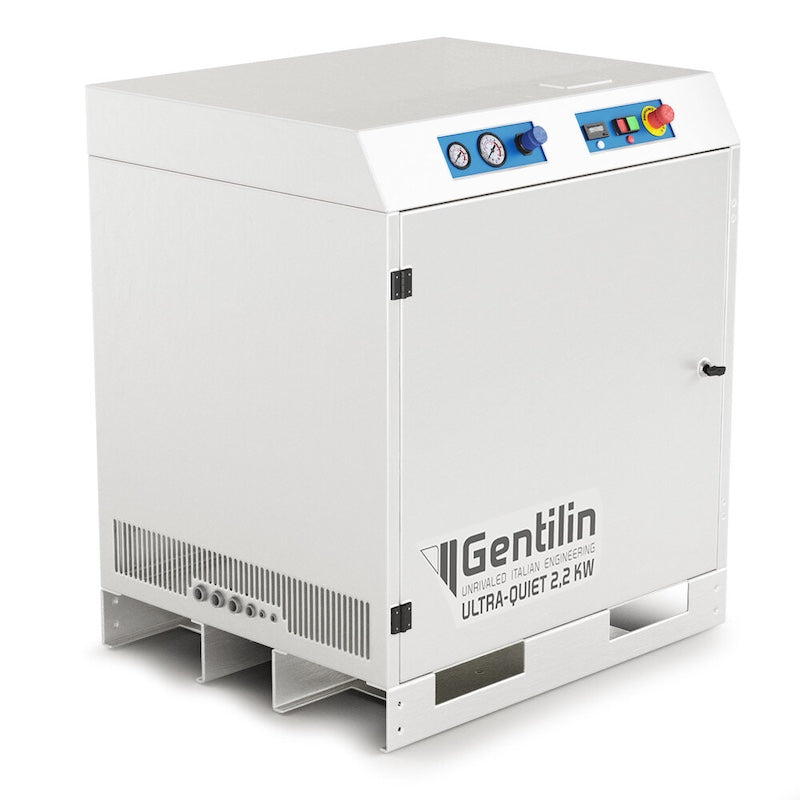

Gentilin Qube Dry 300/270 H Dry - Ultra Quiet Oil-Free Compressor with Membrane Dryer (270L Tank)
The Gentilin Qube Dry 300/270 H Dry is a high-performance compressor designed for professionals who need very dry, clean, and oil-free air with the lowest possible noise. Built in Italy, it combines continuous-duty operation, advanced membrane drying technology, and a large 270-liter tank, making it ideal for clinics, laboratories, and industrial facilities where reliability and silence are essential.
Strong and continuous performance
This compressor is powered by a 2.2 kW (3 HP) motor with two cylinders, running at 1,400 rpm. It offers an air intake of 330 L/min, with 180 L/min delivered at 5 bar and 160 L/min at 8 bar, while reaching a maximum pressure of 10 bar. With its S1 duty cycle (100% on), the Qube Dry 300/270 H Dry can operate non-stop throughout the day, ensuring a steady air supply for demanding applications.
Advanced membrane dryer
The built-in membrane dryer reduces the dew point to -40 °C, delivering very dry compressed air. It also filters particles down to 0.3 µm, ensuring purity levels in line with ISO 8573-1 Class 3-2-0. This level of air quality prevents moisture and particle contamination, protecting equipment and processes in sensitive environments.
Large 270L tank with epoxy coating
The compressor is equipped with a 270-liter tank, coated with epoxy both inside and outside to resist corrosion and extend durability. The large tank provides a stable reserve of compressed air, making it efficient for applications that require continuous and consistent performance.
Extremely low noise
Despite its size and power, the Qube Dry 300/270 H Dry operates at only 47 dB measured at 3 meters and 5 bar. This ultra-quiet performance allows it to be installed directly in clinics, labs, and offices without disturbing the environment.
Standard features
The compressor includes an hour meter for monitoring usage and scheduling maintenance. An automatic condensate drain valve is also included for convenience. The first maintenance interval is after 10,000 hours, ensuring low operating costs and long-term reliability.
Technical highlights
-
Voltage: 230 V, 50 Hz - Absorption: 15 A
-
Motor: 2.2 kW (3 HP), 2 cylinders
-
Air intake: 330 L/min
-
Air delivery: 180 L/min at 5 bar, 160 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 270 L, epoxy coated
-
Duty cycle: S1 100% continuous duty
-
Noise level: 47 dB
-
Dimensions: 1590 × 660 × 1550 mm
-
Weight: 275 kg (305 kg packaged)
The Gentilin Qube Dry 300/270 H Dry is the ideal choice for professionals who need a quiet, oil-free compressor with advanced drying technology and a large tank for long, reliable daily use.
Catalog Download
Certifications Download
| Condensate Treatment | Membrane dryer | Dew point -40 °C |
|---|---|
| Particulate Treatment | 0.3 µm |
| Air purity class (ISO 8573-1) | Class 3-2-0 |
| Voltage (V) | 230.00 |
| Frequency (Hz) | 50.00 |
| Nominal rating (kW) | 2.20 |
| Nominal rating (HP) | 3.00 |
| Rotation speed (rpm) | 1,400.00 |
| Absorption (A) | 15.00 |
| Number of cylinders | 2 |
| Air intake (L/min) | 330.00 |
| Air Delivery (L/min @5 bar) | 210.00 |
| Air Delivery (L/min @8 bar) | 185.00 |
| Maximum pressure (bar) | 10 |
| Noise level (3.00m @ 5.00 bar) (dB(A)) | 47.00 |
| Duty cycle | S1 100% |
| Tank Coating | Epoxy (internal/external) |
| Tank capacity (lt) | 270.00 |
| First Maintenance (hours) | 10000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | Included |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 1590.00 | 660.00 | 1550.00 | 275.00 |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 1700.00 | 750.00 | 1700.00 | 305.00 |
| Dimensions (cm) - LxWxH | Weight (Kg) | Pieces |
|---|---|---|
| 1700x750x1700 | 305.00 | 1 |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
