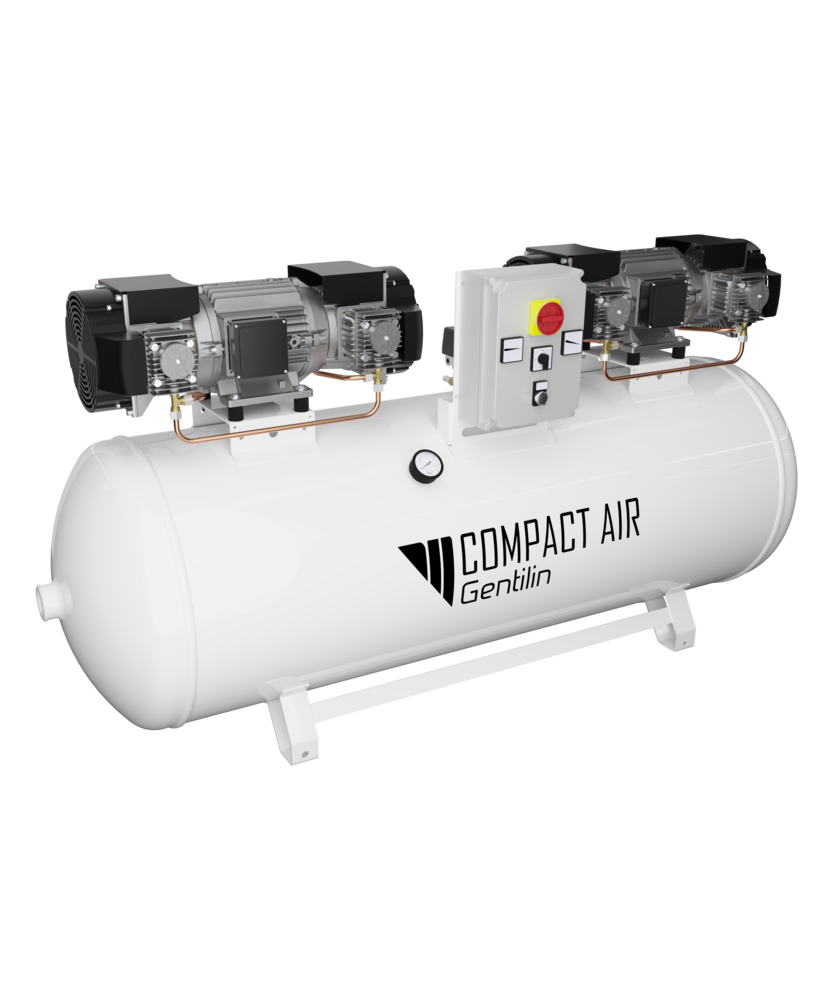

GENTILIN - Hush ESK 960/500 - Air Compressor 400-50V-Hz
Gentilin Hush ESK 960/500 - Quiet Oil-Free Compressor with Large 500L Tank
The Gentilin Hush ESK 960/500 is the most powerful model in the Hush range, designed for big, constant jobs that require strong and reliable compressed air. Built in Italy, it delivers very high airflow, quiet operation for its size, and continuous-duty reliability, making it ideal for industrial facilities, workshops, and large-scale projects.
Strong and continuous performance
This model is powered by a 6.0 kW (8 HP) motor with eight cylinders, running at 1,400 rpm. It provides an air intake of 960 L/min, with 620 L/min delivered at 5 bar and 480 L/min at 8 bar, while reaching a maximum pressure of 10 bar. With its S1 duty cycle (100% on), the Hush ESK 960/500 can operate all day without interruption, guaranteeing constant airflow for heavy-duty use.
Large 500L tank with epoxy coating
The compressor comes with a 500-liter tank, coated with epoxy inside and outside for corrosion resistance and long-lasting durability. The large tank capacity makes it perfect for applications that demand a steady air reserve with minimal interruptions.
Quiet operation for its size
Despite its high capacity, the compressor maintains a controlled sound level of 77 dB measured at 3 meters and 5 bar. For a unit of this scale, it offers impressive acoustic comfort, making it more suitable for large facilities compared to traditional industrial compressors.
Included and optional features
The compressor includes an hour meter to monitor operating hours and plan maintenance effectively. Condensate treatment and an automatic condensate drain valve are available as options, ensuring cleaner air and easier tank management.
Technical highlights
-
Voltage: 400 V, 50 Hz - Absorption: 13 A
-
Motor: 6.0 kW (8 HP), 8 cylinders
-
Air intake: 960 L/min
-
Air delivery: 620 L/min at 5 bar, 480 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 500 L, epoxy coated
-
Duty cycle: S1 100% continuous duty
-
Noise level: 77 dB
-
Dimensions: 2040 × 670 × 980 mm
-
Weight: 340 kg (380 kg packaged)
The Gentilin Hush ESK 960/500 is the ultimate choice for professionals who need a quiet, oil-free compressor with very high airflow and a large tank for demanding industrial and commercial applications.
Catalog Download
Certifications Download
| Condensate Treatment | Optional |
|---|---|
| Particulate Treatment | - |
| Air purity class (ISO 8573-1) | X-X-0 |
| Voltage (V) | 400,00 |
| Frequency (Hz) | 50,00 |
| Nominal rating (kW) | 6,00 |
| Nominal rating (HP) | 8,00 |
| Rotation speed (rpm) | 1.400,00 |
| Absorption (A) | 13,00 |
| Number of cylinders | 8 |
| Air intake (L/min) | 960,00 |
| Air Delivery (L/min @5 bar) | 620,00 |
| Air Delivery (L/min @8 bar) | 480,00 |
| Maximum pressure (bar) | 10,00 |
| Noise level (3,00m @ 5,00 bar) (dB(A)) | 77,00 |
| Duty cycle | S1 100% |
| Tank Coating | Epoxy (internal/external) |
| Tank capacity (lt) | 500,00 |
| First Maintenance (hours) | 3000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | Optional |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 2040,00 | 670,00 | 980,00 | 340,00 |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 2100,00 | 770,00 | 1140,00 | 380,00 |
| Dimensions (cm) - LxWxH | Weight (Kg) | Pieces |
|---|---|---|
| 2100x770x1140 | 380,00 | 1 |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
