GENTILIN - Clinic 6/90 HS - Dry Air Compressor With Filter 400-50V-Hz

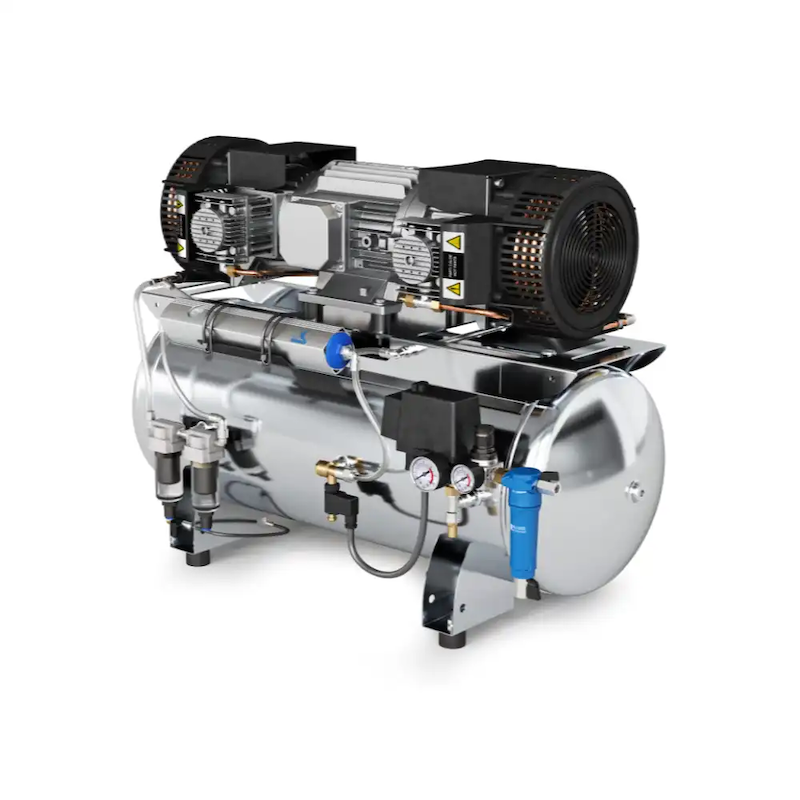

Gentilin Clinic 6/90 HS Dry - Quiet Oil-Free Compressor with Membrane Dryer and Sterile Filter (90L Stainless Steel Tank)
The Gentilin Clinic 6/90 HS Dry is a premium compressor designed for clinics and laboratories that require sterile, dry, and oil-free air with continuous reliability. Built in Italy, it combines membrane drying technology, a high-efficiency antibacterial filter, and a durable stainless-steel tank, making it perfect for sensitive applications in medical, dental, and pharmaceutical environments.
Strong and continuous performance
This compressor runs on a 3.0 kW (4 HP) motor with four cylinders, operating at 1,400 rpm. It provides an air intake of 480 L/min, with 265 L/min delivered at 5 bar and 200 L/min at 8 bar, reaching a maximum pressure of 10 bar. With its S1 duty cycle (100% on), the Clinic 6/90 HS Dry is built for continuous operation, ensuring a steady and reliable airflow all day long.
Membrane dryer and sterile filter
Equipped with a membrane dryer, the compressor lowers the dew point to -40 °C, producing very dry compressed air. In addition, the integrated antibacterial filter removes particles as small as 0.01 µm, meeting the strict ISO 8573-1 Class 0-2-0 standard. This ensures sterile-quality air, protecting sensitive equipment and guaranteeing safety in clinical and laboratory settings.
90L stainless steel tank
The compressor includes a 90-liter stainless steel AISI 304 tank, which is rust-free and highly durable. This large tank provides a generous reserve of compressed air, supporting longer working cycles and improving efficiency.
Quiet operation
Despite its size and power, the Clinic 6/90 HS Dry operates at just 74 dB measured at 3 meters and 5 bar. This keeps noise under control, making it suitable for installation in clinical and professional environments.
Reliable and low-maintenance
Standard features include an hour meter for tracking operation and scheduling service. An automatic condensate drain valve is available as an option. The first maintenance interval is after 3,000 hours, ensuring long-term performance and reduced upkeep.
Technical highlights
-
Voltage: 400 V, 50 Hz - Absorption: 6.5 A
-
Motor: 3.0 kW (4 HP), 4 cylinders
-
Air intake: 480 L/min
-
Air delivery: 265 L/min at 5 bar, 200 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 90 L, stainless steel AISI 304
-
Duty cycle: S1 100% continuous duty
-
Noise level: 74 dB
-
First maintenance: 3,000 hours
The Gentilin Clinic 6/90 HS Dry is the perfect choice for professionals who need a quiet, oil-free compressor with sterile, moisture-free air for continuous and safe daily operation.
Catalog Download
Certifications Download
| Condensate Treatment | Membrane dryer | Dew Point -40°C |
|---|---|
| Particulate Treatment | 0.01µm | Antibacterial filter |
| Air purity class (ISO 8573-1) | 0-2-0 |
| Voltage (V) | 400.00 |
| Frequency (Hz) | 50.00 |
| Nominal rating (kW) | 3.00 |
| Nominal rating (HP) | 4.00 |
| Rotation speed (rpm) | 1,400.00 |
| Absorption (A) | 6.50 |
| Number of cylinders | 4 |
| Air intake (L/min) | 480.00 |
| Air Delivery (L/min @5 bar) | 265.00 |
| Air Delivery (L/min @8 bar) | 200.00 |
| Maximum pressure (bar) | 10.00 |
| Noise level (3.00m @ 5.00 bar) (dB(A)) | 74.00 |
| Duty cycle | S1 100% |
| Tank Coating | Stainless Steel AISI 304 |
| Tank capacity (lt) | 90.00 |
| First Maintenance (hours) | 3000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | Optional |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
