GENTILIN - Clinic 6/90 HS - Dry Air Compressor With Filter 230-50V-Hz

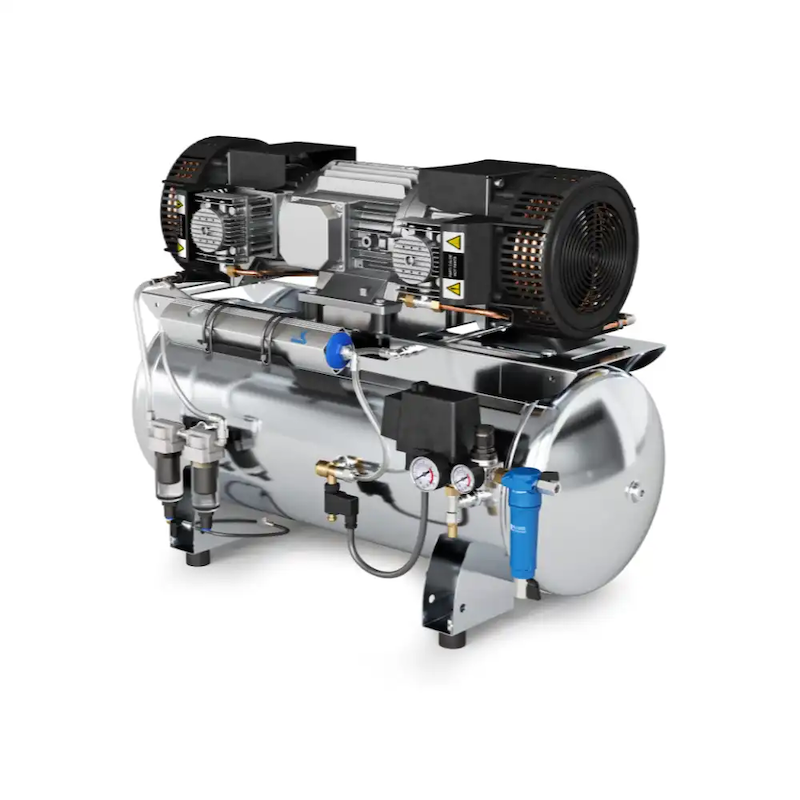

Gentilin Clinic 6/90 HS Dry - Quiet Oil-Free Compressor with Membrane Dryer and Sterile Filter (90L Stainless Steel Tank)
The Gentilin Clinic 6/90 HS Dry is a premium compressor designed for clinics, laboratories, and professional environments that require the highest air purity. With its integrated membrane dryer and antibacterial filter, it delivers sterile, dry, and oil-free air for sensitive applications. Built in Italy, it combines advanced filtration technology with continuous-duty performance and a stainless steel tank for durability and reliability.
Strong and continuous performance
This compressor runs on a 3.0 kW (4 HP) motor with four cylinders, operating at 1,400 rpm. It offers an air intake of 480 L/min, with 265 L/min at 5 bar and 200 L/min at 8 bar, while reaching a maximum pressure of 10 bar. With its S1 duty cycle (100% on), the Clinic 6/90 HS Dry is built for non-stop operation, ensuring steady airflow throughout the day.
Membrane dryer and sterile filter
The unit features a membrane dryer that reduces the dew point to -40 °C, ensuring very dry compressed air. It also integrates an antibacterial sterile filter that removes particles as small as 0.01 µm, meeting ISO 8573-1 Class 0-2-0 standards. This guarantees sterile-quality air, protecting sensitive medical devices, laboratory equipment, and patients from contamination.
Durable stainless steel tank
The compressor is equipped with a 90-liter stainless steel AISI 304 tank, which is rust-free and built to last. Its corrosion resistance ensures safe long-term use in demanding environments.
Quiet operation
Despite its high airflow capacity, the Clinic 6/90 HS Dry operates at just 74 dB measured at 3 meters and 5 bar. This makes it quiet enough for installation in clinics, labs, and other workplaces without disturbing staff or patients.
Reliable and low-maintenance
Standard equipment includes an hour meter for tracking operation and scheduling service. An automatic condensate drain valve can be added if needed. The first maintenance interval is 3,000 hours, ensuring dependable and cost-effective operation.
Technical highlights
-
Voltage: 230 V, 50 Hz - Absorption: 6.5 A
-
Motor: 3.0 kW (4 HP), 4 cylinders
-
Air intake: 480 L/min
-
Air delivery: 265 L/min at 5 bar, 200 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 90 L, stainless steel AISI 304
-
Duty cycle: S1 100% continuous duty
-
Noise level: 74 dB
-
First maintenance: 3,000 hours
The Gentilin Clinic 6/90 HS Dry is the ultimate solution for professionals who need a quiet, oil-free compressor with sterile, dry air and a durable stainless steel tank for reliable everyday use.
Catalog Download
Certifications Download
| Condensate Treatment | Membrane dryer | Dew Point -40°C |
|---|---|
| Particulate Treatment | 0.01µm | Antibacterial filter |
| Air purity class (ISO 8573-1) | 0-2-0 |
| Voltage (V) | 230.00 |
| Frequency (Hz) | 50.00 |
| Nominal rating (kW) | 3.00 |
| Nominal rating (HP) | 4.00 |
| Rotation speed (rpm) | 1,400.00 |
| Absorption (A) | 6.50 |
| Number of cylinders | 4 |
| Air intake (L/min) | 480.00 |
| Air Delivery (L/min @5 bar) | 265.00 |
| Air Delivery (L/min @8 bar) | 200.00 |
| Maximum pressure (bar) | 10.00 |
| Noise level (3.00m @ 5.00 bar) (dB(A)) | 74.00 |
| Duty cycle | S1 100% |
| Tank Coating | Stainless Steel AISI 304 |
| Tank capacity (lt) | 90.00 |
| First Maintenance (hours) | 3000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | Optional |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
