GENTILIN - Clinic 6/90 - Air Compressor 230-50V-Hz

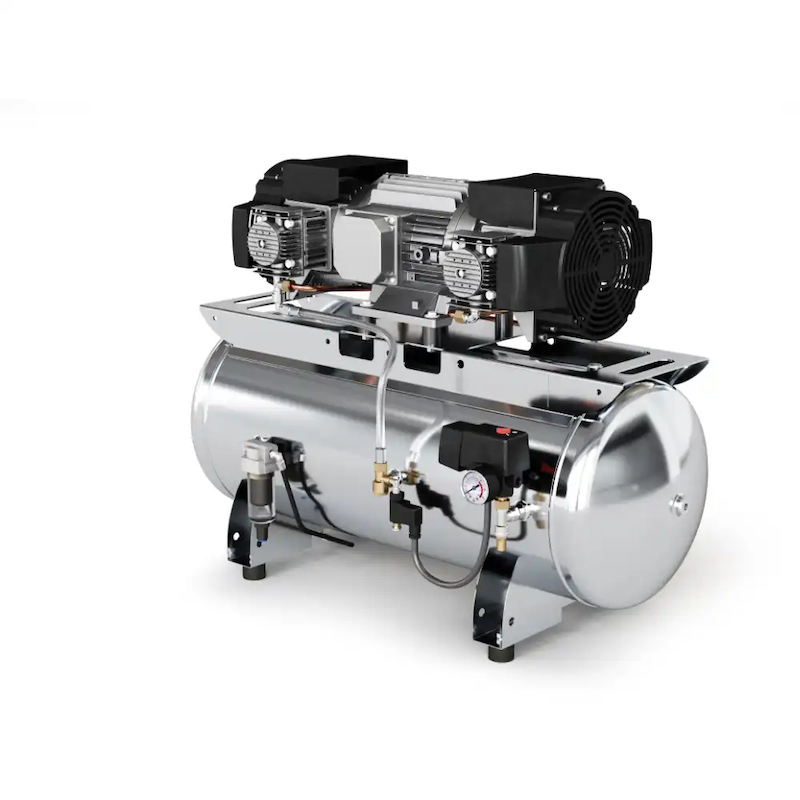

Gentilin Clinic 6/90 - Quiet Oil-Free Compressor with Stainless Steel Tank (90L)
The Gentilin Clinic 6/90 is a powerful and reliable compressor designed for continuous use in clinics, laboratories, and professional environments. Built in Italy, it delivers a high airflow rate, a durable stainless steel tank, and low noise, making it ideal for places where clean and steady compressed air is required every day.
Strong and continuous performance
This compressor runs on a 3.0 kW (4 HP) motor with four cylinders, operating at 1,400 rpm. It offers an air intake of 480 L/min, with 310 L/min at 5 bar and 240 L/min at 8 bar, while reaching a maximum pressure of 10 bar. With its S1 duty cycle (100% on), the Clinic 6/90 is designed for non-stop operation, ensuring a stable and reliable air supply even during long work hours.
Durable stainless steel tank
The unit is equipped with a 90-liter tank made of AISI 304 stainless steel, which is rust-free, hygienic, and built to last. The large tank capacity provides a steady reserve of compressed air, reducing cycling and improving efficiency. This makes it especially suited for clinics and laboratories where durability and reliability are critical.
Quiet operation
Despite its strong airflow and large tank, the Clinic 6/90 operates at just 74 dB measured at 3 meters and 5 bar. This controlled noise level makes it suitable for indoor use without disturbing daily operations.
Reliable and low-maintenance
The compressor comes standard with an hour meter for monitoring operation and an automatic condensate drain valve for easy maintenance. The first maintenance interval is after 3,000 hours, keeping service needs minimal and ensuring consistent long-term performance.
Technical highlights
-
Voltage: 230 V, 50 Hz - Absorption: 6.5 A
-
Motor: 3.0 kW (4 HP), 4 cylinders
-
Air intake: 480 L/min
-
Air delivery: 310 L/min at 5 bar, 240 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 90 L, stainless steel AISI 304
-
Duty cycle: S1 100% continuous duty
-
Noise level: 74 dB
-
First maintenance: 3,000 hours
The Gentilin Clinic 6/90 is the ideal solution for professionals who need a quiet, oil-free compressor with a durable stainless steel tank and high airflow for reliable daily operation.
Catalog Download
Certifications Download
| Condensate Treatment | - |
|---|---|
| Particulate Treatment | - |
| Air purity class (ISO 8573-1) | X-X-0 |
| Voltage (V) | 230.00 |
| Frequency (Hz) | 50.00 |
| Nominal rating (kW) | 3.00 |
| Nominal rating (HP) | 4.00 |
| Rotation speed (rpm) | 1,400.00 |
| Absorption (A) | 6.50 |
| Number of cylinders | 4 |
| Air intake (L/min) | 480.00 |
| Air Delivery (L/min @5 bar) | 310.00 |
| Air Delivery (L/min @8 bar) | 240.00 |
| Maximum pressure (bar) | 10.00 |
| Noise level (3.00m @ 5.00 bar) (dB(A)) | 74.00 |
| Duty cycle | S1 100% |
| Tank Coating | Stainless Steel AISI 304 |
| Tank capacity (lt) | 90.00 |
| First Maintenance (hours) | 3000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | Included |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
