GENTILIN - Clinic 3.40 HS - Dry Air Compressor With Filter - 230-50V-Hz

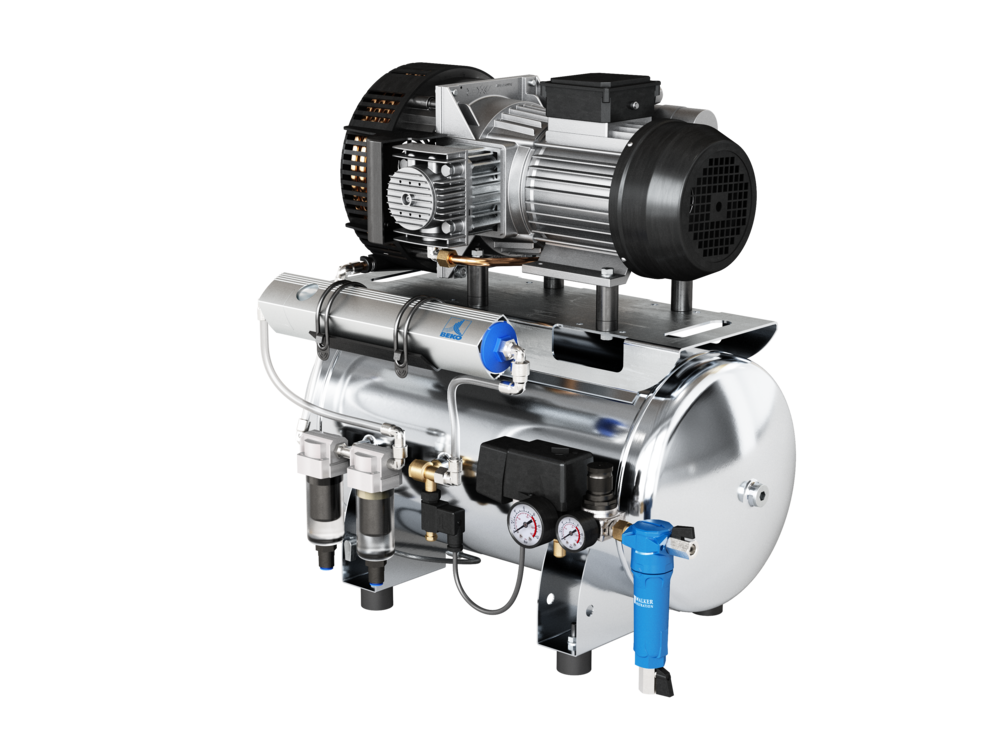

Gentilin Clinic 3.40 HS Dry - Quiet Oil-Free Compressor with Membrane Dryer and Sterile Filter (40L Tank, 10 Bar)
The Gentilin Clinic 3.40 HS Dry is a premium professional air compressor designed to deliver very dry, filtered, and oil-free air for clinics, laboratories, and food environments. Built in Italy, it provides medical grade purity, continuous duty operation, and quiet performance for the most demanding applications.
Strong and continuous performance
Powered by a 1.8 kW (2.2 HP) motor with two cylinders, this compressor runs at 1,400 rpm and provides an air intake of 240 L/min. It delivers 135 L/min at 5 bar and 110 L/min at 8 bar, reaching a maximum pressure of 10 bar. With an S1 duty cycle (100% on), it is built for non-stop operation, supplying constant airflow all day without downtime.
Membrane dryer and sterile filter
The Clinic 3.40 HS Dry is equipped with a membrane dryer that reduces the dew point to -40 °C, ensuring extremely dry compressed air. It also includes a sterile filter with a molecular sieve of 0.01 µm, providing the highest level of particle and bacterial filtration. This advanced system guarantees air purity up to ISO 8573-1 Class 0-2-0, meeting strict medical and food industry standards.
Stainless steel tank and durability
The compressor features a 40-liter stainless steel AISI 304 tank, which is corrosion-resistant and hygienic, making it safe for medical and food-grade use. Maintenance requirements are minimal, with the first service needed only after 3,000 hours of use.
Quiet operation for sensitive environments
Even with its advanced performance, the Clinic 3.40 HS Dry runs at only 67 dB measured at 3 meters and 5 bar - about the same as normal conversation. This makes it suitable for clinics, laboratories, and treatment rooms where silence and comfort matter.
Standard equipment included
The unit comes with an hour meter for accurate workload monitoring. An automatic condensate drain valve is also available as an option.
Technical highlights
-
Voltage: 230 V, 50 Hz - Absorption: 8.5 A
-
Motor: 1.8 kW (2.2 HP), 2 cylinders
-
Air intake: 240 L/min
-
Air delivery: 135 L/min at 5 bar, 110 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 40 L, stainless steel AISI 304
-
Duty cycle: S1 100% continuous duty
-
Noise level: 67 dB
-
Dimensions: 650 × 460 × 660 mm
-
Weight: 42 kg (47 kg packaged)
The Gentilin Clinic 3.40 HS Dry is the best solution when you need a quiet, oil-free compressor with ultra-dry, sterile filtered air, built for continuous professional use.
Catalog Download
Certifications Download
| Condensate Treatment | Adsorption Dryer | Dew Point -40°C |
|---|---|
| Particulate Treatment | 0,3 µm |
| Air purity class (ISO 8573-1) | 3-2-0 |
| Voltage (V) | 230,00 |
| Frequency (Hz) | 50,00 |
| Nominal rating (kW) | 1,80 |
| Nominal rating (HP) | 2,20 |
| Rotation speed (rpm) | 1.400,00 |
| Absorption (A) | 8,50 |
| Number of cylinders | 2 |
| Air intake (L/min) | 240,00 |
| Air Delivery (L/min @5 bar) | 135,00 |
| Air Delivery (L/min @8 bar) | 110,00 |
| Maximum pressure (bar) | 10,00 |
| Noise level (3,00m @ 5,00 bar) (dB(A)) | 67,00 |
| Duty cycle | S1 100% |
| Tank Coating | Stainless Steel AISI 304 |
| Tank capacity (lt) | 40 |
| First Maintenance (hours) | 3000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | Optional |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 650,00 | 460,00 | 660,00 | 42,00 |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 680,00 | 570,00 | 950,00 | 47,00 |
| Dimensions (cm) - LxWxH | Weight (Kg) | Pieces |
|---|---|---|
| 1140x680x1900 | 172,00 | 4 |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
