GENTILIN - Clinic 3.40 H - Dry Air Compressor 230-50V-Hz

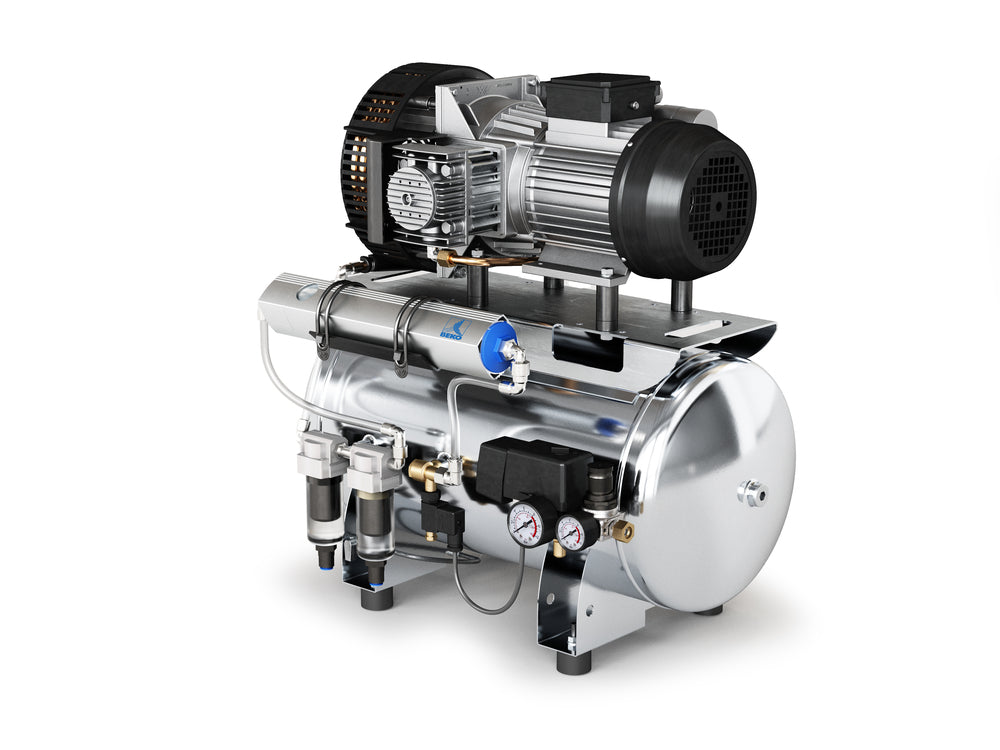

Gentilin Clinic 3.40 H Dry - Quiet Oil-Free Compressor with Membrane Dryer (40L Tank, 10 Bar)
The Gentilin Clinic 3.40 H Dry is a professional air compressor that delivers very dry, clean, and oil-free air for medical, dental, laboratory, and food environments. Made in Italy, it is designed for continuous duty with reliable performance and low noise.
Strong and continuous performance
This model runs on a 1.8 kW (2.2 HP) motor with two cylinders, operating at 1,400 rpm. It provides an air intake of 240 L/min, with 135 L/min at 5 bar and 110 L/min at 8 bar, while reaching a maximum pressure of 10 bar. With an S1 duty cycle (100% on), it can run non-stop all day without the need for pauses.
Built-in membrane dryer
The standout feature of the Clinic 3.40 H Dry is its membrane dryer, which reduces the dew point down to -40 °C. This ensures extremely dry compressed air, free of moisture and impurities. It also filters out particles as small as 0.3 µm, delivering air purity in line with ISO 8573-1 Class 3-2-0 standards. This makes it an ideal solution for sensitive environments where high purity air is essential.
Stainless steel tank and durability
The compressor includes a 40-liter AISI 304 stainless steel tank, which is corrosion-resistant and food-grade safe. This guarantees long service life and maximum hygiene, particularly important in medical and food-related applications. The first maintenance is only needed after 3,000 hours, keeping operating costs low.
Quiet and reliable operation
Despite its strength, the Clinic 3.40 H Dry produces only 67 dB at 3 meters and 5 bar - about the level of a normal conversation. Soundproofed pumps and rubber dampers minimize vibration and noise, allowing comfortable use even in sensitive spaces.
Standard equipment included
The Clinic 3.40 H Dry comes with an hour meter for workload monitoring. An automatic condensate drain valve is also available as an option for extra convenience.
Technical highlights
-
Voltage: 230 V, 50 Hz - Absorption: 8.5 A
-
Motor: 1.8 kW (2.2 HP), 2 cylinders
-
Air intake: 240 L/min
-
Air delivery: 135 L/min at 5 bar, 110 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 40 L, stainless steel AISI 304
-
Duty cycle: S1 100% continuous duty
-
Noise level: 67 dB
-
Dimensions: 650 × 460 × 660 mm
-
Weight: 42 kg (47 kg packaged)
The Gentilin Clinic 3.40 H Dry is the perfect choice for clinics, labs, and food applications that need a quiet, oil-free, and continuous-duty compressor with very dry air and medical grade purity.
Catalog Download
Certifications Download
| Condensate Treatment | Adsorption Dryer | Dew Point -40°C |
|---|---|
| Particulate Treatment | 0,3 µm |
| Air purity class (ISO 8573-1) | 3-2-0 |
| Voltage (V) | 230,00 |
| Frequency (Hz) | 50,00 |
| Nominal rating (kW) | 1,80 |
| Nominal rating (HP) | 2,20 |
| Rotation speed (rpm) | 1.400,00 |
| Absorption (A) | 8,50 |
| Number of cylinders | 2 |
| Air intake (L/min) | 240,00 |
| Air Delivery (L/min @5 bar) | 135,00 |
| Air Delivery (L/min @8 bar) | 110,00 |
| Maximum pressure (bar) | 10,00 |
| Noise level (3,00m @ 5,00 bar) (dB(A)) | 67,00 |
| Duty cycle | S1 100% |
| Tank Coating | Stainless Steel AISI 304 |
| Tank capacity (lt) | 40 |
| First Maintenance (hours) | 3000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | Optional |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 650,00 | 460,00 | 660,00 | 42,00 |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 680,00 | 570,00 | 950,00 | 47,00 |
| Dimensions (cm) - LxWxH | Weight (Kg) | Pieces |
|---|---|---|
| 1140x680x1900 | 172,00 | 4 |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
