GENTILIN - Clinic 12.500 HS - Dry Air Compressor With Filter - 400 50V-Hz

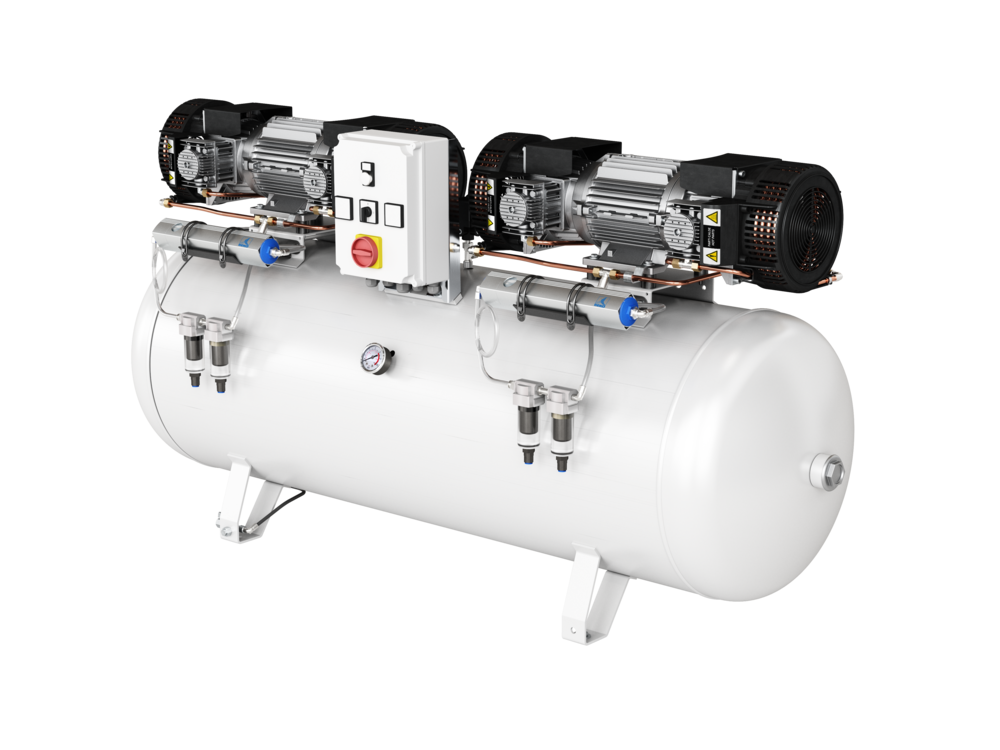

Gentilin Clinic 12.500 HS Dry - Oil-Free Compressor with Membrane Dryer and Sterile Filter (500L Tank, 10 Bar)
The Gentilin Clinic 12.500 HS Dry is a top-tier air compressor designed for facilities that require clean, dry, and sterile compressed air at all times. Built in Italy, it combines very high airflow, continuous duty operation, and advanced air treatment, making it perfect for hospitals, large clinics, laboratories, and food production facilities.
Strong and continuous performance
This model is powered by a 6.0 kW (8 HP) motor with eight cylinders, running at 1,400 rpm. It offers an air intake of 960 L/min, with 530 L/min delivered at 5 bar and 400 L/min at 8 bar, reaching a maximum pressure of 10 bar. With an S1 duty cycle (100% on), the compressor can run all day without interruption, ensuring a constant and steady supply of compressed air.
Membrane dryer and sterile filter
The Clinic 12.500 HS Dry features a membrane dryer that reduces the dew point to -40 °C, guaranteeing extremely dry air. It is also equipped with a sterile antibacterial filter with a molecular sieve of 0.01 µm, which removes even the smallest particles and bacteria. The system ensures air purity up to ISO 8573-1 Class 0-2-0, the highest standard for sensitive environments.
Large and durable tank
The compressor comes with a 500-liter epoxy-coated tank, treated both inside and outside to prevent corrosion and extend durability. Its large capacity allows for efficient air storage and longer continuous operation.
Quiet and reliable operation
Despite its size and strength, the Clinic 12.500 HS Dry maintains controlled noise levels at 78 dB measured at 3 meters and 5 bar. For such a high-capacity unit, this makes it suitable for installation in large facilities without excessive noise disturbance.
Standard equipment included
The compressor comes with an hour meter to track workloads and plan maintenance. An automatic condensate drain valve is available as an option for added convenience.
Technical highlights
-
Voltage: 400 V, 50 Hz - Absorption: 13 A
-
Motor: 6.0 kW (8 HP), 8 cylinders
-
Air intake: 960 L/min
-
Air delivery: 530 L/min at 5 bar, 400 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 500 L, epoxy coated
-
Duty cycle: S1 100% continuous duty
-
Noise level: 78 dB
-
Dimensions: 2040 × 700 × 980 mm
-
Weight: 348 kg (393 kg packaged)
The Gentilin Clinic 12.500 HS Dry is the perfect solution for large-scale operations that need a quiet, oil-free compressor with ultra-dry, sterile filtered air for continuous and reliable use.
Catalog Download
Certifications Download
| Condensate Treatment | Adsorption Dryer | Dew Point -40°C |
|---|---|
| Particulate Treatment | 0,01µm | Antibacterial Filter |
| Air purity class (ISO 8573-1) | 0-2-0 |
| Voltage (V) | 400,00 |
| Frequency (Hz) | 50,00 |
| Nominal rating (kW) | 6,00 |
| Nominal rating (HP) | 8,00 |
| Rotation speed (rpm) | 1.400,00 |
| Absorption (A) | 13,00 |
| Number of cylinders | 8 |
| Air intake (L/min) | 960,00 |
| Air Delivery (L/min @5 bar) | 530,00 |
| Air Delivery (L/min @8 bar) | 400,00 |
| Maximum pressure (bar) | 10,00 |
| Noise level (3,00m @ 5,00 bar) (dB(A)) | 78,00 |
| Duty cycle | S1 100% |
| Tank Coating | Epoxy (interior/exterior) |
| Tank capacity (lt) | 500,00 |
| First Maintenance (hours) | 3000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | Optional |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 2040,00 | 700,00 | 980,00 | 348,00 |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 2100,00 | 770,00 | 1140,00 | 393,00 |
| Dimensions (cm) - LxWxH | Weight (Kg) | Pieces |
|---|---|---|
| - | - | - |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
See manual and certifications here
