IcanClave - ClaveMed F03 - Autoclave
ClaveMed F03
The ClaveMed F03 is an ultra-fast autoclave, especially designed for the sterilization of unwrapped instruments. This greatly improves the turnover rate of surgical instruments and enhances convenience for small operations in dentistry, cosmetology, otolaryngology, and ophthalmology.
The F03 features a 4.3-inch color touch screen with a user-friendly interface design. All function information, operation progress, sterilization status, and various settings can be completed on one screen like a mobile phone.
DOWNLOAD CATALOG HERE
Key Features:
- Standard pre-programmed cycles: Quick S, Standard B, Soft B, Prion 134℃, B&D Test, Helix Test, Vacuum Test
- Other cycles: Descale (cleaning steam generator and tube)
- Steam generator: Built-in steam generator with 2300W rated power

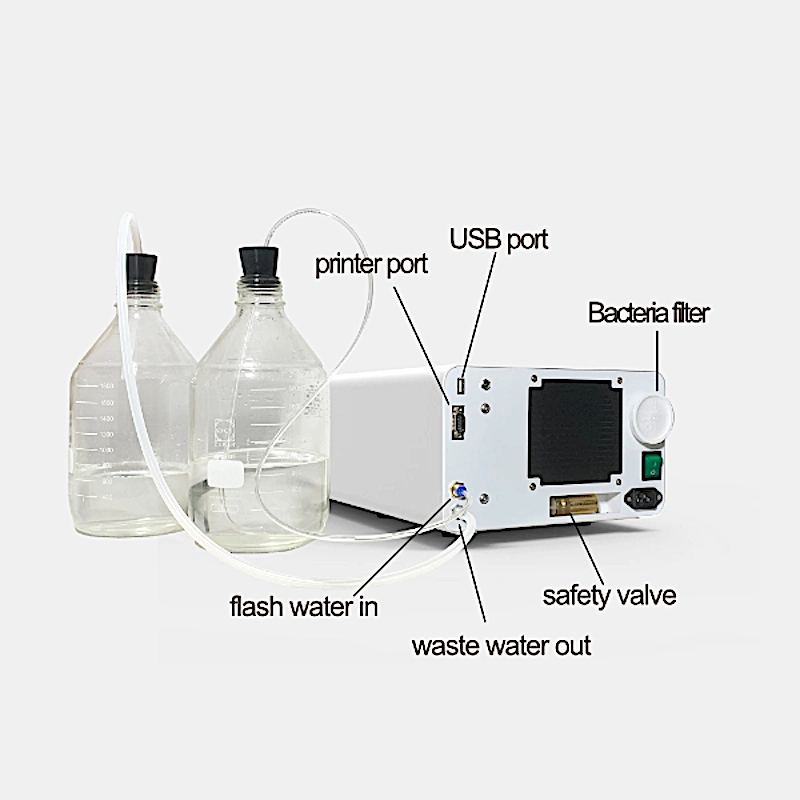

- Water Reservoir: External water reservoir and wastewater reservoir

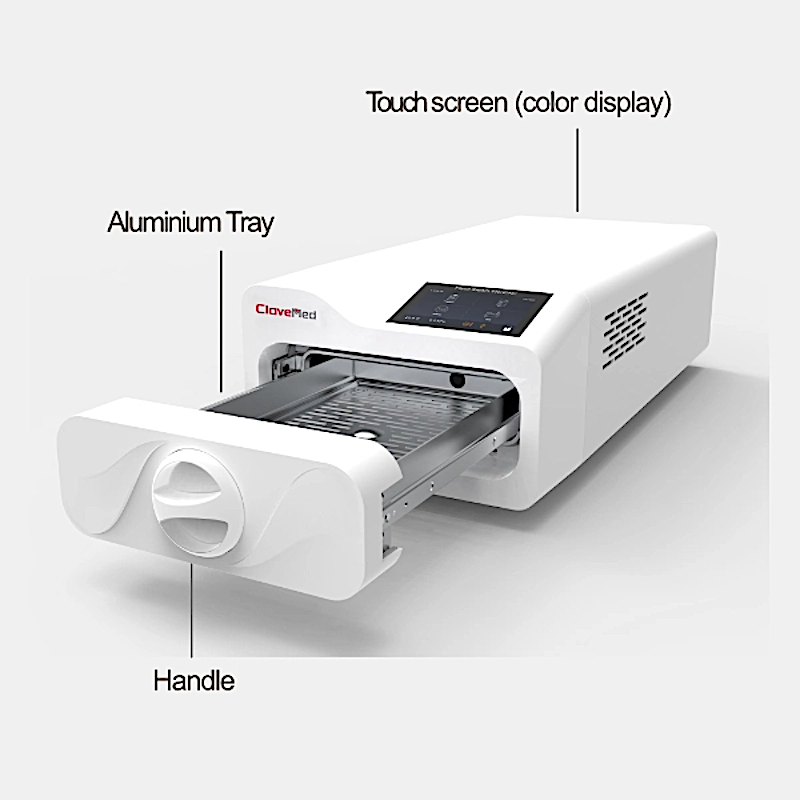

- Door system: Manual door system
- 4.3-inch color touch screen: Displaying cycle process, time, temperature, pressure, process alert messages, error codes, and all detailed information
- User friendly interface: Easy to operate
- Warning system: Warning of door unlock
- Atmospheric pressure identification system: Automatically identifies local atmospheric pressure
- Safety system: Over pressure safety valve, over temperature switch, safety lock system preventing improper door lock, circuit breakers protecting the machine when short-circuited or over current, automatic warning for maintenance
Documentation:
- Printer: Internal printer prints the cycle report automatically
- USB port: Used for connecting a USB disc, all sterilization data are automatically output to the USB disc and can be read directly in any PC and stored electronically
- Internal Memory: The last 9999 cycles can be automatically stored in the autoclave system, which can be printed out at any time
- Barcode label printer port: Used for connecting an optional barcode printer that prints barcode labels containing information related to the sterilization cycle
Technical Specifications
| Specification | Details |
|---|---|
| Order Code | ClaveMed F03 |
| Model Number | STE-3-F |
| Chamber Dimension | 292×45×192 mm |
| Chamber Volume | approx. 3L |
| Number of Trays | 1 |
| Material of Trays | Aluminum |
| Size of Trays (W×H) | 178×285 mm |
| Voltage/Frequency | 220/110V, 50/60Hz |
| Power | 2300W |
| Overall Dimension (W×H×D) | 268×171×605 mm |
| Weight | 16kg |
Sterilization Cycles
| Program | Temp./Pressure | Sterilization Time | Total Cycle Time | Load Capacity |
|---|---|---|---|---|
| Quick S | 134℃/210Kpa | 3.5 min | 8–11 min | 1kg |
| Standard B | 134℃/210Kpa | 4 min | 15–18 min | 1kg |
| Soft B | 121℃/110Kpa | 20 min | 25–30 min | 1kg |
| Prion 134 | 134℃/210Kpa | 18 min | 25–30 min | 1kg |
| B&D Test | 134℃/210Kpa | 3.5 min | 12–18 min | - |
| Helix Test | 134℃/210Kpa | 3.5 min | 12–18 min | - |
| Vacuum Test | - | - | 15–20 min | - |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
See manual and certifications here
