AGA-POWER-DUO-LIFT X Ray Table Electric Height and Tilt Adjustment
AGA-POWER-DUO-LIFT X Ray Table
The AGA-POWER-DUO-LIFT table is designed for imaging and radiography where both height and tilt adjustment are required. It allows precise positioning during examinations with electric control for both functions.
The table uses two synchronized lifting columns for smooth height adjustment. In addition, it offers electric tilt adjustment (Trendelenburg and Anti Trendelenburg), giving more flexibility during procedures. Both movements can be controlled at the same time using a hand switch with six buttons.
The tabletop is radiolucent, allowing X rays to pass through without interference. The design avoids metal parts in the main imaging area, helping to achieve clear results.
The table is stable and includes levelling feet for secure positioning. The headrest on two piece models can be adjusted in multiple positions and can be configured on the left or right side.
Model Differences
RGL-1065/NEE (650 mm, one piece tabletop)
- Width: 650 mm
- One piece radiolucent tabletop
- Full X ray usability across the surface
RGL-1080/NEE (800 mm, one piece tabletop)
- Width: 800 mm
- One piece radiolucent tabletop
- Larger working area
RGL-1065/NKEE (650 mm, two piece tabletop)
- Width: 650 mm

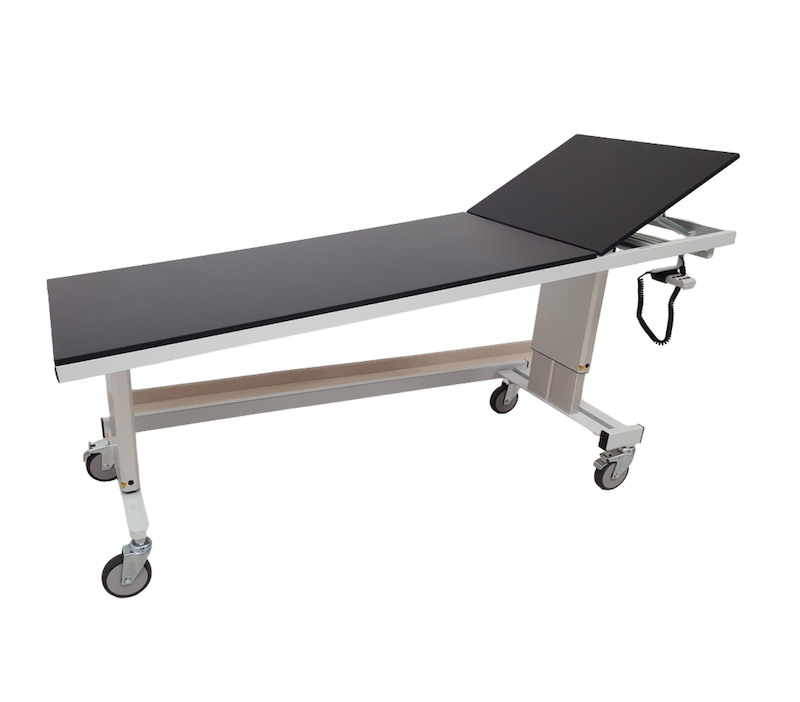

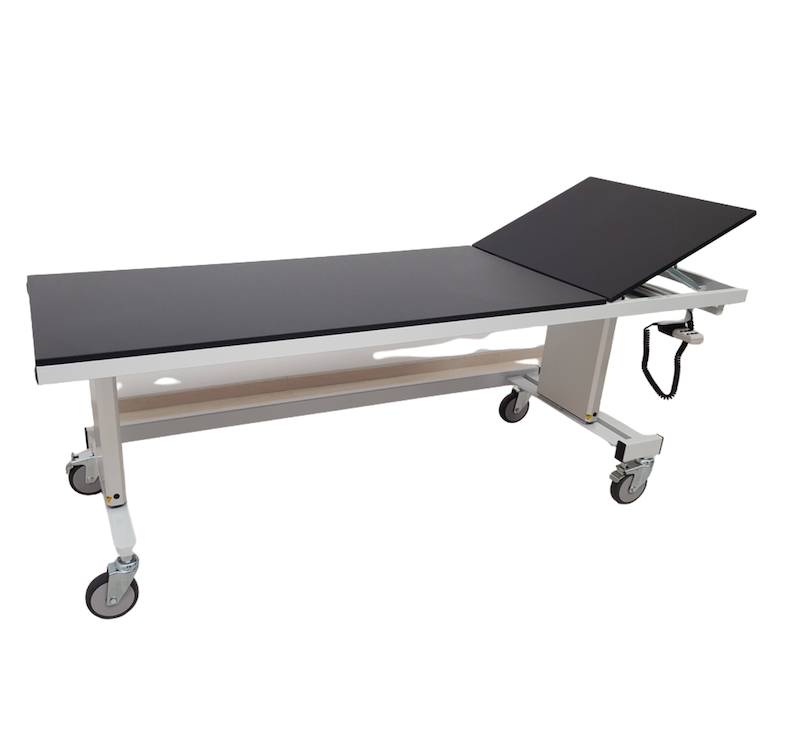

- Two piece tabletop with adjustable headrest
- Headrest adjustable in 13 positions
- Limited X ray usability near headrest
RGL-1080/NKEE (800 mm, two piece tabletop)
- Width: 800 mm
- Two piece tabletop with adjustable headrest
- Larger working area
- Limited X ray usability near headrest
Technical Data
- Height adjustment: 550 to 800 mm (electric).

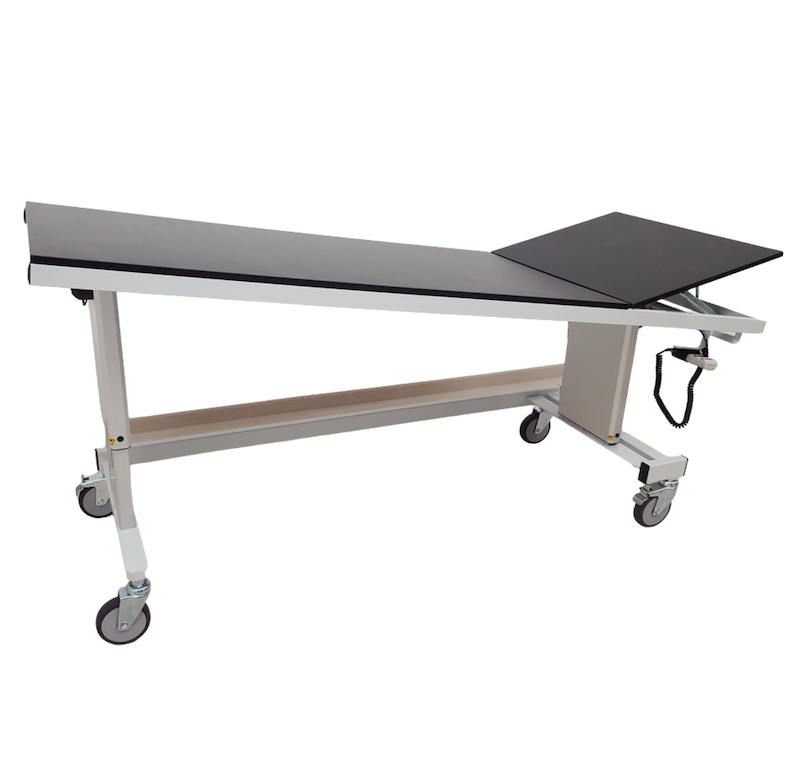

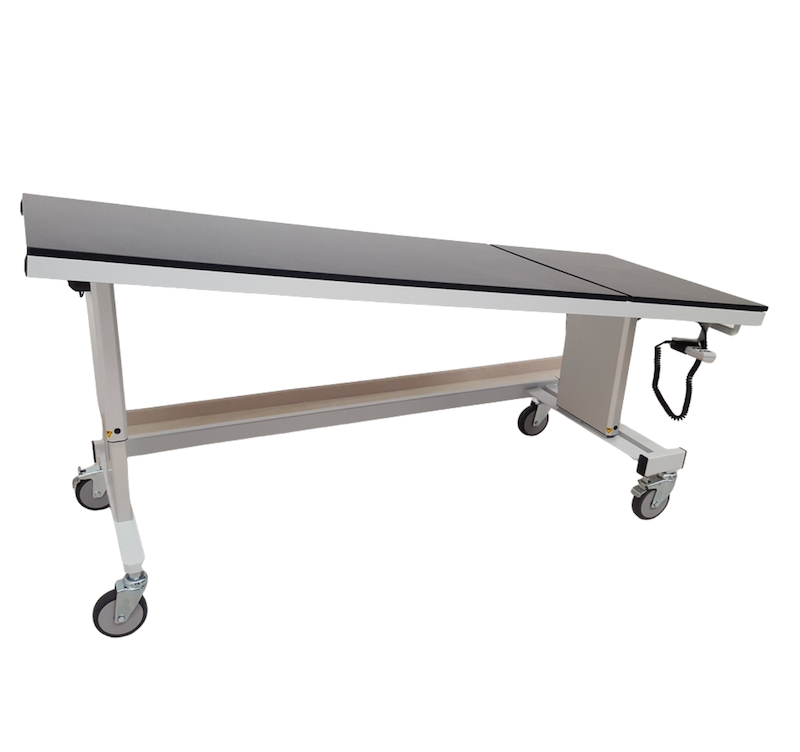

- Tilt adjustment: ±11° (electric).
- Length: 1,900 mm.
- Width: 650 mm or 800 mm.
- Radiolucent area: up to 1,300 × 750 mm.
- Load capacity: 150 kg.
- Support plate thickness: 15 mm or 25 mm.
What is Included
- X ray table with electric height and tilt adjustment.
- Hand switch with 6 buttons.
- Transformer control unit.
- Base frame with levelling feet.
Important
- Two piece models have limited X ray usability near the headrest area.
- Headrest position can be left or right depending on configuration.
Extra
- Different RAL colours available on request.
Frame Colors
White Aluminium (RAL 9006)
Pure white (RAL 9010)
See Accessories here
