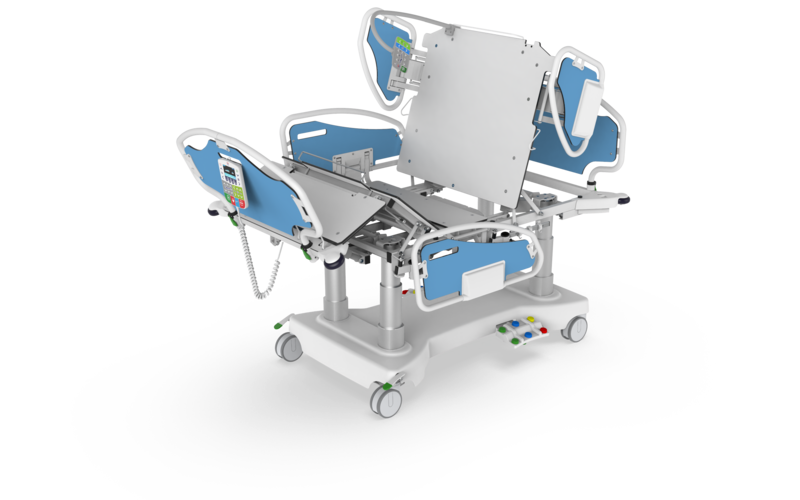

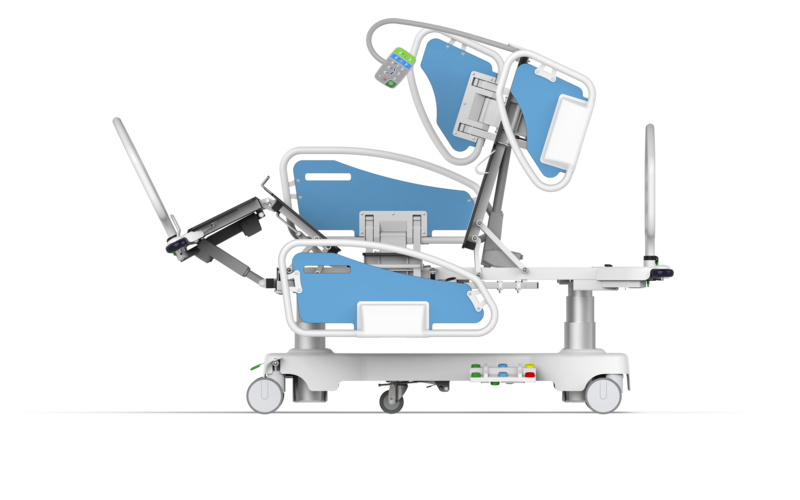

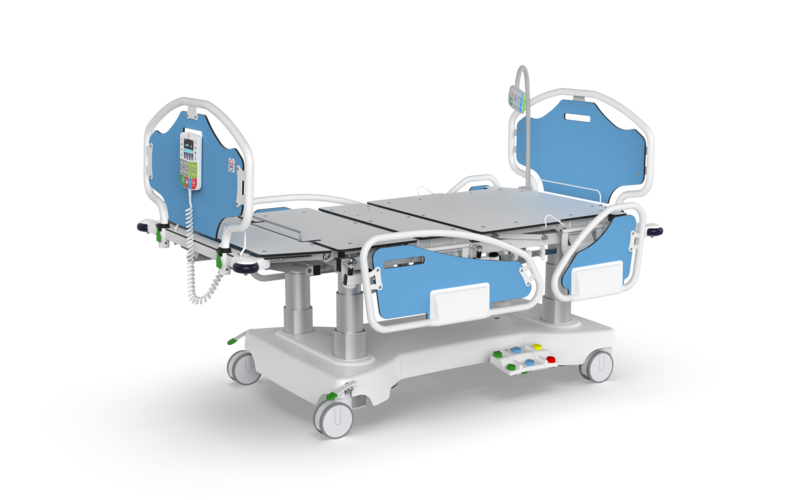

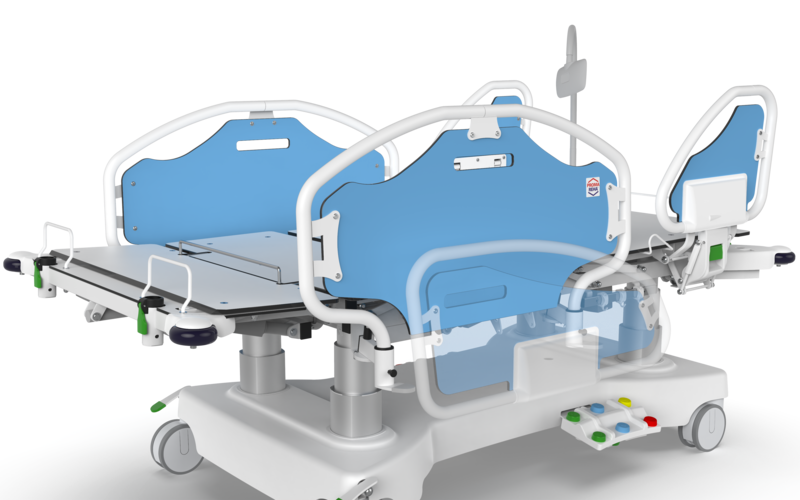

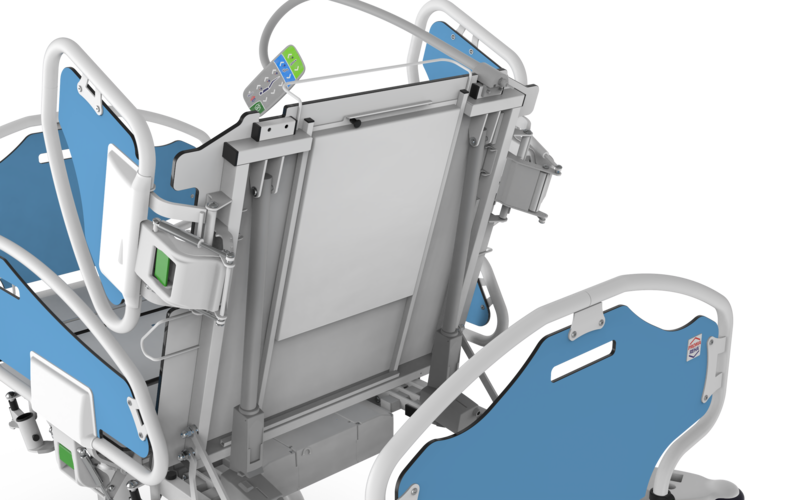

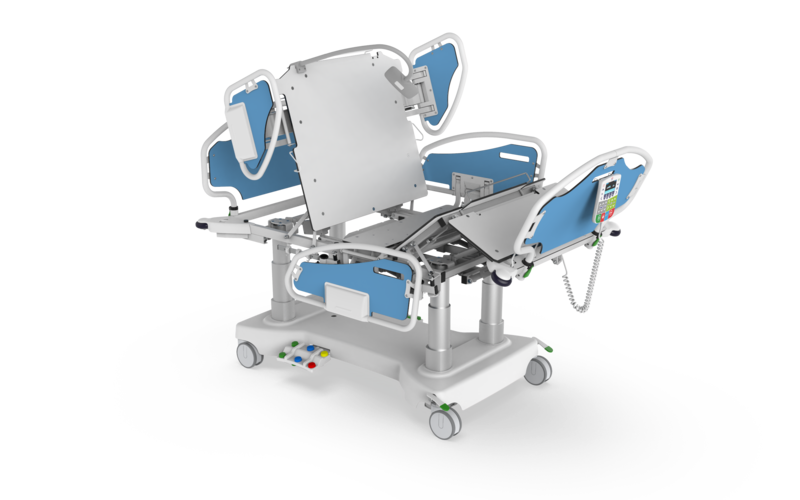

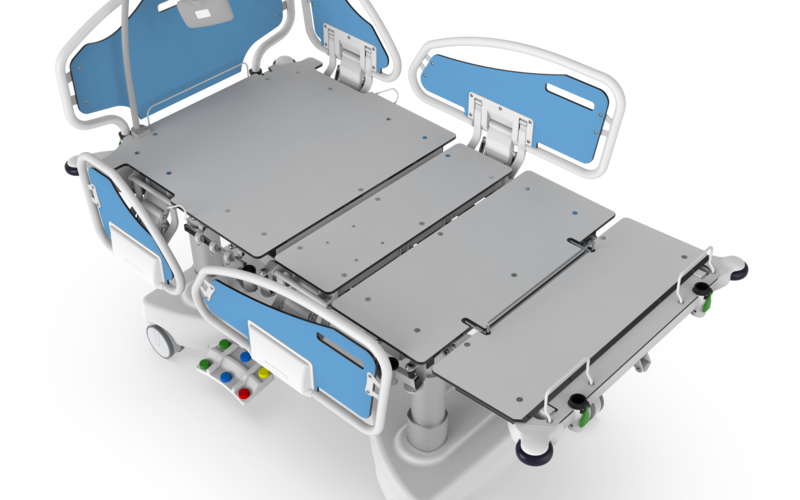

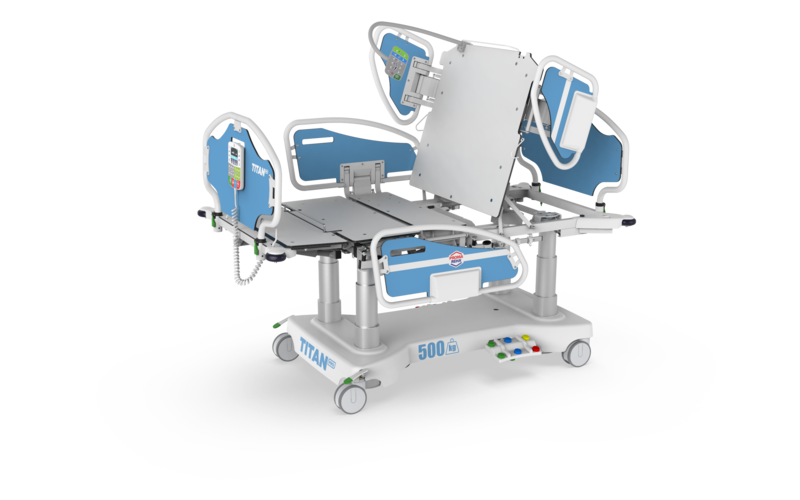

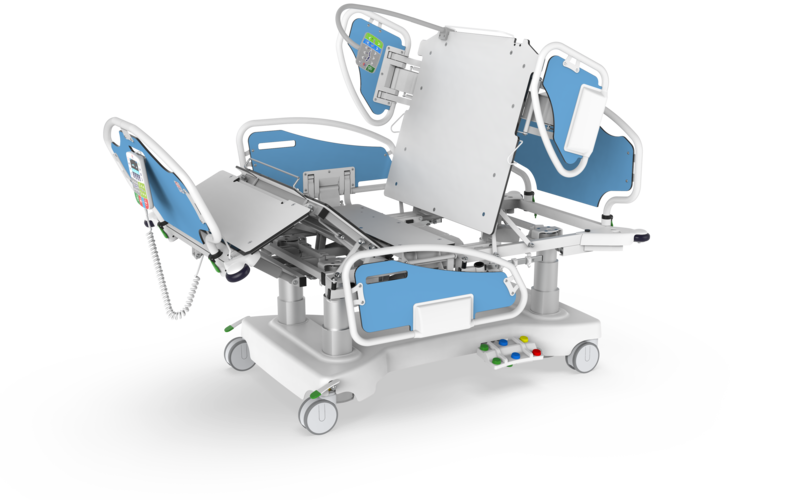

PROMA REHA TITAN Pro Bariatric Bed
PROMA REHA TITAN Pro Bariatric Bed with Integrated Weighing System
The PROMA REHA TITAN PRO combines all functions of the TITAN bariatric hospital bed with an integrated calibrated and certified weighing system. The weighing system allows patients to be weighed directly in the bed, helping staff monitor patient weight without transferring the patient to a separate scale.
The weighing system includes multiple weighing modes, graphical display of measured values, automatic value storage and differential weighing functions. Results are displayed on a graphic LCD screen and can be reviewed directly from the weighing system interface. The system also includes value freezing, exit alarm functionality and IP54 protection.

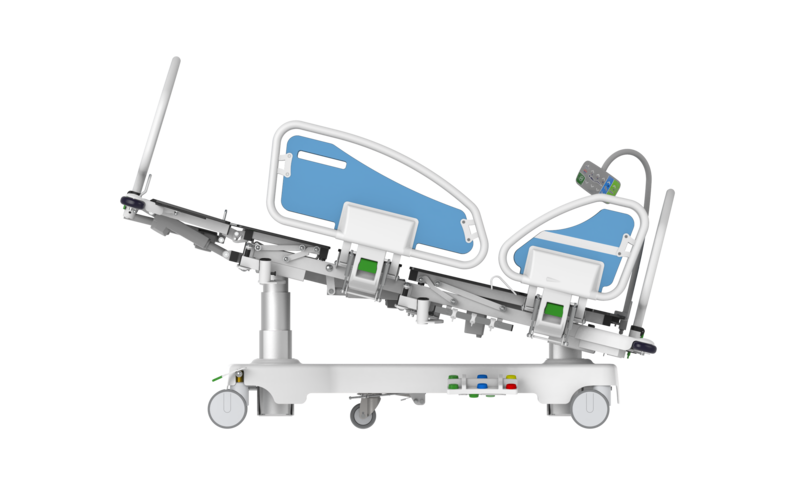

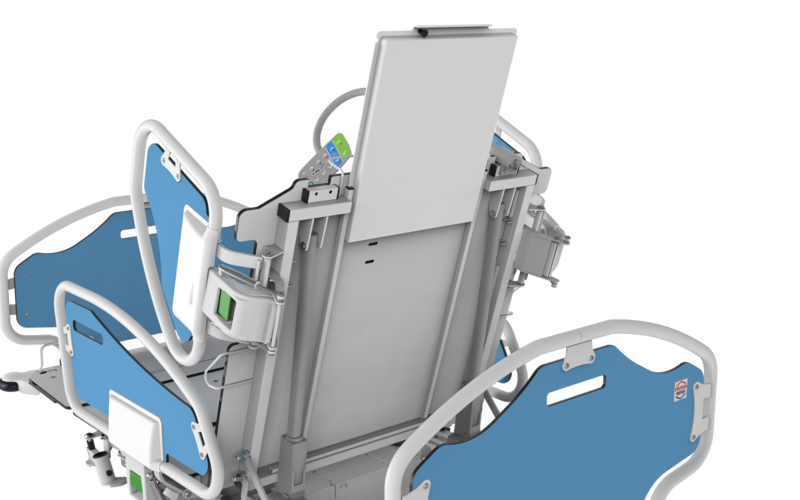

Like the TITAN model, the TITAN PRO features a fully electric mattress platform with electric height adjustment, lateral tilt, Trendelenburg and Antitrendelenburg positioning, electric bed extension and direct bed exit position. The bed is available in 100 cm and 120 cm widths and has a safe working load of 500 kg. X ray compatibility, fifth wheel steering, central braking and folding side rails make it suitable for demanding hospital and long term care environments.
Technical Data
- Safe working load: 500 kg
- Maximum patient weight: 435 kg
- Mattress platform size: 200 × 100 cm or 200 × 120 cm
- External dimensions: 222 × 108 cm or 222 × 128 cm
- Mattress platform height: 45 - 85 cm
- Mattress platform extension: ±10 cm
- Autoregression back section: 12 cm
- Autoregression thigh section: 6 cm
- Trendelenburg / Antitrendelenburg: 14° / 14°
- Lateral tilt: 15° / 15° electric
- Backrest angle: 72°
- Thigh section angle: 35°
- Calf section angle: 26°
- Mattress platform material: HPL
- Castors: 150 mm TENTE double castors
- Bed weight: 243 kg or 264 kg
Integrated Weighing System
- Maximum weighing capacity: 500 kg
- Minimum load: 10 kg
- Accuracy in absolute mode: ±0.5 kg
- Accuracy in differential mode: ±0.5 kg
- Weight range: 0 - 500 kg
- Graphic LCD display
- Automatic value storage
- Value freeze function
- Exit alarm
- Protection class: IP54
Key Features
- Fully electric bariatric hospital bed
- Integrated weighing system
- Calibrated and certified weighing system
- Safe working load of 500 kg
- Available in 100 cm and 120 cm widths
- Four column construction
- HPL mattress platform
- X ray compatible mattress platform
- X ray cassette holder
- Direct bed exit position
- Electric bed extension
- Electric lateral tilt
- Trendelenburg and Antitrendelenburg
- Fifth wheel steering
- Central brake system
- Folding metal side rails
- Electric CPR
- Backup battery
- Nurse control with LCD
- Foot controls
- Graphic LCD display
- Automatic value storage
- Differential weighing
- Value freeze function
- Bed exit alarm
- Universal accessory holders
- Chassis illumination
