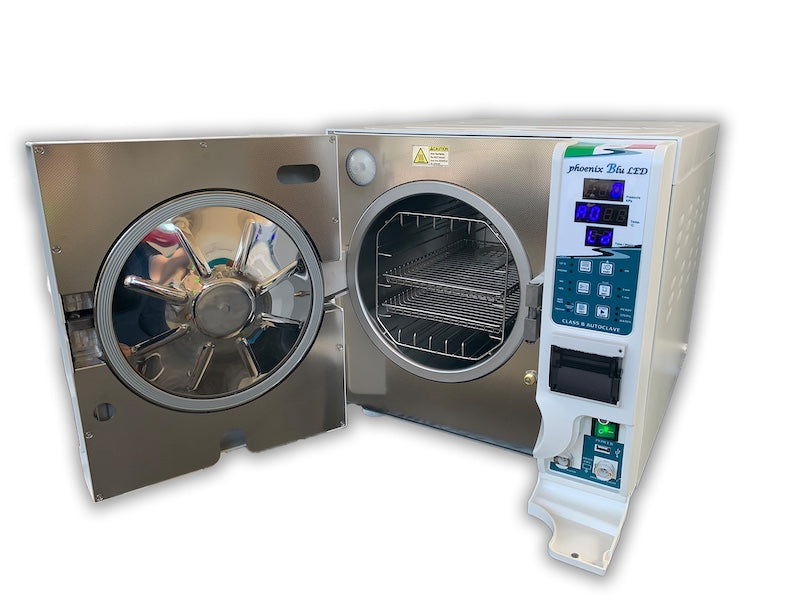

Guarisco Phoenix Blu LED Standard 18L/24L Autoclave
Phoenix Blu LED Standard Autoclave 18L / 24L + Free Water Distiller
This is a Class B autoclave with 18 liter or 24 liter chamber. It is suitable for dental, medical, veterinary, and beauty use. It sterilises solid, hollow, and porous instruments using steam sterilisation.
The unit is reliable, easy to use, and ready to use in any practice. The autoclave has 3 LED displays that show temperature, pressure, and time in real time. You always see what is happening during the cycle.
The interface is simple and clear with no complex menus. Cycles are fast and consistent with strong performance.
The unit includes a USB port to automatically save every sterilisation cycle. This makes it easy to track data and keep records for audits. Built in safety systems provide audio alarms and error messages so you always stay informed. You can choose drying time for each cycle. Options are 1, 5, or 10 minutes. This ensures instruments come out dry.
The autoclave also includes Helix, Bowie and Dick, and Vacuum test cycles to confirm correct sterilisation.
MAIN FUNCTIONS
LCD DISPLAY
Shows temperature, pressure, and time in real time. Clear and simple LED display.
STAND BY
Keeps the chamber warm between cycles. Saves 10 to 15 minutes and reduces moisture.
DRYING
You choose drying time: 1, 5, or 10 minutes. Tools come out dry.
STERILISATION CYCLES
Cycles at 121°C and 134°C. Up to 12 cycle options with adjustable drying.
TEST CYCLES
Includes Helix, Bowie and Dick, and Vacuum tests.
USB PORT
Automatically saves all sterilisation data on USB for tracking and audits.
STEAM GENERATOR
Fast external steam generator. Reduces cycle time and limits limescale.
VACUUM PUMP
Double head vacuum pump with fractionated vacuum phases for Class B cycles.
WATER TANKS
Separate tanks for clean and used water. Easy access for maintenance. Water quality control included.
WATER SYSTEM
Two condensers separate air and water. Protects internal components.
WATER HANDLING
Quick connection system for easy filling and draining.
Technical Data
| Specification | Phoenix Blu 18 | Phoenix Blu 24 |
|---|---|---|
| Sterilization System | Steam Sterilizer (Autoclave) | Steam Sterilizer (Autoclave) |
| Medical Device Class | Class IIb | Class IIb |
| Class (UNI EN 13060) | Class B | Class B |
| External Dimensions | 462 × 445 × 600 mm (W × H × D) | 462 × 445 × 600 mm (W × H × D) |
| Weight | Net: 54 kg | Gross: 56 kg | Net: 56 kg | Gross: 59 kg |
| Sterilization Chamber | 255 × 360 mm (ø × D) | 255 × 460 mm (ø × D) |
| Trays (3 included) | 285 × 190 mm | 385 × 190 mm |
| Power Consumption | 1800 W | 1800 W |
| Voltage | 220 V | 220 V |
| Min. Support Surface Depth | 500 mm | 500 mm |
| Min. Support Surface Width | 460 mm | 460 mm |
| Min. Space for Water Loading | 165 mm | 165 mm |
| Sterilization Temperature | 121°C - 134°C | 121°C - 134°C |
| Maximum Temperature | 138°C | 138°C |
| Working Pressure | 121°C: 1.0-1.3 bar (STP) 134°C: 2.0-2.4 bar (STP) |
121°C: 1.0-1.3 bar (STP) 134°C: 2.0-2.4 bar (STP) |
| Max Working Empty | -0.9 bar (STP) | -0.9 bar (STP) |
| Maximum Pressure | 2.5 bar | 2.5 bar |
| Water Tank Capacity | Distilled: 4.6 L | Used: 5.0 L | Distilled: 4.6 L | Used: 5.0 L |
| Water Consumption per Cycle | 0.30-0.55 L (15 cycles) | 0.40-0.60 L (11 cycles) |
| Bacteriological Filter (Air) | ø 56 mm | 0.3 μm capacity | ø 56 mm | 0.3 μm capacity |
