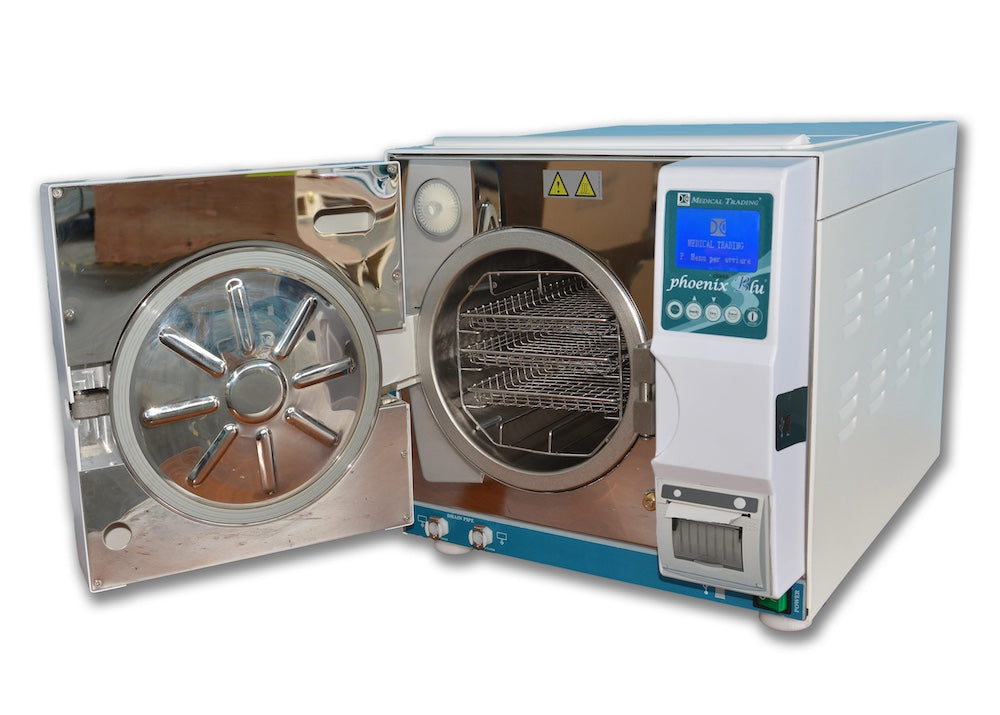

Guarisco Phoenix Blu 12L Autoclave With Printer
Phoenix Blu 12L Autoclave with Printer + Free Water Distiller
This is a Class B autoclave with a 12 liter chamber. It is compact but has the same functions as larger 18L and 24L models. It is suitable for dental, medical, veterinary, and beauty use. The built in printer gives you a report after every cycle.
The unit runs full Class B cycles, so it can sterilise solid, hollow, and porous instruments. Cycles are fast and reliable, with a typical time of around 15 minutes. The LCD screen shows pressure, temperature, and cycle data in real time. It also shows warnings and errors with a sound alert. The interface is simple and easy to use.
You can choose the drying time for each cycle. Options are 1, 5, or 10 minutes. This helps ensure instruments come out dry every time. The autoclave includes Helix, Bowie and Dick, and Vacuum test cycles. These help confirm that sterilisation is working correctly.
The unit has a built in printer and USB port. You can print records or save them digitally for tracking and audits.
MAIN FUNCTIONS
LCD DISPLAY
Shows cycle data in real time. You can see pressure, temperature, and status. It also shows warnings and errors with sound alerts.
STAND BY
Keeps the chamber warm between cycles. Saves 10 to 15 minutes and reduces moisture.
DRYING
You choose drying time: 1, 5, or 10 minutes. Tools come out dry.
STERILISATION CYCLES
Cycles at 121°C and 134°C. Up to 12 cycle options with adjustable drying.
TEST CYCLES
Includes Helix, Bowie and Dick, and Vacuum tests.
USB PORT AND PRINTER
USB saves cycle data automatically. Built in printer prints reports after each cycle.
STEAM GENERATOR
Fast external steam generator. Reduces cycle time and limits limescale.
VACUUM PUMP
Double head vacuum pump with fractionated vacuum phases for Class B cycles.
WATER TANKS
Separate tanks for clean and used water. Easy access for maintenance. Water quality control included.
WATER SYSTEM
Two condensers separate air and water. Protects internal components.
WATER HANDLING
Quick connection system for easy filling and draining.
Download Catalog here
Technical Data
| Medical Device Type | CLASS IIb |
|---|---|
| External Dimensions L x W x H | 462 x 445 x 600 mm |
| Weight | Net 54 Kg - Gross 56 Kg |
| Minimum Support Surface Depth | 460 mm |
| Minimum Support Surface Width | 460 mm |
| Sterilization Chamber Capacity | 18 liters |
| Sterilization Chamber Dimensions | Ø 255 x 360 mm Stainless Steel AISI 316 |
| Tray Dimensions | 285 x 190 mm |
| Sterilization Temperature | 134°C - 121°C |
| Maximum Temperature | 138°C |
| Sterilization Pressure | 121°C Cycles: 1.0 - 1.3 bar 134°C Cycles: 2.0 - 2.4 bar |
| Maximum Working Vacuum | -0.9 bar |
| Maximum Pressure | 2.4 bar |
| Power Supply Voltage | 220 V |
| Power Consumption | 1800 W |
| Tank Capacity (Inspectable Tanks) | Distilled water: 4.6 L Used water: 5.0 L |
| Water Consumption per Sterilization Cycle | 0.8 - 1.2 L |
| Bacterial Filter (Air Filter) | Diameter: ø 56 mm Filtration capacity: 0.3 μm |
